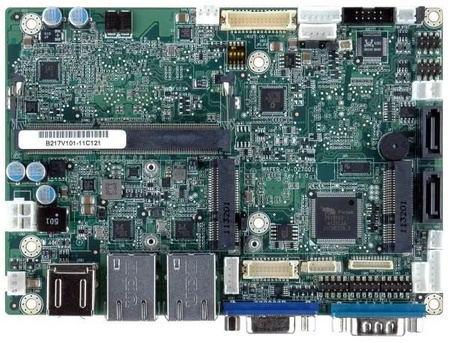

Name: WAFER-CV-D25501
Brand: IEI Integration Corp.

Features

3.5” form factor with Intel Atom D2550 dual-core processor supporting DDR3/DDR3L (1.35 V) memory
12 V only single voltage design for AT/ATX power
Open frame heatsink thermal design for fanless solutions
Flexible VGA, 18/24-bit LVDS with dual display support
Complete I/O: six USB, two SATA 3Gb/s, one mSATA, four COM and audio
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Intel dual core Atom D2550 1.86 GHz processor
Chipset: Intel NM10
BIOS: UEFI BIOS
Memory: 1 x 1066 MHz DDR3 SO-DIMM supporting up to 4 GB
Graphics: GMA 3650 at 640 MHz graphics core speed
Display Output:
Dual display supported
1 x VGA (It may appear the black screen when installed GMA driver at the first time under only VGA output dislay. There has one solution by press hot key "Alt + Ctrl + F1" to switch the screen to VGA monitor. It's a limitation by Intel's GMA driver.)
LVDS1 integrated in the D2550
Single-channel 24-bit LVDS, resolution support up to 1440x900
LVDS2 supports 24-bit dual-channel by CH7511B DP to LVDS converter, resolution
support up to 1920x1200
Ethernet: Dual GbE by Realtek RTL8111E controllers
I/O Interfaces:
1 x RS-422/485
1 x 6-pin wafer for PS/2 KB/MS
3 x RS-232
2 x SATA 3 Gb/s with 5V power connector
6 x USB 2.0
Super IO: Fintek F81866
Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
Expansions:
1 x Full-size PCIe Mini card slot supporting mSATA SSD storage
1 x Half-size PCIe Mini card slot
Audio: Realtek ALC662 HD audio codec
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Power Supply:
12 V only, AT/ATX support
Fan Connector:
1 x 3-pin CPU fan connector
1 x 3-pin system fan connector
Power Consumption:
12 V@1.53 A
(Intel D2550 1.86 GHz CPU with 1 GB DDR3 1066 MHz memory)
Operating Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air for
Operating Humidity: 5 ~ 95%, non-condensing
Weight: GW: 600 g/NW: 250 g
