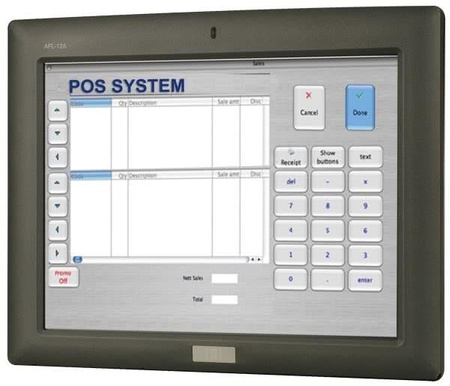

Features
- 12.1" TFT LED backlight LCD with resistive touch screen
- Fanless cooling system
- Selectable AT/ATX power mode through the switch inside the chassis
- One CompactFlash slot
- IP 64 compliant front panel
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(Suggest over 4 GB storage capacity)
- LCD Size: 12.1”
- Max Resolution: 1024 x 768
- Brightness (cd/m2): 500
- Contrast Ratio: 700 : 1
- LCD Color: 262 K
- Pixel Pitch (mm): 0.240 (H) x 0.240 (V)
- Viewing Angle (H-V): 160° / 160°
- Backlight MTBF: 50000 (LED Backlight)
- SBC Model: AFLMB-945GSE-N270-R10
- CPU: Intel Atom processor N270 1.6 GHz CPU
- Chipset: Intel 945GSE + ICH7M
- RAM: Supports one 400 MHz or 533 MHz DDR2 SO-DIMM (2 GB max.)
- I/O Ports:
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for Giga LAN
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack - SSD: CF Type II
- Watchdog Timer: Software programmable supports 1~ 255 sec. system reset
- Audio: AMP 1.5 W + 1.5 W (internal speaker)
- Wireless Connection: 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
- Drive Bay: 1 x 2.5” SATA HDD bay
- Construction Front Panel: ABS + PC Plastic front frame
- LED Function: 1 x Power on/off LED on front panel
- Mounting: Panel, Wall, Rack, Stand and Arm VESA 75 x 75 mm / 100 x 100 mm
- Front Panel Color: Gray 7539U
- Dimensions (WxHxD): 304 x 246 x 50 mm
- Operation Temperature:
0 ~ +40°C with SATA HDD
-10 ~ +50°C with CF Card or SATA interface 2.5” SSD HDD - Storage Temperature: -20 ~ +60°C
- N/G Weight: 1.8 Kg
- IP Level: Front Frame IP64
- Safety & EMC: CE / FCC / CB / CCC
- Touch Screen: 5-wire resistive type (touch controller IC is on board)
- Power Adapter:
P/N: 63000-FSP050DBAB1405-RS
50 W Power Adapter
Input: 90 ~ 264 Vac, 50/60 Hz
Output: 12 Vdc - Power Requirement: 12 Vdc
- Power Consumption: 32 W
- AFL-12A-N270/R/1G-R23 - 12.1” 500 cd/m², XGA fanless panel PC with Intel Atom N270 1.6 GHz, 802.11b/g/n wireless module, capitalize touch screen, 1 GB DDR2 533 MHz, R22
- AFLPK-12 - Panel Mounting Kit
- AFLWK-12 - Wall Mounting Kit
- AFLRK-12 - Rack Mounting Kit
- ARM-11-RS - Arm
- ARM-31-RS - Arm
- STAND-A12 - Stand
- STAND-POS12 - Stand
- STAND-100-RS - Stand
- VSTAND-A12 - Vstand
- IDD-930160-KIT - 9 ~ 30 Vdc to 12 Vdc Converter Module
- AFLP-12AMSI-U - Hybrid Card Reader
- AFLP-12AMSR-U - Magnetic Stripe Reader
- AUPS-A10-R10 - DC 12 V Input UPS (7.4 V 3800 mAH)
- AUPS-A20-R10 - DC 9 ~ 36V Input UPS (7.4 V 3800 mAH)
- AFL-BT-KIT03-R10 - Bluetooth V2.0+EDR
- AFLCF-12-N270-CE060-R21 - OS Win CE 6.0 (128 MB CF card)
- AFLCF-12-N270-XPE-R21 - OS Win XPE (1 GB CF card)
- AFLCF-12-N270-LNX-R21 - OS Linux (2 GB CF card)
- AFLCF-12-N270-WES7E-R21 - OS Win 7 Embedded (2 GB CF card)
Parametry techniczne:
| End of Life: | Tak |
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
