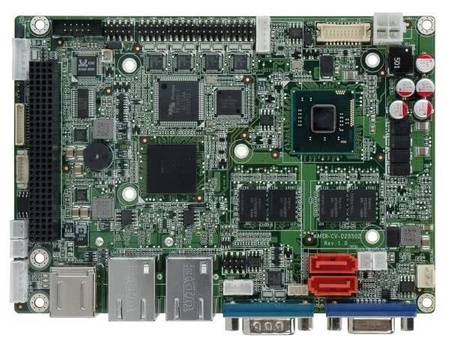

Name: WAFER-CV-D25502
Brand: IEI Integration Corp.

Features

3.5” form fator supports Intel Atom D2550 dual core processor with 2 GB DDR3 memory down
12 V only single voltage design for AT/ATX power
24-bit single channel LVDS via D2550 CPU support
Supporting PCI-104 and mSATA capabilities
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Intel Atom dual core D2550 1.86 GHz/ 10 W TDP processor
System Chipset: Intel NM10
BIOS: UEFI BIOS
Memory: On-board DDR3 1066 MHz 2 GB SDRAM
Graphic: GMA 3650 with 640 MHz graphic core speed
Display Out:
1 x VGA Integrated in Intel CPU (Resolution up to 1920x1200)
1 x LVDS integrated in D2550
Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900
Ethernet:
Dual Realtek RTL8111E PCIe GbE controllers, LAN1 with ASF2.0 supported
Super IO: Fintek F81866
I/O Interfaces:
5 x RS-232
1 x RS-422/485
1 x 6-pin wafer for PS/2 KB/MS
2 x SATA 3 Gb/s with 5 V power connector
4 x USB 2.0 (2 on rear I/O, 2 by pin header)
Expansion:
1 x full size PCIe Mini card slot with mSATA support
1 x PCI-104 slot supports PCI singal
Audio: Realtek ALC662 HD codec
Digital I/O:
8-bit programmable I/O (4-bit in/ 4-bit out)
Fan Connector:
1 x 3-pin (1x3) CPU fan connector (smart fan support)
Watchdog Timer: Software programmable support 1~255 sec. system reset
Power Supply: 12 V only, AT/ATX supported
Operating temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air
Operating Humidity: 5 ~ 95%, non-condensing
Power Consumption: 12 V@1.19 A
(1.86 GHz Intel Atom D2550 with on-board 1 GB 1066 MHz DDR3 SDRAM)
Dimensions: 146 x 102 mm
Weight: GW: 600 g/ NW: 250 g

Ordering Information

WAFER-CV-D25502-R10 - 3.5” SBC supports Intel Atom D2550 1.86 MHz processor with 2 GB DDR3 memory down, VGA/LVDS, Dual GbE, PCI/104, USB 2.0, SATA 3 GB/s and Audio
