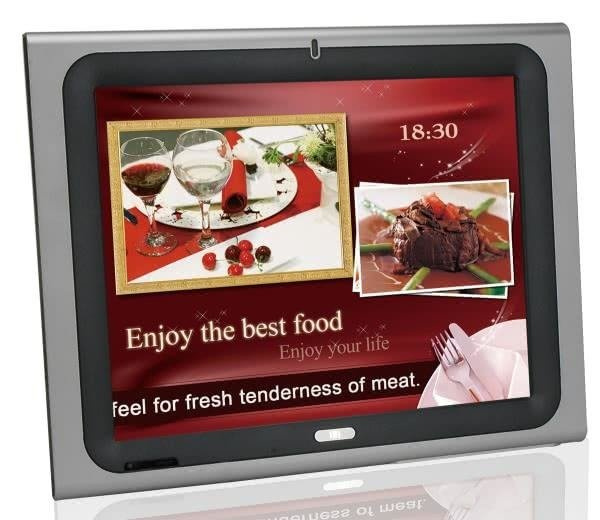

Komputer panelowy 15" 1024x768 350 cd/m2 z procesorem Intel Core i3-350M 2.26 GHz, 2 GB DDR3, rezystancyjnym ekranem dotykowym, VGA/HDMI, 1 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 4 x USB 2.0 i audio
Features
Features
- 15" TFT LCD with resistive touch screen
- System memory up to 2 GB RAM
- Built-in 802.11b/g (or 802.11 b/g/n) wireless LAN
- Selectable AT/ATX power mode through the switch inside the chassis
- Built-in two speakers
- One CompactFlash slot
- IP 64 compliant front panel
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(over 4GB storage capacity is suggested)
- LCD Size: 15”
- Max Resolution: 1024 x 768
- Brightness (cd/m²): 350
- Contrast Ratio: 700:1
- LCD Color: 262K
- Pixel Pitch (mm): 0.297(H) x 0.297(V)
- Viewing Angle (H-V): 140º/125º
- Backlight MTBF: 50000
- SBC Model: AFLMB2-HM55-R10
- CPU: Socket G (PGA989A) Intel Core i series
- Chipset: Intel HM55
- RAM: Two 204-pin 800/1066 MHz DDR3 dual-channel SO-DIMMs supported (system max. 8 GB)
- I/O Ports:
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (line-out)
1 x VGA Port
1 x Power Jack
1 x HDMI Port - SSD: SATA SSD
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Audio: AMP 3 W + 3 W (internal speakers)
- Wireless Connection: 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
- Drive Bay: 1 x 2.5" SATA HDD bay
- Construction Front Panel: ABS + PC Plastic front frame
- Membrane Keypad: LCD on/off, Brightness up/down, Volume up/down (5 keys)
- LED Function: 1 x Power on/off LED on front panel
- Mounting: Panel, Wall, Rack, Stand and Arm, VESA 100 x 100 mm
- Front Panel Color: Sliver (877U) & Gray (ABSA2037)
- Dimensions (WxHxD): 394 x 309 x 66 mm
- Operation Temperature: 0 ~ +50°C
- Storage Temperature (°C): -20 ~ +60°C
- N/G Weight: 5.8 Kg
- IP Level: Front Frame IP64
- Safety & EMC: CE / FCC / CB / CCC
- Touch Screen: 5-wire resistive type (Touch controller IC is on board)
- Power Adapter:
P/N: 63000-FSP096AHB-RS
96 W Power Adapter
Input: 90 ~ 264 Vac, 50/60Hz / Output: 12 Vdc - Power Requirement: 12 Vdc
- Power Consumption: 80 W
- AFL-15i-HM55i3-35/R/2G-R20 - 15" 350cd/m² XGA panel PC with Intel Core i3-350M 2.26 G CPU, 2 GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS
- AFLPK-15B - Panel Mounting Kit
- AFLWK-19 - Wall Mounting Kit
- AFLRK-15B-R11 - Rack Mounting Kit
- ARM-11-RS - Arm
- ARM-31-RS - Arm
- STAND-A19 - Stand
- STAND-B19 - Stand
- STAND-POS15 - Stand
- STAND-210-R11 - Stand
- AFLP-17AMSI-U - Hybrid Card Reader
- AFLP-17AMSR-U - Magnetic Stripe Reader
- AUPS-B10-R10 - DC 12 V Input UPS (14.8V 3800 mAH)
- AUPS-B20-R10 - DC 9~36 V Input UPS (14.8 V 3800 mAH)
- AFL-BT-KIT01-R10 - Bluetooth V2.0+EDR
- AFLSD-15-HM55-2G-XPE-R20 - OS Win XPE (2 GB SATA SSD)
- AFLSD-15-HM55-4G-WES7E-R20 - OS Win 7 Embedded (4 GB SATA SSD)
Parametry techniczne:
End of Life: | Tak |
