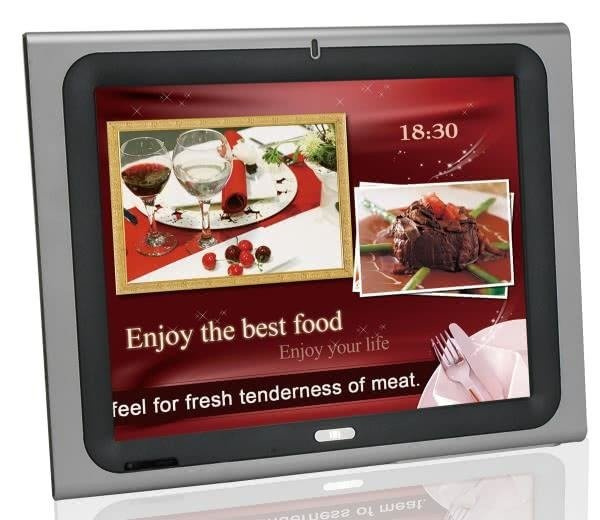

Name: AFL-15i-HM55i5-52/R/2G (End of Life)
Brand: IEI Integration Corp.

Komputer panelowy 15" 1024x768 350 cd/m2 z procesorem Intel Core i5-520M 2.4 GHz, 2 GB DDR3, rezystancyjnym ekranem dotykowym, VGA/HDMI, 1 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 4 x USB 2.0 i audio

Features

15" TFT LCD with resistive touch screen
System memory up to 2 GB RAM
Built-in 802.11b/g (or 802.11 b/g/n) wireless LAN
Selectable AT/ATX power mode through the switch inside the chassis
Built-in two speakers
One CompactFlash slot
IP 64 compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery
(over 4GB storage capacity is suggested)

Specifications

LCD Size: 15”
Max Resolution: 1024 x 768
Brightness (cd/m²): 350
Contrast Ratio: 700:1
LCD Color: 262K
Pixel Pitch (mm): 0.297(H) x 0.297(V)
Viewing Angle (H-V): 140º/125º
Backlight MTBF: 50000
SBC Model: AFLMB2-HM55-R10
CPU: Socket G (PGA989A) Intel Core i series
Chipset: Intel HM55
RAM: Two 204-pin 800/1066 MHz DDR3 dual-channel SO-DIMMs supported (system max. 8 GB)
I/O Ports:
1 x RS-232 COM Port
1 x RS-232/422/485 COM Port
2 x RJ-45 for GbE
4 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Audio Port (line-out)
1 x VGA Port
1 x Power Jack
1 x HDMI Port
SSD: SATA SSD
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Audio: AMP 3 W + 3 W (internal speakers)
Wireless Connection: 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
Drive Bay: 1 x 2.5" SATA HDD bay
Construction Front Panel: ABS + PC Plastic front frame
Membrane Keypad: LCD on/off, Brightness up/down, Volume up/down (5 keys)
LED Function: 1 x Power on/off LED on front panel
Mounting: Panel, Wall, Rack, Stand and Arm, VESA 100 x 100 mm
Front Panel Color: Sliver (877U) & Gray (ABSA2037)
Dimensions (WxHxD): 394 x 309 x 66 mm
Operation Temperature: 0 ~ +50°C
Storage Temperature (°C): -20 ~ +60°C
N/G Weight: 5.8 Kg
IP Level: Front Frame IP64
Safety & EMC: CE / FCC / CB / CCC
Touch Screen: 5-wire resistive type (Touch controller IC is on board)
Power Adapter:
P/N: 63000-FSP096AHB-RS
96 W Power Adapter
Input: 90 ~ 264 Vac, 50/60Hz / Output: 12 Vdc
Power Requirement: 12 Vdc
Power Consumption: 80 W

Ordering Information

AFL-15i-HM55i5-52/R/2G-R20 - 15" 350 cd/m² XGA panel PC with Intel Core i5-520M 2.4 G CPU, 2 GB DDR3 RAM, 802.11 b/g/n wireless module, touch screen, R20, RoHS
