WAFER-CV-N28002

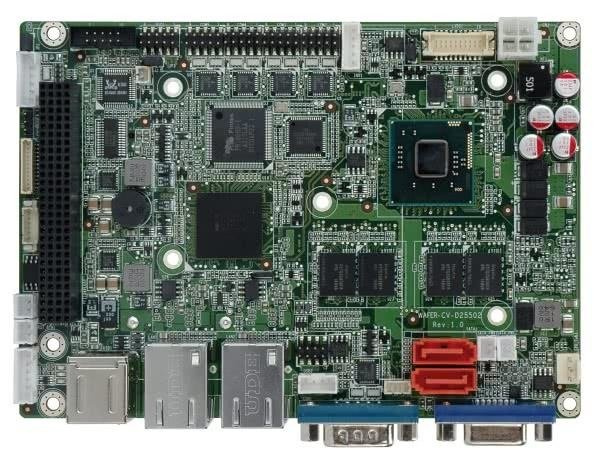

  • Komputer jednopłytkowy 3,5" z procesorem Intel Dual-Core Atom N2800 1.86 GHz, VGA/LVDS, 2 x GbE, 5 x RS-232, 1 x RS-422/485, 4 x USB 2.0, 2 x SATA-2 i HD-audio; temp. pracy -20 ~ +75°C (min. partia >= 100 szt.)
  • WAFER-CV-N28002
Features
  • 3.5” form fator supports Intel Atom N2800 dual core processor with 2 GB DDR3 memory down
  • 12 V only single voltage design for AT/ATX power
  • 18-bit single channel via N2800 CPU support
  • Supporting PCI-104 and mSATA capabilities
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
  • CPU: Intel Atom dual core N2800 1.86 GHz/ 6.5 W TDP processor
  • System Chipset: Intel NM10
  • BIOS: UEFI BIOS
  • Memory: On-board DDR3 1066 MHz 2 GB SDRAM
  • Graphic: GMA 3650 with 640 MHz graphic core speed
  • Display Out:
    1 x VGA Integrated in Intel CPU (Resolution up to 1920x1200)
    Single-channel 18-bit LVDS by N2800, resolution support up to 1366x768
  • Ethernet:
    Dual Realtek RTL8111E PCIe GbE controllers, LAN1 with ASF2.0 supported
  • Super IO: Fintek F81866
  • I/O Interfaces:
    5 x RS-232
    1 x RS-422/485
    1 x 6-pin wafer for PS/2 KB/MS
    2 x SATA 3 Gb/s with 5 V power connector
    4 x USB 2.0 (2 on rear I/O, 2 by pin header)
  • Expansion:
    1 x full size PCIe Mini card slot with mSATA support
    1 x PCI-104 slot supports PCI singal
  • Audio: Realtek ALC662 HD codec
  • Digital I/O:
    8-bit programmable I/O (4-bit in/ 4-bit out)
  • Fan Connector:
    1 x 3-pin (1x3) CPU fan connector (smart fan support)
  • Watchdog Timer: Software programmable support 1~255 sec. system reset
  • Power Supply: 12 V only, AT/ATX supported
  • Operating temperature:
    -20 ~ +70°C with free air,
    -20 ~ +75°C with force air
  • Operating Humidity: 5 ~ 95%, non-condensing
  • Power Consumption: 12 V@0.95 A
    (1.6 GHz Intel Atom N2600 with on-board 2 GB 1066 MHz DDR3 SDRAM)
  • Dimensions: 146 x 102 mm
  • Weight: GW: 600 g/ NW: 250 g
Ordering Information
  • WAFER-CV-N28002-R10 - 3.5” SBC supports Intel Atom N2800 1.86 MHz processor with 2 GB DDR3 memory down, VGA/LVDS, Dual GbE, PCI/104, USB 2.0, SATA 3GB/s and Audio (by project support, MOQ 100pcs / lot)
Optional Accessories
  • 32000-070301-RS - Dual ports USB cable
  • 32200-074800-RS - RS-422/485 cable
