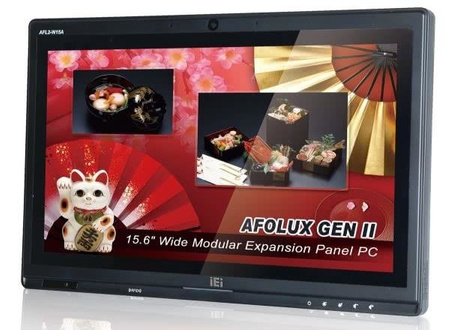

AFL2-W15A-N270/PC/1G (End of Life)

Bezwentylatorowy komputer panelowy 15,6" 1366x768 300 cd/m2 z procesorem Intel Atom N270 1.6 GHz, 1 GB DDR2, projekcyjno-pojemnościowym ekranem dotykowym, 2 M kamerą i mikrofonem, VGA, 1 x RS-232, 1 x RS-232/422/485, 1 x GbE, 1 x 802.11b/g/n, 2 x USB 2.0 i HD-audio

---

Features

• Flat-bezel LCD with LED backlight
• Intel Atom processor N270 1.6 GHz processor
• One 400 MHz or 533 MHz DDR2 SO-DIMM (max. 2GB)
• Projected capacitive type flat touch screen supported
• Wi-Fi 802.11b/g/n supported
• Optional EM or Mifare RFID reader
• Built-in 2 M pixels webcam
• Built-in two 1.5W speakers and microphone
• IP 64 compliant front panel

Specifications

• LCD Specifications


• Size: Wide 15.6” TFT LCD
• Resolution: 1366 x 768
• Brightness (cd/m2): 300
• Contrast Ratio: 500:1
• LCD Color: 16.7M
• Pixel Pitch (mm): 0.252 (H) x 0.252 (V)
• Viewing Angle (H-V): 170° / 160°
• Backlight MTBF: 50000 hrs (LED backlight)


• Touch


• Touch Screen: projected capacitive type with USB interface
• Touch Controller: EETI EXC7200 & EXC5404


• System


• CPU: Intel Atom processor N270 1.6 GHz CPU
• Chipset: Intel 945GSE + ICH7M
• RAM: Support one 400 MHz or 533 MHz DDR2 SO-DIMM (max. 2 GB)
• Ethernet: Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
• Audio Codec: Realtek ALC888 HD Audio codec
• Storage:
  • CF Type II
  • 1 x 2.5” SATA HDD Bay
• Watchdog Timer: Software programmable supports 1~255 sec. system reset
• Input / Output:
  • 1 x RS-232 COM port
  • 1 x RS-232/422/485 COM port
  • 1 x RJ-45 for GbE LAN
  • 2 x USB 2.0
  • 1 x Power switch
  • 1 x Reset button
  • 1 x Audio port (Line out)
  • 1 x VGA
  • 1 x Power jack
  • 1 x External SATA


• Other Features


• Audio: AMP 1.5 W + 1.5 W (internal speaker)
• Camera: 2 M pixels with low light function
• RFID Reader: EM 125 KHz or Mifare 13.56 MHz card reader (optional)
• OSD Function: LCD on/off, brightness up/down, volume up/down
• Ambient Light Sensor: Yes
• Infrared Remote Controller: LCD on/off, brightness up/down, volume up/down
• Touch Screen: Projected capacitive type flat touch screen


• Connectivity


• Wireless: IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10) Telec certified


• Physical


• Construction Front Panel: PC + ABS plastic front frame
• Mounting: VESA 100 x 100 mm
• Color: Black C
• Dimensions (WxHxD): 400 x 267 x 54 mm
• Weight (N/G): 3.8 kg


• Environment


• Operating Temperature (Ambient with air flow): -10 ~ +50°C
• Storage Temperature: -20 ~ +60°C
• Humidity: 10 ~ 95% (non-condensing)
• IP Level: IP 64 compliant front panel
• Safety & EMI: CE / FCC


• Power


• Power Supply: 60 W power adapter
  Input: 90 ~ 264 Vac, 50/60 Hz; Output: 12 Vdc
• Power Requirement: 12 Vdc
• Power Consumption: 12 V@4.25 A
  (Intel Atom N270 CPU with 667 MHz 2 GB DDR2 memory)

Ordering Information

• AFL2-W15A-N270/PC/1G-R20 - 15.6” 300cd/m² WXGA+ fanless panel PC with Intel Atom N270 1.6 GHz, 802.11b/g/n wireless module, projected capacitive touchscreen, 2 M camera, microphone, 1 GB DDR2 RAM, without expansion, R20

Optional Accessories

• AFL2PK-W15A-R10 - Panel Mounting Kit


• AFLWK-19B - Wall Mounting Kit


• ARM-11-RS - Arm


• ARM-31-RS - Arm


• STAND-A19-RS - Stand


• STAND-A21-R10 - Stand


• STAND-C19-R10 - Stand


• STAND-210-R11 - Stand


• AFL2-EM-RFID-KIT02-R10 - EM RFID Reader


• AFL2-MF-RFID-KIT03-R10 - Mifare RFID Reader


• AFL2CF-W15-N270-CE060-R10 - OS Win CE 6.0 (128 MB CF card)


• AFL2CF-W15-N270-XPE-R10 - OS Win XPE (1 GB CF card)


• AFL2CF-W15-N270-WES7P-R20 - OS Win 7 (4 GB CF card) - for Projected Capacitive Touch


• AFL2SD-W15-N270-WES7P-R20 - OS Win 7 (4 GB SATA SSD module) - for Projected Capacitive Touch


• AUPS-B10-R10 - DC 12 V Input 100 W UPS module with 3800 mAH (VESA 100, DC 12 V input, 12 V output)


• AUPS-B20-R10 - DC 9~36 V Input 100 W UPS module with 3800 mAH (VESA 100, DC 9~36 V input, 12 V output)
