Karta PCI Express PoE - GPOE-4P

  • Karta PCI Express Power over Ethernet, 4-port 1000 Base(T), zgodna z 802.3at/af, niskoprofilowa, RoHS

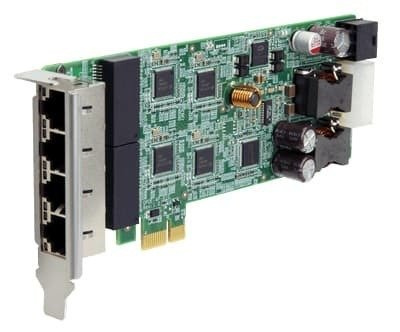

  • Karta PCI Express PoE - GPOE-4P





Niskoprofilowa karta PCI Express x1 Power over Ethernet, posiada 4 złącza RJ-45 PoE które mogą pracować w trybie 4 portowym IEEE 802.3af (15.4W/52V na port) lub trybie 2 portowym IEEE 802.3at (30W/52V na port). Temperatura pracy: -10°C ~ 70°C. Posiada dwa wejścia zasilania 12V ~ 24V DC (Uwaga! Nie mogą być używane jednocześnie.).

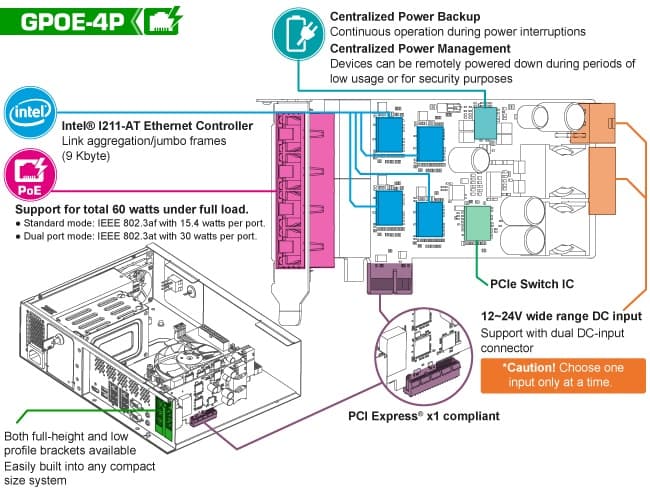

Cechy

  • Złącze PCI Express® x1
  • Całkowita moc 60W przy pełnym obciążeniu
  • Obsługa agregacji linków/ramek jumbo (9 kilobajtów)
  • Zasilanie 12V ~ 24V DC



Aplikacje

Machine Vision

With PoE technology, users can easily connect various PoE PD supported IP camera to the control system through the standard CAT-5/CAT-6 cable (up to 100 meters) to transfer both electrical power and data at the same time. In this application, users can lower the difficulty of routing to avoid the risk of power adapter failure, and easily build the system to act as PSE, allowing the entire production process to be monitored and controlled from A to Z

Access Control

Access control system can be easily developed by connecting PoE-capable devices like door controller, locking system and RFID reader. Combining power supply and data transmission in a single cable can save both cost and time on system installation. It is also easy to integrate IP-based system into the existing IP infrastructure.

In-Vehicle System

The GPOE series can be easily added into in-vehicle control system and connect to various devices like surveillance camera, bus payment terminal or in-bus digital signage system. Both data and electrical power can run on standard CAT-5/CAT-6 cable to lower the difficulty of routing and avoid the risk of power adapter failure.

Dimension

Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.

Gwarancja standardowa 24 miesiące
