Features
- Intel Atom processor N270 1.6 GHz CPU for ultra low voltage fan-less support
- Support dual display for VGA+LVDS
- System memory supports up to 2GB/DDR2 533 MHz
- Support six COM , six USB2.0 , two SATA and CF Type II socket
- Thermal design for easy assembly
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom Processor N270 1.6 GHz with 533 MHz FSB
- System Chipset: Intel 945GSE + Intel 82801GBM + ICH7M
- BIOS: AMI BIOS
- Memory: One 200-pin 400/533 MHz DDR2 SDRAM SO-DIMM supported
(system max. 2 GB) - Ethernet: Dual PCIe Realtek 8111CP GbE chipset
- I/O Interface:
6 x USB 2.0
2 x SATA
5 x RS-232
1 x RS-232/422/485
1 x PS/2 for KB/MS
1 x CF Type II - Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
- Expansion:
1x PCI Express Mini card - Audio: Realtek ALC655 with AC'97 codec
- Display Interface:
Intel Graphics media accelerator 950
VGA integrated in Intel 945GSE
18-bit dual-channel LVDS integrated in Intel 945GSE - Power Supply: 5 V only, 12 V for LCD / System FAN, AT/ATX support
- Super IO: ITE IT8718
- Watchdog Timer: Software programmable 1-255 sec. by super I/O
- Temperature: Operation: -20 ~ +70°C
- Humidity: Operation: 5% ~95 non-condensing
- Power Consumption: 5 V@2.94 A
(Intel Atom N270 1.6 G with 1 GB DDR2) - Dimensions: 146 x 102 mm
- Weight: GW: 700 g / NW: 230 g

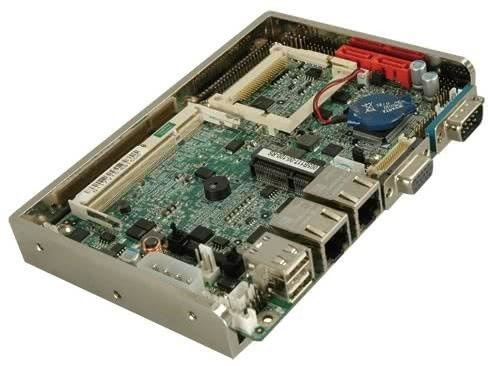

- WAFER-945GSE-N270W-R20 - 3.5" SBC with Intel Atom Processor N270 1.6 G, VGA/LVDS, Dual GbE, CFII, USB, SATA, -20~70°C
- 32000-070301-RS - Dual port USB cable
- 32200-026500-RS - RS-232/422/485 cable
- 32100-052100-RS - ATX power cable
- 32100-088600-RS - SATA power cable
