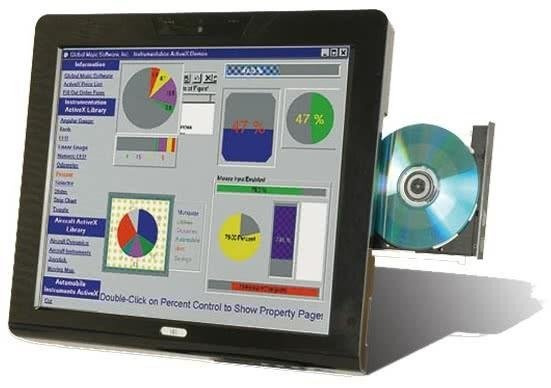

AFL-17D-N270/R/1G (End of Life)

Bezwentylatorowy komputer panelowy 17" 1280x1024 300 cd/m2 z procesorem Intel Atom N270 1.6 GHz, 1 GB DDR2, rezystancyjnym ekranem dotykowym, 300 K kamerą, mikrofonem, VGA, 1 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 4 x USB 2.0 i audio

---

Specifications

• LCD Size: 17"
• Max Resolution: 1280 x 1024
• Brightness (cd/m2): 300
• Contrast Ratio: 800 : 1
• LCD Color: 16.7M
• Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
• Viewing Angle (H-V): 160º / 160º
• Backlight MTBF: 50000 hrs
• SBC Model: AFLMB2-N270-R10
• CPU: Intel Atom processor N270 1.6 GHz CPU
• Chipset: Intel 945GSE + ICH7M
• RAM: Supports one 400 MHz or 533 MHz DDR2 SO-DIMMs (2 GB Max.)
• I/O Ports:
  1 x RS- 232 COM Port
  1 x RS-232/422/485 COM Port
  2 x RJ-45 for Giga LAN
  4 x USB 2.0
  1 x Power Switch
  1 x Reset Button
  1 x Audio Port
  1 x VGA Port
  1 x Power Jack
• SSD: CF Type II
• Watchdog Timer: Software programmable supports 1 ~ 255 sec. system reset
• Audio: AMP 3W + 3W (internal speakers)
• Camera Module: 300K pixel with digital microphone
• Wireless Connection: 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface)
• Drive Bay:
  1 x 2.5" SATA HDD bay,
  1 x Slim Type CD-ROM bay
• Construction Front Pane:  ABS + PC Plastic front frame
• Membrane Keypad: LCD On/Off, Brightness Up/Down, Volume Up/Down (5 keys)
• LED Function: 1 x Power on/off LED on front panel
• Mounting: Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
• Front Panel Color: Black C
• Dimensions (WxHxD): 410 x 349 x 83 mm

• Operation Temperature:
  0 ~ +40°C with SATA HDD
  -10 ~ +50°C with CF Card or SATA interface 2.5” SSD HDD
• Storage Temperature: -20 ~ 60°C
• N/G Weight: 6.2 Kg
• IP Level: Front Frame IP64
• Safety & EMC: CE / FCC / CB / CCC
• Touch Screen: 5-wire resistive type (touch controller IC is on board)
• Power Adapter:
  P/N: 63000-FSP084DMBA1308-RS
  84 W Power Adapter
  Input: 90 ~ 264 Vac, 50/60 Hz
  Output: 12 Vdc
• Power Requirement: 12 Vdc
• Power Consumption: 58 W

Ordering Information

• AFL-17D-N270/R/1G-R23 - 17" 300 cd/m² SXGA fanless panel PC with Intel Atom N270 1.6 GHz CPU, 1 GB DDR2 RAM, 802.11 b/g/n wireless module, touch screen, 300 K camera, microphone, R23

Optional Accessories

• AFLPK-17D - Panel Mounting Kit


• AFLWK-19 - Wall Mounting Kit


• AFLRK-17D-R11 - Rack Mounting Kit


• ARM-11-RS - Arm


• ARM-31-RS - Arm


• STAND-A19 - Stand


• STAND-B19 - Stand


• STAND-210-R11 - Stand


• AUPS-B10-R10 - DC 12 V input, 12 V output 100 W UPS module with 3800 mAH  (VESA 100)


• UPS AUPS-B20-R10 - DC 9 ~ 36 V input, 12 V output 100 W UPS module with 3800 mAH (VESA 100)


• AFL-BT-KIT04-R10 - Bluetooth V2.0+EDR


• AFLCF-17-N270-CE060-R23 - OS Win CE 6.0 (128 MB CF card)
  Note: Win CE application without digital microphone function


• AFLCF-17-N270-XPE-R23 - OS Win XPE (1 GB CF card)


• AFLCF-17-N270-LNX-R23 - OS LINUX (2 GB CF card)


• AFLCF-17-N270-WES7E-R23 - OS Win 7 Embedded (2 GB CF card)
