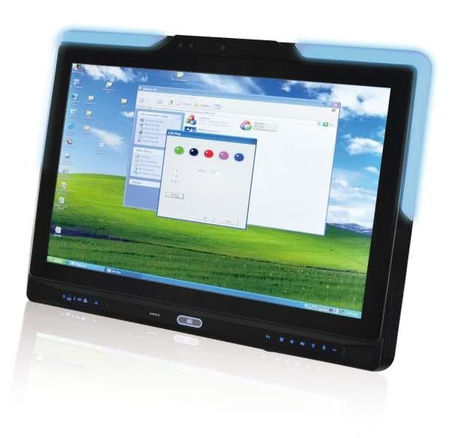

Komputer panelowy W18.9" 1440x900 250 cd/m2 z procesorem Intel Pentium Dual Core G6xxT (powyżej 2.2 GHz), 4 GB DDR3, projekcyjno-pojemnościowym ekranem dotykowym, 2 M kamerą, mikrofonem, VGA/HDMI, 2 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 2 x USB 3.0, 3 x USB 2.0 i HD-audio
Features
- Intel Pentium processor
- Two 204-pin DDR3 SO-DIMM slot (system max. 16 GB) preinstalled with 4 GB (2 GB x 2)
- Projected capacitive touchscreen supported
- Wi-Fi 802.11b/g/n 2T2R high speed wireless
- EM or Mifare RFID reader
- Built-in 2-megapixel webcam with AF, AE and AWB capabilities
- Built-in two 2 W speakers and microphone
- IP 64 compliant front panel
- Auto dimming control
- Light fanless design
- Type K thermocouple temperature sensor
- Wide range 9 ~ 36 Vdc input
Specifications
- LCD Specifications
- Size: W18.9” (16:10)
- Resolution: 1440 (W) X 900 (H)
- Brightness (cd/m2): 250
- Contrast Ratio: 1000:1
- LCD Color: 16.7 M
- Pixel Pitch (mm): 0.2835 (H) x 0.2835 (V)
- Viewing Angle (H-V): 170° / 160°
- Backlight MTBF: 50,000 (LED backlight)
- Touch
- Touch Screen: projected capacitive type with USB interface
- Touch Controller: EETI EXC7200 & EXC5404
- System
- CPU: 2nd/3rd Generation Intel Pentium Dual Core G6xxT (Above 2.2 GHz) processor
- Chipset: Intel H61
- RAM: Support two 204-pin DDR3 SO-DIMM slot (max. 16 GB)
preinstalled with 4 GB (2 GB x 2) - Ethernet: Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
- Audio Codec: Realtek ALC892 HD Audio codec
- HDD: 2.5" SATA 3 Gb/s HDD bay
- CD-ROM: 1 x Slim Type CD-ROM bay
- Input / Output:
• 2 x RS-232 (DB-9 connector)
• 1 x RS-422/485 (DB-9 connector)
• 2 x GbE LAN (one on the bottom, one on the left)
• 2 x USB 3.0
• 3 x USB 2.0 (two on the bottom, one on the left)
• 1 x Mini USB port on front panel
• 1 x MicroSD card slot on front panel
• 1 x Line out (on the left)
• 1 x Mic (on the left)
• 1 x VGA port (DB-15 connector)
• 1 x HDMI port
• 1 x Power switch
• 1 x AT/ATX switch
• 1 x Reset button
• 1 x Clear CMOS button
• 1 x 9 ~ 36 Vdc input jack
• 1 x Type K connector - Expansion Interface: 1 x PCIe Mini slot reserved
- Other Features
- Audio: AMP 2 W + 2 W (internal speaker)
- Camera: 2 M pixels with low light function
- RFID Reader: EM 125 KHz or Mifare 13.56 MHz card reader (optional)
- MSR Card Reader: MSR card reader (optional)
- TPM: Reserved by pin-header
- OSD Function: LCD on/off, brightness up/down, volume up/down, Hot Key
- Ambient Light Sensor: Yes
- Infrared Remote Controller: Yes
- LED Light Bar: No
- System Cooling: Light fanless (smart fan operates above default temperature setting)
- Connectivity
- Wireless: IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
- Bluetooth: Bluetooth V2.0+EDR with USB interface (optional)
- Physical
- Construction Front Panel: PC + ABS Plastic
- Mounting: Panel, Wall, Stand, Arm VESA 100 x 100 mm
- Color: Black
- Dimensions (WxHxD): 488 x 361 x 65 mm
- Weight (N/G): 7.3 kg / 10 kg
- Environment
- Operating Temperature (Ambient with air flow): -20 ~ +40°C
- Storage Temperature: -20 ~ +60°C
- Humidity: 10 ~ 95% (non-condensing)
- IP Level: IP 64 compliant front panel
- Safety&EMC: CE / FCC
- Power
- Power Supply: 120 W power adapter,
Input:100 ~ 240 Vac, 50 / 60 Hz, Output: 19 Vdc - Power Requirement: 9 ~ 36 Vdc
- Power Consumption: 19 V@5.58 A
(Intel Core i3-2100T CPU with 4 GB 1333 MHz 4 GB DDR3 memory)
Ordering Information
- AFL2-W19AB-H61-P/PC-R12 - 18.9" 250 cd/m² WXGA+ panel PC, Pentium Dual Core G6xxT CPU (Above 2.2 GHz), TDP 35 W, 4 GB DDR3 (2 GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2 M camera, microphone, without LED bar, R11
Optional Accessories
- AFL2PK-W19A - Panel Mounting Kit
- AFLWK-19B - Wall Mounting Kit
- ARM-31-RS - Arm
- STAND-A19-RS - Stand
- STAND-A21-R10 - Stand
- STAND-C19-R10 - Stand
- STAND-210-R11 - Stand
- AFL2P-W19AMSI-U-R10 - Hybrid Card Reader
- AFL2P-W19AMSR-U-R10 - Magnetic Stripe Reader
- AFL2-DVD-KIT01-R10 - Slim DVD Burner
- AFL2-BT-KIT01-R11 - Bluetooth Module Kit
- TPM-IN01-R11 - Trusted Platform Module (TPM)
- AFL2-EM-RFID-KIT01-R10 - EM RFID Reader
- AFL2-MF-RFID-KIT01-R11 - Mifare RFID Reader
- AFL2-W19A-H61-XPE-R10 - OS Win XPE (CD-ROM)
- AFL2-W19A-H61-LNX-R10 - OS Linux (CD-ROM)
- AFL2-W19A-H61-WES7P-R10 - OS Win 7 Embedded (DVD-ROM) - for Projected Capacitive Touch
