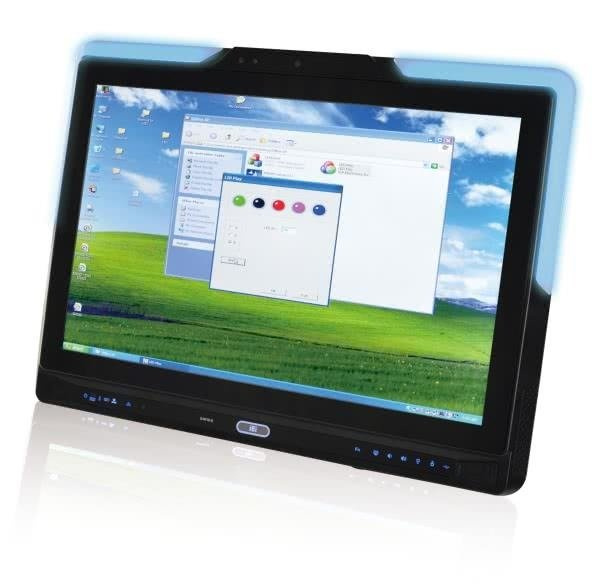

AFL2-W19AB-H61-i3/PC (End of Life)

Komputer panelowy W18.9" 1440x900 250 cd/m2 z procesorem Intel i3 Dual Core 2xxxT (powyżej 2.5 GHz), 4 GB DDR3, projekcyjno-pojemnościowym ekranem dotykowym, 2 M kamerą, mikrofonem, VGA/HDMI, 2 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 2 x USB 3.0, 3 x USB 2.0 i HD-audio

Features

• Intel Core i3 processor
• Two 204-pin DDR3 SO-DIMM slot (system max. 16 GB) preinstalled with 4 GB (2 GB x 2)
• Projected capacitive touchscreen supported
• Wi-Fi 802.11b/g/n 2T2R high speed wireless
• EM or Mifare RFID reader
• Built-in 2-megapixel webcam with AF, AE and AWB capabilities
• Built-in two 2 W speakers and microphone
• IP 64 compliant front panel
• Auto dimming control
• Light fanless design
• Type K thermocouple temperature sensor
• Wide range 9 ~ 36 Vdc input

Specifications

• LCD Specifications


• Size: W18.9” (16:10)
• Resolution: 1440 (W) X 900 (H)
• Brightness (cd/m2): 250
• Contrast Ratio: 1000:1
• LCD Color: 16.7 M
• Pixel Pitch (mm): 0.2835 (H) x 0.2835 (V)
• Viewing Angle (H-V): 170° / 160°
• Backlight MTBF: 50,000 (LED backlight)


• Touch


• Touch Screen: projected capacitive type with USB interface
• Touch Controller: EETI EXC7200 & EXC5404


• System


• CPU: 2nd/3rd Generation Intel Core i3 Dual Core 2xxT (Above 2.5 GHz) processor
• Chipset: Intel H61
• RAM: Support two 204-pin DDR3 SO-DIMM slot (max. 16 GB)
  preinstalled with 4 GB (2 GB x 2)
• Ethernet: Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
• Audio Codec: Realtek ALC892 HD Audio codec
• HDD: 2.5" SATA 3 Gb/s HDD bay
• CD-ROM: 1 x Slim Type CD-ROM bay
• Input / Output:
  • 2 x RS-232 (DB-9 connector)
  • 1 x RS-422/485 (DB-9 connector)
  • 2 x GbE LAN (one on the bottom, one on the left)
  • 2 x USB 3.0
  • 3 x USB 2.0 (two on the bottom, one on the left)
  • 1 x Mini USB port on front panel
  • 1 x MicroSD card slot on front panel
  • 1 x Line out (on the left)
  • 1 x Mic (on the left)
  • 1 x VGA port (DB-15 connector)
  • 1 x HDMI port
  • 1 x Power switch
  • 1 x AT/ATX switch
  • 1 x Reset button
  • 1 x Clear CMOS button
  • 1 x 9 ~ 36 Vdc input jack
  • 1 x Type K connector
• Expansion Interface: 1 x PCIe Mini slot reserved


• Other Features


• Audio: AMP 2 W + 2 W (internal speaker)
• Camera: 2 M pixels with low light function
• RFID Reader: EM 125 KHz or Mifare 13.56 MHz card reader (optional)
• MSR Card Reader: MSR card reader (optional)
• TPM: Reserved by pin-header
• OSD Function: LCD on/off, brightness up/down, volume up/down, Hot Key
• Ambient Light Sensor: Yes
• Infrared Remote Controller: Yes
• LED Light Bar: No
• System Cooling: Light fanless (smart fan operates above default temperature setting)


• Connectivity


• Wireless: IEEE 802.11b/g/n 2T2R module (WIFI-RT5392-SB-R10)
• Bluetooth: Bluetooth V2.0+EDR with USB interface (optional)


• Physical


• Construction Front Panel: PC + ABS Plastic
• Mounting: Panel, Wall, Stand, Arm VESA 100 x 100 mm
• Color: Black
• Dimensions (WxHxD): 488 x 361 x 65 mm
• Weight (N/G): 7.3 kg / 10 kg


• Environment


• Operating Temperature (Ambient with air flow): -20 ~ +40°C
• Storage Temperature: -20 ~ +60°C
• Humidity: 10 ~ 95% (non-condensing)
• IP Level: IP 64 compliant front panel
• Safety&EMC: CE / FCC


• Power


• Power Supply: 120 W power adapter,
  Input:100 ~ 240 Vac, 50 / 60 Hz, Output: 19 Vdc
• Power Requirement: 9 ~ 36 Vdc
• Power Consumption: 19 V@5.58 A
  (Intel Core i3-2100T CPU with 4 GB 1333 MHz 4 GB DDR3 memory)

Ordering Information

• AFL2-W19AB-H61-i3/PC-R12 - 18.9" 250 cd/m² WXGA+ panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5 GHz), TDP 35 W, 4 GB DDR3 (2 GB x 2), 802.11b/g/n wireless module, projected capacitive touchscreen, 2 M camera, microphone, without LED bar, R11

Optional Accessories

• AFL2PK-W19A - Panel Mounting Kit


• AFLWK-19B - Wall Mounting Kit


• ARM-31-RS - Arm


• STAND-A19-RS - Stand


• STAND-A21-R10 - Stand


• STAND-C19-R10 - Stand


• STAND-210-R11 - Stand


• AFL2P-W19AMSI-U-R10 - Hybrid Card Reader


• AFL2P-W19AMSR-U-R10 - Magnetic Stripe Reader


• AFL2-DVD-KIT01-R10 - Slim DVD Burner


• AFL2-BT-KIT01-R11 - Bluetooth Module Kit


• TPM-IN01-R11 - Trusted Platform Module (TPM)


• AFL2-EM-RFID-KIT01-R10 - EM RFID Reader


• AFL2-MF-RFID-KIT01-R11 - Mifare RFID Reader


• AFL2-W19A-H61-XPE-R10 - OS Win XPE (CD-ROM)


• AFL2-W19A-H61-LNX-R10 - OS Linux (CD-ROM)


• AFL2-W19A-H61-WES7P-R10 - OS Win 7 Embedded (DVD-ROM) - for Projected Capacitive Touch
