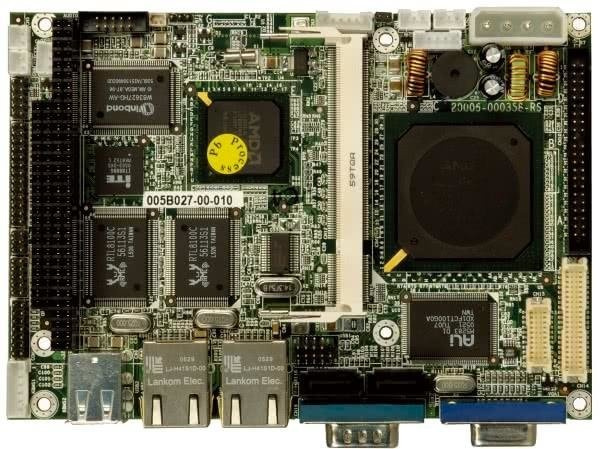

Name: WAFER-LX-800
Brand: IEI Integration Corp.

Features

3.5” form factor, AMD LX800 processor embedded board with RoHS compliant
DDR 333/400 MHz SO-DIMM SDRAM up to 1 GB
Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0
24-bit TTL/ 18-bit single-channel LVDS
Value embedded applications with low power, fanless design support Windows XP/CE/XPe
The best choice for Thin Client Windows CE 5.0, XPe OS image with ICA, RDP and IE APs ready
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: On board AMD Geode LX800 (500 MHz) processor
System Chipsets: AMD Geode LX800 + AMD CS5536
BIOS: Award BIOS
System Memory: One 200-pin 400/333 MHz DDR SDRAM SODIMM Supported
(system max. 1 GB)
Ethernet: 10/100Mbps dual RTL8100C Ethernet Chipsets
I/O Interface:
4 x USB 2.0
2 x SATA with VIA VT6421A RAID 0, 1 function support
1 x LPT
1 x CF Type II
2 x RS-232
1 x RS-422/485
1 x PS/2 for KB/MS
1 x IDE
Expansion:
1 x PC/104
Digital I/O: 8-bit digital I/O, 4-bit input/ 4-bit output by super I/O
Super I/O: W83627EHG
Audio: Realtek ALC203 with AC’97 Codec
Display:
VGA integrated in AMD Geode LX800
24 bit TTL
18-bit single channel LVDS
Infrared Interface: 1 x Infrared Interface by pin hearer
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Power Supply: 5 V only, AT/ATX power support
Power Consumption: 5 V@1.53 A
(AMD LX800 with DDR 400 MHz/ 1 GB)
Temperature: Operating: 0 ~ +60°C
Humidity: Operating: 5% to 95%, non-condensing
Dimensions: 146 x 102 mm
Weight: GW: 670 g / NW: 230 g
