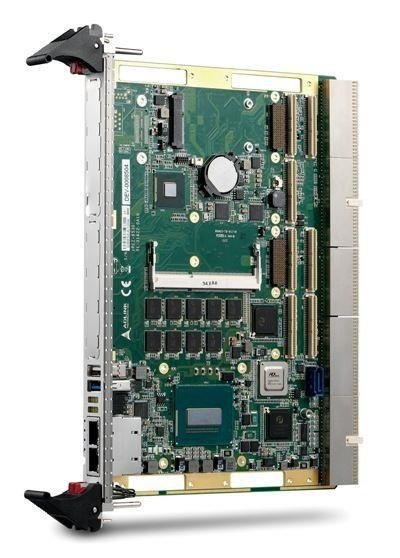

cPCI-6530V/4700E/M4-4 – karta CompactPCI

  • 6U 4HP Karta procesorowa CompactPCI z Intel® Core™ i7-4700EQ i 4GB DDR3L-1600 ECC wlutowanej pamięci i 4GB SODIMM z 2x GbE, 1x USB 2.0, 2x USB 3.0, 1x RJ-45 COM, PMC/XMC
  • cPCI-6530V/4700E/M4-4 – karta CompactPCI
The cPCI-6530(BL) Series is a 6U CompactPCI processor blade in single-slot (4HP) width form factor featuring enhanced graphics, computing power, energy efficiency, system manageability and data security provided by the 5th/4th generation Intel Core i7/i5 processor (4C/2C), and soldered and socket type DDR3L-1067/1600 ECC memory up to 32GB. The cPCI-6530(BL) offers outstanding performance and is an ideal solution for defense, aviation, transportation and industrial applications. The cPCI-6530(BL) Series front panel I/O options include 1x DVI-I, 2x GbE and 2x USB 3.0 ports, 1x USB 2.0 port, 1x RJ-45 COM port and 1x PCI/XMC slot for the cPCI-6530(BL)V, and 2x GbE and 1x USB 3.0 port and 1x USB 2.0 port and 2x PMC/XMC slots for the cPCI-6530(BL). Graphics support is integrated on the CPU and supports 3 independent displays when mated with selected rear transition modules (cPCI-R6700 and cPCI-R6500). Storage for both cPCI-6530(BL)V and cPCI-6530(BL) versions includes an mSATA slot and a SATA 7-pin connector. The cPCI-6530(BL)V supports an additional SATA connector to support onboard 2.5" SATA drive or CFast adapter.
*Dual channel DDR3L-1600 SDRAM with ECC, up to 32GB for cPCI-6530BL series and 16GB for cPCI-6530 series

For expansion, both cPCI-6530(BL) and cPCI-6530(BL)V are equipped with one 64-bit/33, 66,133MHz PMC site or one PCIe x8 Gen 2 XMC site with rear I/O. The cPCI-6530(BL) is equipped with an additional PMC/XMC slot supporting PCI 64-bit/133MHz PMC site or one PCIe x8 Gen 2 XMC site. Rear I/O signals to the RTM include 2x GbE, 1x DVI-I, 1x PCIe x4 (configurable to 4x PCIe x1), 3x SATA 3 Gb/s, and 6x USB 2.0., 5x GPIO, high definition audio, KB/MS, and 2x serial ports (one supports Tx/Rx only). The PMC/XMC signals on the cPCI-6530(BL) can also be routed to the RTM.

The cPCI-6530(BL) Series offers outstanding performance provided by the 4th generation Intel Core processor family. For applications requiring enhanced processing power, the cPCI-6530(BL) can be mated with the cPCI-R65N0 RTM to provide accelerated processing using a CUDA GPGPU. The ADLINK cPCI-6530(BL) Series provides high flexibility, supporting operation in peripheral slots with CompactPCI bus communication (Universal mode) and as a standalone computer if there is no CPU blade in the host slot. Internet remote manageability includes IPMI for system health monitoring over Internet and a GbE port on the faceplate supports Intel AMT 9.0 for remote monitoring. The cPCI-6530(BL) Series is an ideal solution for military, aerospace, transportation and other industrial applications that require best value per watt computing power.

Applications
  • Defense
  • Communications
  • Robust Computers

  • which require best CPU/GPU performance per watt, multi-displays, ruggedized design, remote management on CompactPCI platform.

    Conduction-cooled version CT-6530

    Cechy

    • Czterordzeniowy procesor 4/5 generacji Intel® Core™ z ECC
    • Pamięć Dual-Channel DDR3L ECC, wlutowana i SO-CDIMM, do 32GB
    • Obsługa 3 niezależnych wyświetlaczy
    • Dual PMC/XMC
    • Obsługa zdalnego zarządzania i TPM
