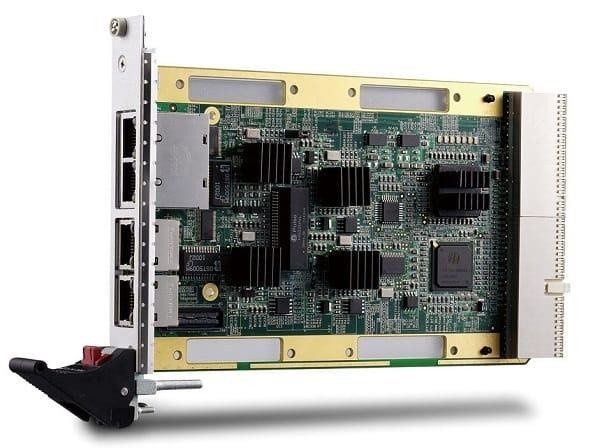

cPCI-3E10 – Karta GbE LAN CompactPCI

The cPCI-3E10 Series is 3U CompactPCI Gigabit Ethernet peripheral card equipped with Intel® 82574L PCIe Gigabit Ethernet controllers. The cPCI-3E10 provides four GbE ports on the front panel (RJ-45) with two switchable to the rear transition module, the cPCI-3E12 provides two GbE ports on the front panel (RJ-45), and the cPCI-3E10-SUB provides two Fast Ethernet ports on the front panel (DB-9). An optional Rear Transition Module (cPCI-R3E10) is available to provide rear access to the GbE ports switched from the cPCI-3E10 front panel.

Cechy

• PICMG® 2.0 R3.0
• Obsługa magistrali 32bit/33MHz, 66bit/64MHz CompactPCI®
• Standard 3U 4HP, 100mmx160mm (LxW)
• 2 lub 4 porty RJ-45 10/100/1000BASE-T na przednim panelu
• kontrolery Intel® 82574L Gigabit Ethernet
• Możliwość przełączenia dwóch portów lan na interfejs tylny (tylko cPCI-3E10)
• Systemy operacyjne: Windows® XP/Vista/7/Server 2003/Server 2008, RHEL 5.1
