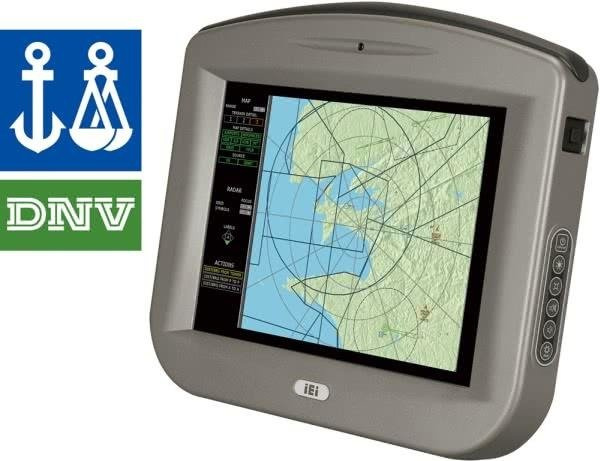

S12A/R/1/1-C6 (End of Life)

Bezwentylatorowy komputer panelowy IP67 12.1" 1024x768 500 cd/m2 z procesorem Intel Atom N270 1.6 GHz, 1 GB DDR2, rezystancyjnym ekranem dotykowym, interfejsami 1 x RS-232, 1 x RS-232/422/485, 1 x GbE, 1 x 802.11 b/g/n, 2 x USB 2.0, 1 x SATA, 1 x CAN i audio oraz 1 GB Compact Flash z Windows CE 6.0 (-10 ~ +50°C)

---

Features

• 12.1” 500 nits high brightness TFT LCD available
• IP 67 (NEMA 6) fully-enclosed aluminum die cast enclosure and IP 67 waterproof lockable I/O
• Fanless system integrated with Intel Atom N270 1.6 G processor for ultra low voltage
• Supports one 2.0 GB (max.) 400/533 MHz MHz DDR2 SO-DIMM
• Built-in internal Wi-Fi antenna supports 802.11 b/g/n high standard
• CAN-Bus interface for automotive applications
• Ambient light sensor detects ambient light for automated screen adjustments to optimize viewing. (Advanced Deep Dimming to Black for sunlight readable model)
• Standard VESA 75/100 compliance

Specifications

• Display


• LCD Size: 12.1"
• Max Resolution: 1024 x 768
• Brightness (cd/m2): 500
• Contrast Ratio: 700:1
• LCD Color: 16.2 M
• Pixel Pitch (mm): 0.3075(H) x 0.3075(V)
• Viewing Angle (H-V): 160º/160º
• Backlight MTBF (hrs): 50000


• Motherboard


• SBC Model: SAILORMB-ATOM-R10
• CPU: Intel Atom N270 1.6 GHz CPU
• Chipset: Intel 945GSE + ICH7M
• RAM: Supports one 400/533MHz DDR2 SO-DIMM (2 GB max.)


• I/O Ports and Switches


• 1 x 5-pin M12 connector for Power Adapter
• 1 x 8-pin M12 connector for two USB
• 1 x 5-pin M12 connector for CAN-bus and Audio line out
• 1 x 8-pin M12 connector for UART RS-232/422/485
• 1 x 8-pin M12 connector for UART RS-232
• 1 x 8-pin M12 connector for GbE LAN


• Driver Bay


• HDD Driver Bay:
  1 x 2.5" SATA HDD Bay
• SSD: CF Type II


• Expansion Slot


• 1 x Wireless LAN Module (802.11 b/g/n)
  (internal PCIe Mini card interface)


• Physical


• Construction Front Panel: Aluminum
• Chassis Construction: Heavy-duty steel
• Mounting: Panel, Rack, Stand and Arm VESA 100 x 100 mm
• Front Panel Color: Silver (Pantone 8403C)
• Dimensions (WxHxD): 345.3 x 300.4 x 77 mm
• Net/Gross Weight: 4.2 Kg / 5.3 Kg


• Environment


• Operation Temperature: -10 ~ +50°C
• Storage Temperature: -20 ~ +70°C
• Vibration:
  5 ~ 17 Hz, 0.1" double amplitude displacement
  17 ~ 640 Hz, 1.5 G acceleration peak to peak
• Shock: 10 G acceleration part to part (11 ms)
• Front Panel Protection: IP 67 Compliant
• Certificate Meets: CE, FCC, CB, CCC, DNV


• Touch Screen


• Resistive Type 5-Wire with RS-232 interface


• Power


• Optional Power Supply:
  P/N: 63000-CLG60121C-RS - 60 W Power Adapter
  Input: 90 ~ 264 Vac, 50/60 Hz
  Output: 12 Vdc
  M12 waterproof connector 5P
• Power Requirement: 9 ~ 28 Vdc
• Power Consumption: 33 W

Ordering Information

• S12A/R/1/1-C6-R30 - 12.1" 500 cd/m² IP 67 panel PC with Intel Atom N270 CPU 1.6 GHz, 802.11 b/g/n wireless module, touch screen, 1 GB DDR2 553 MHz, M12 connectors and 1 GB compact flash with Windows CE 6.0 operating system

Optional Accessories

• SAILORRK-12 - Rack mounting kit


• ARM-11-RS - Arm


• ARM-31-RS - Arm


• STAND-A12 - Stand


• STAND-100-RS - Stand


• CB-M12USB02-R10 - USB cable


• CB-M12RJ45-R10 - RJ-45 LAN cable


• CB-M12COM-R20 - DB-9 COM port cable


• CB-M12ACAN-R20 - DB-9 CAN bus and AUDIO line-out cable


• CB-M12AUDIO-R10 - AUDIO line-out cable


• 63000-CLG6012IC-RS - Water-proof power adapter
