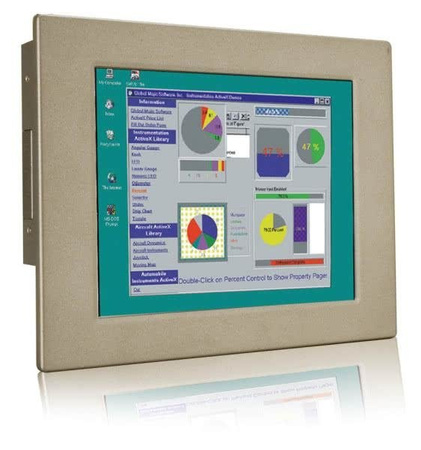

PPC-3710A-N26/R/2G (End of Life)

Bezwentylatorowy komputer panelowy 10.4" 800x600 400 cd/m2 z Intel Atom N2600 1.6 GHz, 2 GB DDR3, rezystancyjnym ekranem dotykowym, VGA/HDMI, 1x GbE, 2x RS-232, 1x RS-422/485, 2x USB 3.0, 2x USB 2.0, 1x SATA i HD-audio (-10 ~ +50°C); zasilanie 9 ~ 28 Vdc

Features

• 10.4" 400 nits high brightness TFT LCD with LED backlight
• Dual Ethernet provides continuous network service and allows
  sharing among different workgroups in two different subnets
• Robust aluminum front bezel and metal casing
• IP66 compliant front panel
• IEI One Key Recovery solution allows you to create rapid OS backup
  and recovery (Over 4 GB storage capacity suggested)

Specifications

• Display


• LCD Size: 10.4"
• Max Resolution (W x H): 800 x 600
• Brightness (cd/m2): 400
• Contrast Ratio: 700:1
• LCD Color: 262 K
• Pixel Pitch (HxV): 0.264 x 0.264 mm
• Viewing Angle (V/H): 140°/160°
• Backlight MTBF (hrs): 50000 (LED Backlight)


• Touch


• Touch Screen: Resistive Type 5-Wire with RS-232 interface
• Touch Controller: EETI MBMER4050CMBG


• Motherboard


• SBC: NANO-CV-N26001
• CPU: Intel Atom N2600 dual-core processor 1.6 GHz
• Chipset: Intel NM10
• RAM: One 204-pin SO-DIMM socket, supporting DDR3 800 MHz
  modules for up to 2 GB
• Ethernet: Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
• Audio Codec: Realtek ALC662 HD audio codec


• I/O Ports and Switches


• 2x RS-232
• 1x RS-422/485
• 2x RJ-45 for LAN Port
• 2x USB 3.0
• 2x USB 2.0
• 1x HDMI
• 1x VGA Port
• 1x Line-in, Line-out, Mic-in
• 1x 12 Vdc input Power Jack
• 1x Power Switch


• Drive Bay


• HDD Driver Bay: 1x 2.5” SATA HDD Bay
• SSD: 1x mSATA (SATA2 Signal)


• Expansion Slot


• 1x PCIe Mini card


• Physical


• Front Panel Contruction: Aluminum Die-casting
• Chassis Construction: Heavy-duty Steel (SECC)
• Mounting: Panel, Wall, Rack, Stand and Arm VESA 100 x 100 mm
• Front Panel Color: Silver (Pantone 8001C)
• Dimensions (WxHxD): 311 x 242 x 77.8 mm
• Cut Out Dimensions (WxH): 291 x 221 mm
• Net /Gross Weight 3.4 Kg/ 5.8 Kg


• System Cooling


• Fanless


• Environment


• Operating Temperature: -10 ~ +50°C
• Storage Temperature: -20 ~ +60°C
• IP Rating: IP66 compliant front panel
• Vibration:
  5 ~ 17 Hz, 0.1 double amplitude displacement
  17 ~ 640 Hz 1.5 G acceleration peak to peak
• Shock: 10 G acceleration part to part (11 ms)


• Power Supply


• Power Adapter P/N: 63040-010060-050-RS
  60 W Power Adapter (Meet PSE)
  Input: 90 ~ 264 Vac, 50/60 Hz
  Output: 12 Vdc

Ordering Information

• PPC-3710A-N26/R/2G-R12 - 10.4” 800x600 400 cd/m2 SVGA Panel PC with dual-core Intel Atom N2600 1.6 GHz processor, 2 GB DDR3 RAM, touch screen and VGA/HDMI, 2x GbE, 2x RS-232, 1x RS-422/485, 2x USB 3.0, 2x USB 2.0, 1x SATA and HD-audio interface (-10 ~ +50°C); 9 ~ 28 Vdc power, RoHS

Optional Accessories

• RK-104MS-R10 - Rack Mount Kit


• ARM-11-RS - Arm


• STAND-100-RS - Stand


• 32200-075202-RS - RS-422/485 Cable (A) D-SUB 9PIN MALE (B) DU PONT 2*7P P=2.0 FEMALE


• 32221-000200-100-RS - HDD IDE Cable 100 MM, IDE 44-pin


• PPC-WL-KIT02-R10 - Wi-Fi module with RF cable and antenna, 2T2R, 802.11 b/g/n for PPC-37xxA-N26 series (Telec certified)
