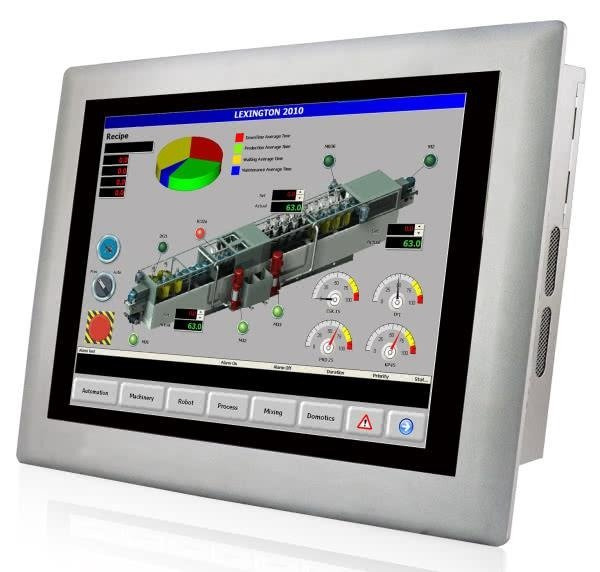

Bezwentylatorowy komputer panelowy 15" 1024x768 400 cd/m2 z procesorem Intel Atom D525 1.8 GHz, 1 GB DDR3 RAM, VGA, 1x GbE, 2x RS-232, 1x RS-232/422/485, 2x RS-422/485, 2x USB 3.0, 2x USB 2.0 i 1x SATA (-20 ~ +50°C); zasilanie 9 ~ 36 Vdc; certyfikat C1D2
Features
- Zone 2 certified for hazardous area application
- Robust aluminum with IP 64 compliant front bezel design
- 5-wire resistive touch
- Intel Atom D525 1.8GHz dual-core with fanless design
- 15’’ 400 nits LED backlight panel with 1024 x 768 resolution
- Two USB 3.0, two USB 2.0 and five COM ports available
- Flexible expansion interface (two PCI slots or one PCI slot + one PCIe slot)
- Dual (10/100/1000BASE-T(X)) gigabit LAN port
Specifications
- Display
- LCD Size: 15 “
- Max Resolution (W x H): 1024 x 768
- Brightness (cd/m2): 400
- Contrast Ratio: 500:1
- LCD Color: 16.2M
- Pixel Pitch (mm): 0.1095 (H) x 0.1095 (V)
- Viewing Angle (V/H): 160° / 140°
- Backlight MTBF (hrs): 50,000
- Touch
- Touchscreen & Controller: 5-wire resistive type with RS-232 interface / DMC 9000
- Hardness: ≥3H (follows JIS K 5600 standard, use Mitsubishi Pencil 500g)
- Motherboard
- SBC: PPCMB-5152A-D525
- CPU: Intel Atom D525 processor (dual core, 1.8 GHz)
- Chipset: Intel ICH8M
- RAM: 1 x 204-pin 1 GB DDR3 SO-DIMM slot (system max. 4 GB)
- Ethernet: Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
- I/O Ports and Switches
- 2x RS-232 (DB-9 connector)
- 1x RS-232 or RS-422/485 (DB-9 connector)
- 2x RS-422/485 (RJ-45 connector)
- 2x USB 2.0 connector
- 2x USB 3.0 connector
- VGA port (DB-15 connector)
- AT/ATX switch
- 2x RJ- 45 Gigabit LAN
- Reset button
- Drive Bay
- HDD Drive Bay: One 2.5” SATA HDD/SSD bay
- SSD: CF Type II socket
- Physical
- Front Panel Contruction: Aluminum
- Chassis Construction: Heavy duty steel (SECC)
- Mounting: Panel, Wall, Rack, Stand and Arm (VESA 100 x 100 mm)
- Front Panel Color: Silver, Pantone PMS 8401C
- Dimensions (WxHxD): 422 x 331 x 80 mm
- Cut Out Dimensions (WxH): 390 x 290 mm
- Net / Gross Weight: 6.5 kg/ 7.0 kg
- System Cooling: Fanless
- Expansion Slot
- Two PCI slots or one PCI slot plus one PCIe x1 slot
- Burglar-proof internal USB 2.0 port
- Environment
- Operating Temperature: -20 ~ +50°C
- Storage Temperature: -30 ~ +80°C
- Vibration: MIL-STD-810F 514.5C-2 (with CF card or SSD)
- Shock: Half-sine wave shock 3G; 11ms; 3 shocks per axis
- IP level: IP 64 compliant front panel
- Safety & EMC: CE / FCC / C1D2
- Power
- Power Adapter:
DSP 90W power adapter (FSP090-D2BA1)
Input: 100 ~ 240 Vac, 50/60 Hz - Output: 19 Vdc
- Power Requirement: 9 ~ 36 Vdc Jack
- Consumption: 50 W without add-on card
Ordering Information
- PPC-5152-D525-E/R/1G-R10 - 15” 400 cd/m² XGA fanless panel PC, Intel Atom D525 1.8 GHz CPU, 1 GB DDR3 RAM, silver color, touchscreen, ANSI C1D2 SKU
Optional Accessories
- PPCDB-PCI/PCI-E-R10 - Riser card with PCI and PCIe interfaces for PPC-5152-D525-E, R10
- PPCDB-PCI-R10 - Riser card with two PCI interfaces for PPC-5152-D525-E, R10
- PK-170M - Panel Mounting Kit
- WK-190MS-R10 - Wall Mounting Kit
- ARM-11-RS - Arm
- ARM-31-RS - Arm
- STAND-A19-RS - Stand
- STAND-A21-R10 - Stand
- STAND-210-R11 - Stand
- PPCCF-5152-D525-XPE-4G-R10 - OS: Win XPE (4 GB CF Card)
- it doesn’t include video/audio capture card’s driver - PPCCF-5152-D525-WES7E-4G-R10 - OS: Win 7 Embedded (4 GB CF Card)
- it doesn’t include video/audio capture card’s driver
