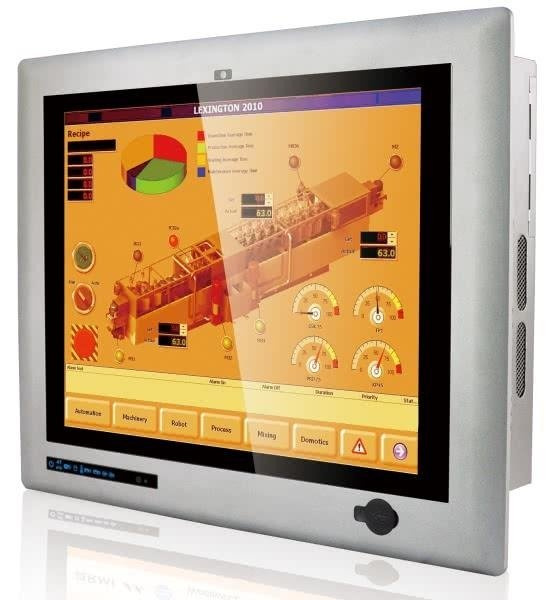

PPC-5152-D525/R/1G/2P (End of Life)

  • Bezwentylatorowy komputer panelowy 15" 1024x768 400 cd/m2 z procesorem Intel Atom D525, 1 GB DDR3, rezystancyjnym ekranem dotykowym, 2 x PCI, VGA, 2 x RS-232, 1 x RS-232/422/485, 2 x RS-422/485, 2 x Combo-GbE, 2 x USB 2.0, 2 x USB 3.0, 2 x SATA
  • PPC-5152-D525/R/1G/2P (End of Life)

Features

  • Fanless system with Intel Atom D525 1.8 GHz dual-core proccessor
  • 15'' 400 nits 1024 x 768 LCD with LED backlight
  • Dual combo (10/100/1000 baseT(X) or 1000 baseSFP slot) gigabit LAN ports
  • Two PCI slots expansion interface
  • Support two USB 3.0, two USB 2.0, five COM, optional 4-channel video/audio capture and optional Wi-Fi 802.11 b/g/n
  • Built-in 1.3 M pixel webcam with AF, AE and AWB capabilities
  • Robust aluminum front bezel design
  • IP 64 compliant front panel

Specifications

  • LCD Size: 15"
  • Max Resolution: 1024 (W) x 768 (H)
  • Brightness (cd/m2): 400
  • Contrast Ratio: 500:1
  • LCD Color: 16.2 M
  • Pixel Pitch (mm): 0.1095 (H) x 0.1095 (V)
  • Viewing Angle (H-V): 160° / 140°
  • LED Backlight MTBF(hr): 50,000
  • SBC Model: PPCMB-5152A-D525
  • CPU: Intel Atom D525 1.8 GHz dual core proccessor
  • Chipset: Intel ICH8M
  • Ethernet: 2 x Combo (SFP Fiber / RJ-45) Gigabit LAN
  • Memory: One 204-pin DDR3 SO-DIMM slot (system max. 4 GB)
  • IO Ports and Switches:
    2 x RS-232 (DB-9 connector)
    1 x RS-232 or RS-422/485 (DB-9 connector)
    2 x RS-422/485 (RJ-45 connector)
    2 x Combo (SFP / RJ-45) Gigabit LAN
    2 x USB 2.0 connector
    2 x USB 3.0 connector
    2 x Audio jacks (line-out, MIC)
    VGA port (DB-15 connector)
    4-channel video / audio capture (optional)
    Reset button
    Power switch
    AT/ATX switch
    DC input jack
    DC input terminal block
  • Drive Bays:
    CF Type II socket
    2.5” SATA HDD bay
  • SSD: SATA Slim SSD
  • Expansion Slots:
    Two PCI slots
    Burglar-proof internal USB 2.0 port
  • Construction Front Panel: Aluminum
  • Construction Material: Heavy-duty steel (SECC)
  • Mounting: Panel, Wall, Rack, Stand and Arm (VESA 100  x 100 mm)
  • Front Panel Color: PMS 8401C
  • Dimensions (W x H x D): 422 x 331 x 80 mm
  • Cut Out Dimensions (W x H): 390 x 290 mm
  • Net/Gross Weight: 6.5 kg/ 8.8 kg
  • IP Level: IP 64 compliant front panel
  • Operating Temperature: -20 ~ +50°C
  • Storage Temperature: -30 ~ +70°C
  • Relative Humidity: 5 ~ 95%, non-condensing
  • Vibration: MIL-STD-810F 514.5C-2 (with CF card or SSD)
  • Shock: Half-sine wave shock 3 G; 11 ms; 3 shocks per axis
  • Touch Screen: 5-wire resistive type
  • Power Adapter:
    90 W power adapter
    Input: 100 ~ 240 Vac, 50/60 Hz
    Output: 19 Vdc
  • Power Requirement: DC input 9 ~ 36 V
  • Power Consumption: 50 W without add-on card

Ordering Information

  • PPC-5152-D525/R/1G/2P-R11 - 15” 400 cd/m² XGA Fanless Panel PC with two PCI expansion slots, Intel Atom D525 1.8 GHz CPU, 1 GB DDR3 RAM, 1.3 M camera, microphone, touch screen, R10

Optional Accessories

  • UPCPK-12 - Panel Mounting Kit

  • UPCRK-08 - Pack Mounting Kit

  • ARM-11-RS - Arm

  • ARM-31-RS - Arm

  • STAND-A19 - Stand

  • STAND-B19 - Stand

  • STAND-210-R11 - Stand

  • HPE-2S1 - Converter Card (2P)

  • HPE-2S2 - Converter Card (1P1E)

  • PPC-WL-KIT01-R10 - Wi-Fi Module Kit

  • PPC-CP-KIT01-R10 - Capture Card Kit

  • SFP1G-SX - 1 Gbps SFP optical transceiver, multi-mode / 550 m, 850 nm (0 ~ 70°C)

  • SFP1G-SX-I - 1 Gbps SFP optical transceiver, multi-mode / 550 m, 850 nm industrial grade (-20 ~ 85°C)

  • SFP1G-MLX - 1 Gbps SFP optical transceiver, multi-mode / 2 Km, 1310 nm (0 ~ 70°C)

  • SFP1G-MLX-I - 1 Gbps SFP optical transceiver, multi-mode / 2 Km, 1310 nm industrial grade (-40 ~ 85°C)

  • SFP1G-LX10 - 1 Gbps SFP optical transceiver, single-mode / 10 Km, 1310 nm (0 ~ 70°C)

  • SFP1G-LX10-I - 1 Gbps SFP optical transceiver, single-mode / 10 Km, 1310 nm industrial grade (-40 ~ 85°C)

  • SFP1G-ZX70 - 1 Gbps SFP optical transceiver, single-mode / 70 Km, 1550 nm (0 ~ 70°C

  • SFP1G-ZX70-I - 1 Gbps SFP optical transceiver, single-mode / 70 Km, 1550 nm industrial grade (-40 ~ 85°C)

  • FPC-LCLC-MM3M - Fiber Cord, optical connector LC/LC, multi-mode, diameter 62.5/125 μm, length 3m

  • FPC-LCLC-SS3M - Fiber Cord, optical connector LC/LC, single-mode, diameter 9/125 μm, length 3m

Optional Operating Systems

  • PPCCF-5152-D525-CE060-128M-R10 - OS Win CE 6.0 (128 MB CF Card)

  • PPCCF-5152-D525-XPE-2G-R10 - OS Win XPE (2 GB CF Card)

  • PPCCF-5152-D525-XPE-4G-R10 - OS Win XPE (4 GB CF Card)

  • PPCCF-5152-D525-LNX-2G-R10 - OS Linux (2 GB CF Card)

  • PPCCF-5152-D525-WES7E-4G-R10 - OS Win 7 Embedded (4 GB CF Card)



Parametry techniczne:
End of Life:
Tak
