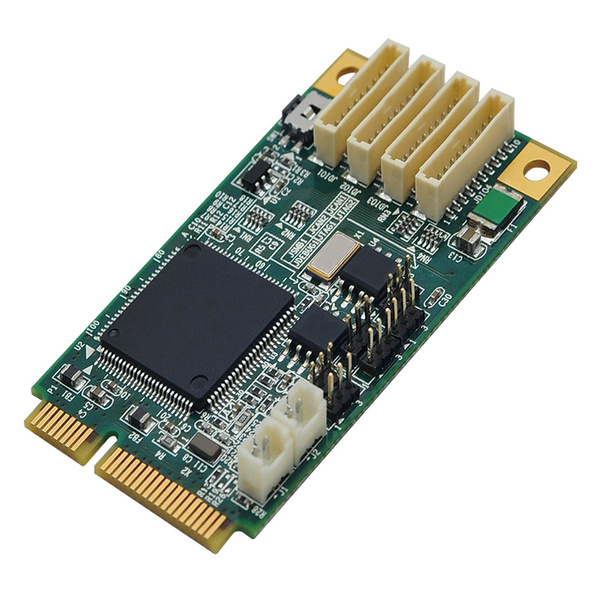

DMX-100 series Mini PCIe expansion card with 32-bit GPIO and Isolated DIO, -40°C to 85°C extended operating temperature
Cechy
- 4KV Isolated Protection for each channel
- -40°C to 85°C Operating Temperature
- 32-bit Programmable signals
- Onboard Interrupt supports Rising/Falling Edge
- Programmable Timer and Counter for status monitoring
- Supports Wide Range I/O Voltage
Specyfikacja
| GPIO (DMX-100-M) | |
| Interface | USB 2.0 |
| Number of port | 4 (8-bit GPIO/each) |
| Power Input | 3.3V DC-in |
| I/O Voltage | 3.3V |
| Isolated DIO Expansion Card (DMX-100-E) | |
| Number of port |
- Input : 2 (8-bit GPIO/each)
- Output : 1 with 16-bit Isolated DIO
|
| I/O Voltage |
- Sink Mode : 6V to 40V
- Source Mode : 6V to 48V
|
| Mechanical | |
| Dimensions (W x L) |
DMX-100-M: 30.0mm x 50.9mm
DMX-100-E: 45.0mm x 55.0mm
Cable Length : 250mm
|
| Weight | 160 g |
| Software Support | |
| OS | Windows 10, Windows 7, Linux |
| Environment | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 85°C |
| EMC | CE, FCC |
