Features
- Intel® Core™ Ultra 200S Series processor (Arrow Lake) running with Intel® W880 PCH features accelerated hybrid computing performance, up to 24 cores
- Intel® Integrated NPU and Xᵉ LPG Graphics Architecture optimize system workload and AI Acceleration, delivering up to 36 TOPS
- Intel® Edge System Qualification (ESQ) Verified — Validated for Intel® AI Edge software stack compatibility
- 2 DDR5 6400MHz Memory supports up to 96GB, optional with ECC
- 2 10G SFP+, 8 2.5GigE LAN with 4 PoE+, 1 GigE LAN
- 6 USB 3.2 Gen 2, 16 Isolated DIO, 4 COM RS-232/422/485
- 2 front-access 2.5" SSD Tray, optional M.2 SSD Tray
- Expansion: 2 M.2 Key B, 1 Key E, SUMIT A, B
- Wireless connection: 5G/WiFi 7/BT/4G/LTE/GPRS/UMTS
- DC 9V to 50V Redundant Power Input, Software Ignition Control
- Supports Intel® vPro, TSN, TCC, and TPM 2.0
- Supports OpenVINO™ Toolkit for Edge AI applications
- The latest Intel Core Ultra 200S series processor running with Intel W880 Chipset (Arrow Lake-S), featuring up to 24-core with new P-core and E-core architecture, delivering outstanding power productivity and optimized AI workload by Intel® Thread Director for optimal performance, efficiency and security, max 65W CPU supported.
- Advanced Intel Core Ultra CPU + Integrated NPU + Xᵉ LPG Graphics Architecture enables a Fast Response, Low Power, and High Throughput AI Acceleration possible, delivering up to 36 TOPS.
- 2 DDR5 6400MHz CSODIMM, up to 96GB ECC/non-ECC Memory.
- High-speed data transfer : PCIe 5.0 (32GT/s), USB 3.2 Gen 2 (10G), 10G SFP+ (10G), SATA III (6G), 2.5GigE (2,5G), GigE LAN (1G).
- Versatile Ethernet Offerings : 10G SFP+, 2.5GigE PoE+, 2.5GigE LAN, GigE LAN
- Max 9 LAN : 4 IEEE 802.3at 2.5G PoE+ (25.5W/48V), 4 2.5GigE LAN, 1 GigE LAN with iAMT.
- 6 10G USB 3.2 Gen 2, 4 COM RS-232/422/485, 16 Isolated DIO.
- Expansion : M.2 Key B, M.2 Key E, optional SUMIT A, B
- Storage : Dual external 2.5" SSD trays, optional supports 2 front-access M.2 SSD trays
- Wireless Connections : 5G/WiFi 7/BT/4G/LTE/GPRS/UMTS

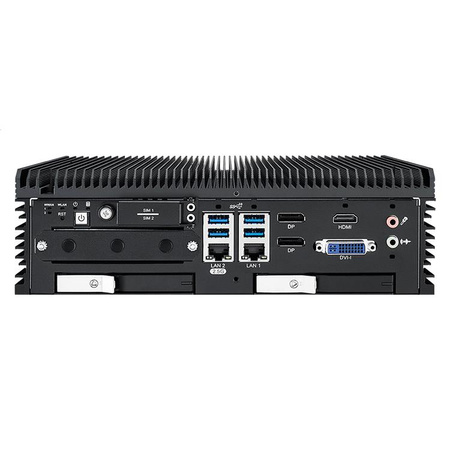

- Multiple displays : Dual DisplayPort (8K), DVI-I (Full HD) and HDMI 2.0 (4K)
- Optional supports Intel OpenVINO toolkit for AI applications.
- Fanless -40°C to 75°C operation.
- ECC Memory supported.
- Always-on wireless communication supports seamless 5G/WiFi 7/BT/4G/LTE/GPRS/UMTS data delivery.
- Optional SUMIT A and SUMIT B support versatile expansion functions.
- DC 9V to 50V wide range power input.
- Ignition Power Control for in-vehicle operation.
- EN50155 & EN50121-3-2.
- Anti-shock, Anti-vibration.
- Redundant Power : DC 9V to 50V Power Input.
- User-friendly chassis design supports easier system maintenance.
- Considerate Toolless Design : SIM Card Socket Cover, Antenna Cover.
- Front-access & lockable SSD trays, RAID 0, 1 data protection.
- Software Ignition Power Control, Remote Power Switch.
- Real-time capable with Intel Time Coordinated Computing (Intel TCC) and support for Time-Sensitive Networking (TSN).
- Smart Managment features : Intel vPro, TSN, TCC, TPM 2.0, PXE, Wake on LAN, Watchdog Timer.
Feature Highlights
New Gen AI PC Platform
Leading Integration
Rugged Reliability
Optimized Manageability
Parametry techniczne:
System | |
| System - Processor: | Intel® Core™ Ultra 200S Series processors, 65W/35W, max 24-core (Arrow Lake-S) |
| System - Chipset: | Intel® W880 Chipset |
| System - BIOS: | AMI |
| System - SIO: | IT8786E |
| System - Memory: | 2 DDR5 6400MHz CSODIMM, up to 96GB (ECC/Non-ECC) |
| System - OS: | Windows 11, Windows 10, Linux |
Integrated AI Processor | |
| Integrated AI Processor - NPU: | Intel® AI Boost dedicated Low Power AI Engine |
| Integrated AI Processor - GPU: | Intel® Xᵉ LPG Graphics architecture, up to 4 Xᵉ Graphics Engines |
| Integrated AI Processor - Display: | 2 DisplayPort : Up to 7680 x 4320 @60Hz ,
1 HDMI 2.0 : Up to 3840 x 2160 @60Hz ,
1 DVI-I : Up to 1920 x 1080 @60Hz |
I/O Interface | |

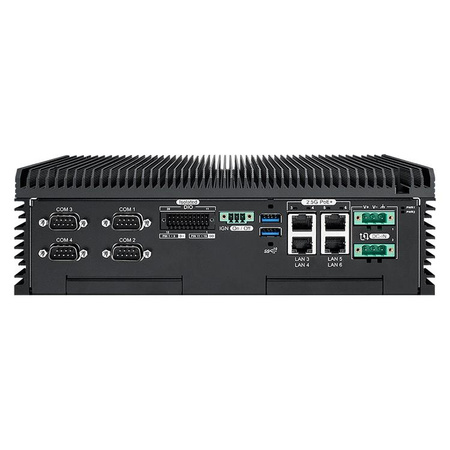

| I/O Interface - Serial: | 4 COM RS-232/422/485 |
| I/O Interface - USB: | 6 USB 3.2 Gen 2 |
| I/O Interface - Isolated DIO: | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| I/O Interface - LED: | Power, HDD, PoE, Wireless |
| I/O Interface - SIM Card: | 2 External SIM Card Sockets |
Expansion | |
| Expansion - M.2: | 2 M.2 Key B Socket (3042/3052/2280, PCIe x2/USB 3, default/SATA) ,
1 M.2 Key E Socket (2230, PCIe x2/USB2) |
| Expansion - SUMIT: | 2 SUMIT Slot (Optional) |
Storage | |
| Storage - SATA: | 2 SATA III (6Gbps) support software RAID 0, 1 ,
(Storage devices please refer to Order Information) |
| Storage - M.2: | 1 M.2 Key M Socket (2280, PCIe x4) ,
2 Front-access M.2 Socket (2280, PCIe x4, Optional) |
Audio | |
| Audio - Audio Codec: | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio - Audio Interface: | 1 Mic-in, 1 Line-out |
ETHERNET | |
| Ethernet - LAN 1: | Intel® I219LM GigE LAN supports iAMT |
| Ethernet - LAN 2: | Intel® I226IT 2.5GigE LAN supports TSN |
POE | |
| PoE - LAN 3: | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| PoE - LAN 4: | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| PoE - LAN 5: | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
| PoE - LAN 6: | Intel® I226IT 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ |
2.5G Ethernet (ECX-4025R/4025) | |
| 2.5G Ethernet (ECX-4025R/4025) - LAN 7: | Intel® I225 2.5GigE LAN |
| 2.5G Ethernet (ECX-4025R/4025) - LAN 8: | Intel® I225 2.5GigE LAN |
| 2.5G Ethernet (ECX-4025R/4025) - LAN 9: | Intel® I225 2.5GigE LAN |
10G SFP+ (ECX-4071R/4071) | |
| 10G SFP+ (ECX-4071R/4071) - LAN 7: | Intel® X710-BM2 supports IEEE 802.3 10GBASE-T |
| 10G SFP+ (ECX-4071R/4071) - LAN 8: | Intel® X710-BM2 supports IEEE 802.3 10GBASE-T |
Power | |
| Power - Power Input 1: | DC 9V to 50V, Redundant Power Input |
| Power - Power Input 2: | DC 9V to 50V, Redundant Power Input |
| Power - Power Interface: | 3-pin Terminal Block : V+, V-, Frame Ground |
| Power - Ignition Control: | 16-mode Software Ignition Control |
| Power - Remote Switch: | 3-pin Terminal Block |
Others | |
| Others - TPM: | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Others - Watchdog Timer: | Reset : 1 to 255 sec./min. per step |
| Others - Smart Mgmt.: | Wake on LAN, PXE supported |
| Others - HW Monitor: | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechaniczny | |
| Mechanical - Dimension: | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Mechanical - Weight: | 3.8 kg (8.38 lb) |
| Mechanical - Mounting: | Wallmount by mounting bracket ,
DIN Rail Mount (Optional) ,
2U Rackmount (Optional) |
Środowisko | |
| Environment - Operating Temperature: | 35W TDP CPU : ,
-40°C to 75°C (-40°F to 167°F), Fanless ,
65W TDP CPU : ,
-40°C to 55°C (-40°F to 131°F), Fanless ,
ECX-4025R/ECX-4025 : ,
-40°C to 70°C (-40°F to 158°F), Fanless ,
ECX-4071R/ECX-4071 : ,
-25°C to 55°C (-13°F to 131°F), Fanless |
| Environment - Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Environment - Humidity: | 5% to 95% Humidity, non-condensing |
| Environment - Relative Humidity: | 95% @75°C |
| Environment - Shock: | IEC 60068-2-27 ,
- SSD : 50G @wallmount, Half-sine, 11ms |
| Environment - Vibration: | IEC 60068-2-64 ,
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| Environment - EMC: | CE, FCC, ICES, EN50155, EN50121-3-2 |
