Features
- Delivers efficient computing and OpenVINO™ AI acceleration with Intel® Processor N Series (12W/15W TDP)
- DDR4 3200MHz memory, up to 16GB (IBECC supported on N97)
- Ultra-compact size at 110 x 150 x 65 mm (1.1L)
- Fanless, -25°C to 65°C operating temperature
- DDR4 3200MHz memory, up to 16GB
- HDMI and DisplayPort dual display supports up to 4K resolution
- 1 2.5GigE LAN (Intel® i226-V) with TSN, 1 Gigabit Ethernet Controller
- DC 12V/19V/24V Redundant Power Input
- External Nano SIM socket supports 5G/WiFi/4G/3G/LTE/GPRS/UMTS
Parametry techniczne:
System | |
| System - Processor: | Intel® Processor N95/N97 with 4 cores, 6MB cache (formerly Alder Lake-N) |
| System - BIOS: | AMI |
| System - Memory: | 1 DDR4 3200 SO-DIMM, up to 16GB, Non-ECC |
| System - OS: | Windows 11, Windows 10, Linux |
Graphics | |
| Graphics - Graphics Processor: | Intel® UHD Graphics |
| Graphics - Interface: | 1 HDMI: Up to 4096 x 2160@30Hz ,
1 DP++: Up to 4096 x 2160@60Hz |
ETHERNET | |
| Ethernet - LAN 1: | Intel® i210-AT GigE LAN |
| Ethernet - LAN 2: | Intel® i226-V 2.5G LAN |
Audio | |
| Audio - Audio Codec: | Realtek® ALC897, 7.1 Channel HD Audio |
| Audio - Audio Interface: | 1 Mic-in, 1 Line-out |
Storage | |
| Storage - SATA: | 1 SATA III (6Gbps) By Internal Bracket |
| Storage - M.2: | 1 M.2 Key M Socket (2280, PCIe x1 / SATA) |
I/O Interface | |
| I/O Interface - Serial: | 1 COM RS-232 ,
1 COM RS-485 |
| I/O Interface - USB: | 4 USB 3.2 Gen1 (Type-A) ,
2 USB 2.0 (Type-A) |
| I/O Interface - LED: | Power, HDD |
| I/O Interface - SIM: | 1 SIM Card Socket |
Expansion | |
| Expansion - M.2: | - 1 M.2 Key B Socket (2230/3052, USB 3.0 / USB2.0) ,
1 M.2 Key E Socket (2230, PCIe x2 / USB2) |
Power | |

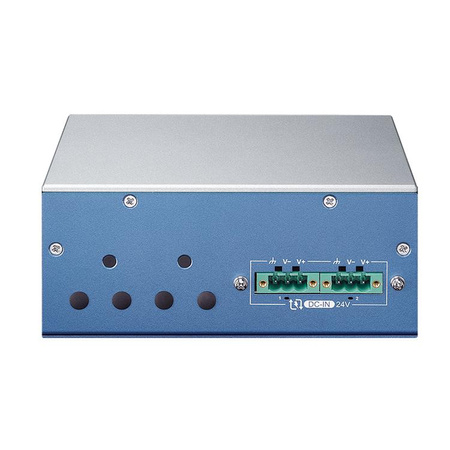

| Power - Power Input 1: | 12V / 19V / 24V DC-in, , Redundant Power Input |
| Power - Power Input 2: | 12V / 19V / 24V DC-in, , Redundant Power Input |
| Power - Power Interface: | 3-pin Terminal Block：V+,V-, Frame Ground |
Others | |
| Others - Watchdog Timer: | Reset : 1 to 255 sec./min. per step |
| Others - HW Monitor: | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechaniczny | |
| Mechanical - Dimension: | 110.0mm x 150.4mm x 65.0mm (4.33" x 5.92" x 2.56") |
| Mechanical - Weight: | 1.0kg (2.19 lb) |
| Mechanical - Mounting: | - Wallmount by mounting bracket ,
VESA Mount (Optional) ,
DIN Rail Mount (Optional) |
Środowisko | |
| Environment - Operating Temperature: | -25°C to 65°C (-13°F to 149°F) |
| Environment - Storage Temperature: | -20°C to 75°C (-40°F to 185°F) |
| Environment - Humidity: | 5% to 95% Humidity, non-condensing |
| Environment - Relative Humidity: | 95% @65°C |
| Environment - Shock: | MIL-STD-810H method 514.8, Procedure I, Category 4 |
| Environment - Vibration: | MIL-STD-810H method 516.8, Procedure I |
| Environment - EMC: | CE, FCC |
