Features
- Intel® Core™ Ultra processors feature a hybrid CPU/GPU/NPU architecture, improving CPU productivity by up to 14%.
- Advanced Intel® AI Boost NPU delivers 11 TOPS AI-focused performance
- Compact Design, -40°C to 70°C Operation
- DC 9V to 55V Power Input, Software Ignition Power Control
- 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C with DP, HDMI and DisplayPort
- 2 2.5G LAN, 3 M.2 Socket for storage and expansion
- Optional SUMIT B expansions for 10GigE LAN, 10G SFP+, or 4G Networks
- Supports Intel® vPro, TSN, TCC, and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO™ toolkit for AI Computing
- Intel Core Ultra Processor featuring performance hybrid architecture improves up to 2.56x power efficiency for AI computing than the former generation
- 12-core 15W TDP CPU, multiple compute engines in one SoC : CPU (P-cores, E-cores), GPU, and NPU (Intel AI Boost)
- High-speed DDR5 Memory, up to 48GB
- Intel Graphics supports DirectX 12.2, OpenGL 4.6, OpenCL 3.0, and Intel Deep Learning Boost
- High-speed data transfer : USB 3.2 Gen 2x2 (20Gbps), PCIe 4.0 (16GT/s), USB 3.2 Gen 2 (10Gbps), SATA III (6Gbps), 2.5GigE (2.5Gbps)
-
Fully supports OpenVINO toolkits for AI Computing
- Power Efficient : max 12-core 15W TDP AI-ready Processor
- Display Interface : HDMI 2.1, DisplayPort
- GigE Vision : Dual 2.5GigE LAN, max 2.5Gbps data transfer
- USB Vision : 10Gbps USB 3.2 Gen 2, 20Gbps USB 3.2 Gen 2x2 Type C
- External SIM socket for 5G/WiFi/4G/LTE/GPRS/UMTS wireless data transfer
- Smart System Management : Intel vPro, TCC, TSN, TPM 2.0, Wake on LAN, PXE, Remote Power Switch
- OpenVINO toolkits support 500+ AI models optimized for AI Computing
- Compact M.2 sockets : Key B, Key E, and Key M
- Storage : SATA III, M.2 Key B, M.2 Key M
- Expansion : M.2 Key B, M.2 Key E
- Optional supports 5G, WiFi 6, 4G, LTE, GPRS, and UMTS Wireless Connection
- Optional SUMIT B for 10GigE LAN, 10G SFP+, 4G Networks, SIM Socket, or Fiber LAN expansion
- Supports Wallmount, DIN Rail, and VESA Mount mounting
- Versatile thermal solutions for operating requirements
- Ultra-compact, small form factor
- Fanless -40°C to 75°C Operation
- Wide Range Power Input : DC 9V to 55V
- 16-mode Software Ignition Power Control optimized for in-vehicle computing
- Trusted Intel LANs with longevity supported
- EN50155 and EN50121 trusted standards compliant
-
Anti-shock and Anti-vibration
Feature Highlights
Accelerated AI-Ready Platform
Advanced Integration
Flexible Configurations
Trusted Reliability
Parametry techniczne:
System | |
| System - Processor: | Intel® Core™ Ultra 7 165U Processor (12 Cores) ,
Intel® Core™ Ultra 5 135U Processor (12 Cores) |
| System - NPU: | Intel® AI Boost |
| System - Chipset: | Intel® SoC |
| System - BIOS: | AMI |
| System - GPU: | Intel® Graphics |
| System - SIO: | IT8786E |
| System - Memory: | 1 DDR5 5600MHz SO-DIMM, up to 48GB |
| System - OS: | Windows 11, Windows 10, Linux |
I/O Interface | |
| I/O Interface - Display: | Supports Triple Display ,
1 HDMI 2.1 : Up to 4096x2304 @60Hz ,
1 DisplayPort 1.4 : Up to 4096 x 2304 @60Hz ,
1 DisplayPort 1.4 : Up to 3840 x 2160 @60Hz by USB Type-C |

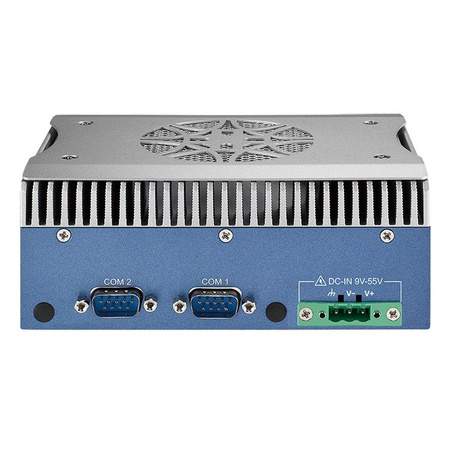

| I/O Interface - Serial: | 2 COM RS-232/422/485 (ESD 8KV) |
| I/O Interface - USB: | 1 USB 3.2 Gen 2x2 Type-C support max 20Gbps and DP 1.4 (5V/3A) ,
2 USB 3.2 Gen 2 Type-A |
| I/O Interface - LED: | Power, HDD, WWAN, WLAN |
| I/O Interface - SIM: | 1 External Nano SIM Card Socket |
Expansion | |
| Expansion - M.2: | 1 M.2 Key B Socket (3042/3052, PCIe x2/USB 3, default/USB 2) with internal SIM ,
1 M.2 Key E Socket (2230, PCIe x1/USB2) |
| Expansion - SUMIT: | 1 SUMIT B (Optional, with customized chassis) |
Storage | |
| Storage - M.2: | 1 M.2 Key M Socket (2280, PCIe 4.0 x4) ,
1 M.2 Key B Socket (2242, PCIe x2, share with expansion) |
| Storage - SATA: | 1 SATA III (6Gbps) with internal 2.5" HDD/SSD bracket |
Audio | |
| Audio - Audio Codec: | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio - Audio Interface: | 1 Mic-in, 1 Line-out |
ETHERNET | |
| Ethernet - LAN 1: | Intel® I226 2.5GigE LAN supports TSN |
| Ethernet - LAN 2: | Intel® I226 2.5GigE LAN supports TSN |
Power | |
| Power - Power Input: | DC 9V to 55V |
| Power - Power Interface: | 3-pin Terminal Block：V+,V-, Frame Ground |
| Power - Ignition Control: | 16-mode Software Ignition Control |
| Power - Remote Switch: | 3-pin Terminal Block |
Others | |
| Others - TPM: | Infineon SLB9672 supports TPM 2.0, SPI Interface |
| Others - Watchdog Timer: | Reset : 1 to 255 sec./min. per step |
| Others - HW Monitor: | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechaniczny | |
| Mechanical - Dimension: | 150.4mm x 106.2mm x 61.2mm (5.92" x 4.18" x 2.41") |
| Mechanical - Weight: | 1.4 kg (3.09 lb) |
| Mechanical - Mounting: | Wallmount by mounting bracket ,
VESA Mount (Optional) ,
DIN Rail Mount (Optional) |
Środowisko | |
| Environment - Operating Temperature: | -40°C to 70°C (-40°F to 158°F) with fan sink |
| Environment - Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Environment - Humidity: | 5% to 95% Humidity, non-condensing |
| Environment - Relative Humidity: | 95% @75°C |
| Environment - Shock: | IEC 60068-2-27 ,
SSD ：50G @ wallmount, Half-sine, 11ms |
| Environment - Vibration: | IEC 60068-2-64 ,
SSD ：5Grms, 5Hz to 500Hz, 3 Axis |
| Environment - EMC: | CE, FCC, ICES, EN50155, EN50121-3-2 |
