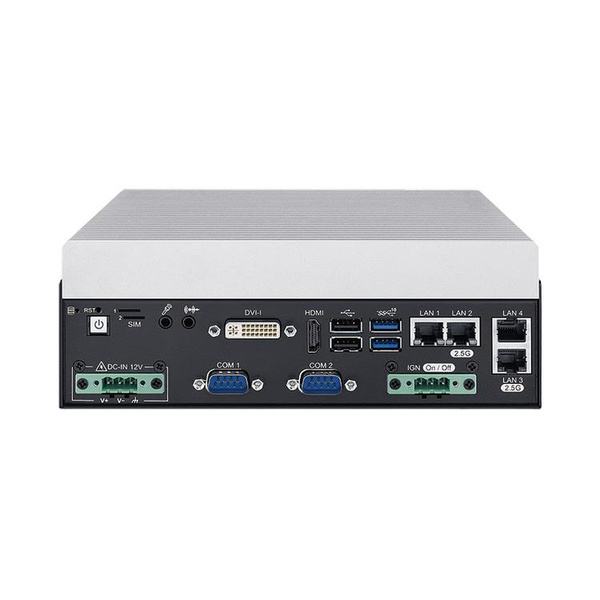

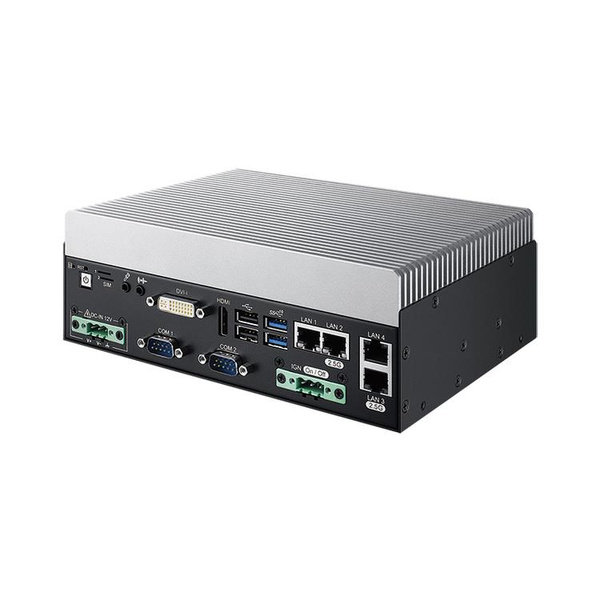

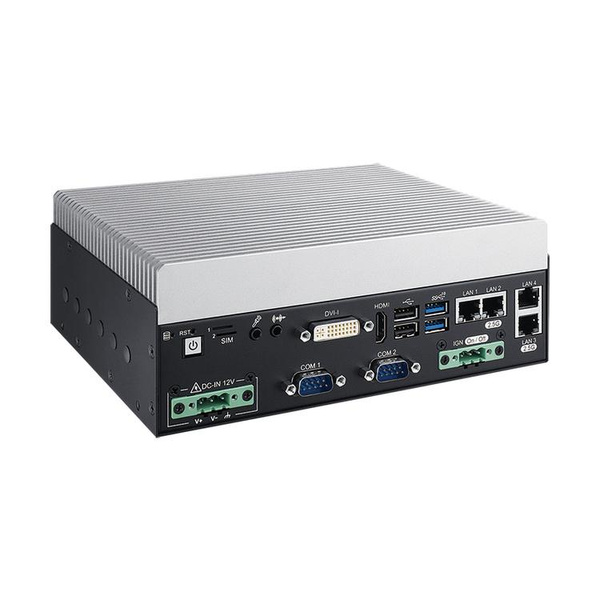

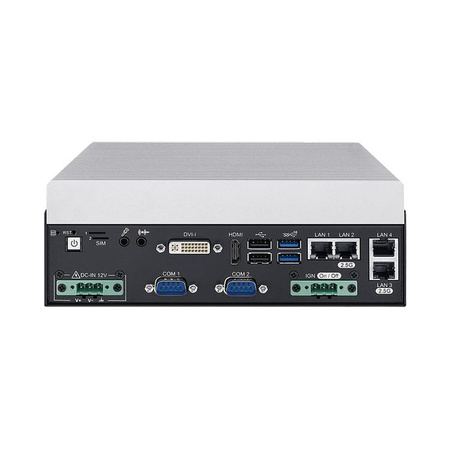

Name: VCM-2000
Brand: Vecow

Datasheet Download

Features

Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) running with Intel® H610E PCH supports max 65W TDP CPU
Intel® Core™ 200S Series with P-core only available (codename: Bartlett Lake 12P)
Intel® Edge System Qualification (ESQ) Verified — Validated for Intel® AI Edge software stack compatibility
Supports 2 DIMM up to 96GB DDR5 5600MHz memory
2 USB 3.2, 2 USB 2.0, 2 COM RS-232/422/485
4 Independent Intel® GigE LAN ports, including 3 2.5GbE
2 External SIM Card Socket support WiFi/4G/5G/LTE/GPRS/UMTS
Key E, Key B, 2 Mini PCIe for PCIe/USB/SIM Card expansions
12V DC Power Input, optional supports 9V to 36V wide range DC power input, Software Ignition Control
Supports operating temperatures from -40°C to 60°C

Parametry techniczne:

System
System - Processor:	24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S) , - 24-core 14th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S Refresh) , 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) , 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
System - Chipset:	Intel® H610E
System - BIOS:	AMI
System - SIO:	IT8786E
System - Memory:	2 DDR5 5600MHz SO-DIMM, up to 96GB
System - OS:	Windows 11, Window 10, Linux
I/O Interface

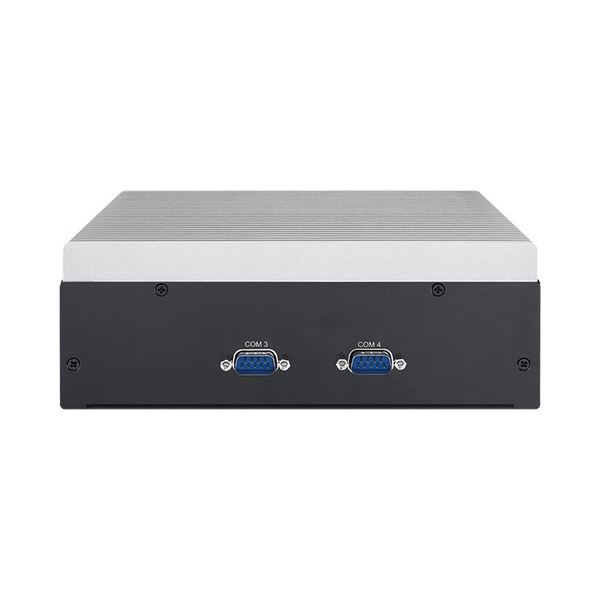

I/O Interface - Serial:	2 COM RS-232/422/485
I/O Interface - USB:	2 USB 3.2 Type-A , 2 USB 2.0 Type-A
I/O Interface - LED:	Power, HDD
I/O Interface - SIM Card:	2 External SIM Card Sockets
Expansion
Expansion - M.2:	1 M.2 Key E Socket(2230, PCIe x2/USB 2) , 1 M.2 Key B Socket(2280/3042/3052, default PCIe x1/USB 3.2/USB 2.0) with SIM
Expansion - Mini PCIe:	1 Full-size Mini PCIe (PCIe x1, SATA, USB2) , 1 Full-size Mini PCIe (PCIe x1, SATA, USB2) with SIM
Graphics
Graphics - Graphics Processor:	Intel® Xᵉ LPG Graphics architecture, up to 4Xᵉ Graphics Engines
Graphics - Interface:	1 HDMI 2.0: Up to 3840 x 2160 @60Hz , 1 DVI-I: Up to 1920 x 1080 @60Hz
Storage
Storage - SATA:	2 SATAIII (6Gbps) for SSD/HDD
Storage - M.2:	1 M.2 Key M Socket (2242/2280, PCIe x4) , 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
Storage - mSATA:	2 SATA III (Mini PCIe Type, 6Gbps, share with expansion)
ETHERNET
Ethernet - LAN 1:	Intel® I219LM GigE LAN
Ethernet - LAN 2:	Intel® I226 2.5 GigE LAN
Ethernet - LAN 3:	Intel® I226 2.5 GigE LAN
Ethernet - LAN 4:	Intel® I226 2.5 GigE LAN
Power
Power - Power Input:	VCM-2000: 12V DC-in , VCM-2000A: 9V to 36V wide range DC-in
Power - Power Interface:	3-pin Terminal Block: V+, V-, Frame Ground
Power - Ignition Control:	16-mode Software Ignition Control
Power - Remote Switch:	3-pin Terminal Block
Others
Others - TPM:	Infineon SLB9670 supports TPM 2.0, SPI Interface
Others - Watchdog Timer:	Reset : 1 to 255 sec./min. per step
Others - Smart Mgmt.:	Wake on LAN, PXE supported
Others - HW Monitor:	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechaniczny
Mechanical - Dimension:	209.0mm x 150.5mm x 75.0mm (8.23" x 5.93" x 2.95")
Mechanical - Weight:	2.31kg (5.09lb)
Mechanical - Mounting:	Wallmount by mounting bracket , VESA Mount (Optional) , DIN Rail Mounting (Optional)
Środowisko
Environment - Operating Temperature:	35W TDP CPU with heat sink: -40°C to 60°C (-40°F to 140°F) with air flow , 65W TDP CPU with fan sink : -40°C to 60°C (-40°F to 140°F)
Environment - Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Environment - Humidity:	5% to 95% Humidity, non-condensing
Environment - Relative Humidity:	95% @60°C
Environment - Shock:	IEC 60068-2-27 , - SSD : 50G @wallmount, Half-sine, 11ms
Environment - Vibration:	IEC 60068-2-64 , - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Environment - EMC:	CE, FCC, ICES, EN50155, EN50121-3-2
