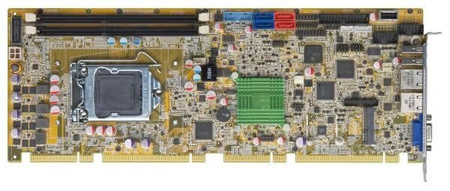

Karta PICMG 1.3 SBC z podstawką LGA1150 dla procesorów 4. generacji Intel Core i7/i5/i3, VGA/iDP, 2 x GbE, 2 x RS-232, 1 x RS-422/485, 2 x USB 3.0, 9 x USB 2.0, 2 x SATA-3, 2x SATA-2 i HD-audio (-20 ~ +60°C)
Features
- PICMG 1.3 full-size solution
- 4th generation LGA1150 Intel Core i7/i5/i3, Pentium or Celeron processor supported
- Two DDR3 1600/1333 MHz DIMM SDRAM supported up to 16GB
- Dual Realtek PCIe GbE supported
- TPM V1.2 hardware security function supported by TPM module
- IEI One Key Recovery solution allows you to create raipd OS backup and recovery
- Stiffener bars
- IEI jumper-less function
Specifications
- CPU: 4th generation LGA1150 Intel Core i7/i5/i3, Pentium or Celeron processor supported
- PCH: Intel H81
- Memory: Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB - BIOS: UEFI
- Graphics Engine:
Intel HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode - Display Output:
Dual independent display
VGA (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) - Ethernet: Dual Realtek RTL8111E PCIe GbE controllers supported
- External I/O Interface:
1x VGA
2x RJ-45
2x USB 2.0 - Internal I/O Interface:
1x IR (1x5 pin)
1x KB/MS (1x6 pin)
1x LPT (2x13 pin)
1x RS-422/485 (1x4 pin)
1x USB 2.0 (180 degree type A)
4x USB 2.0 (2x4 pin, P=2.54)
4x USB 2.0 (signal to backplane)
2x USB 3.0 (2x10 pin)
2x RS-232 (2x5 pin, P=2.54)
2x SATA 6Gb/s, 2 x SATA 3Gb/s (H81 supports AHCI, no RAID) - Audio: Support 7.1 channel HD Audio by IEI AC-KIT-892HD kit
- Front Panel:
1x Front panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) - LAN LED: 2x LAN LED (1x2 pin)
- SMBus: 1x SMBus (1x4 pin)
- I²C: 1x I²C (1x4 pin)
- Expansion:
1 x PCIe connector ( PCIe Mini & mSATA colay)
One PCIe x16 & four PCIe x1 signal via golden finger
PCI signal by ITE IT 8892 (PCIe to PCI bridge) - Watchdog Timer: Software programmable support 1~255 sec. system reset
- Digital I/O: 1x 8-bit digital I/O (2x5 pin)
- Fan Connector:
1x CPU smart fan (1x4 pin)
1x System smart fan (1x3 pin) - Power Supply: 5 V/12 V, AT/ATX support
- Power Consumption: 5 V@3.41 A, 12 V@0.35 A, Vcore_12 V@7.52 A, 3.3 V@1.41 A, 5 Vsb@0.12 A
(Intel Core i7-4770K 3.90 GHz CPU with 8 GB (two 4 GB) 1333 MHz DDR3 memory) - Operating Temperature: -20 ~ +60°C
- Storage Temperature: -30 ~ +70°C
- Operating Humidity: 10 ~ 95%, non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1000g / NW: 260g
Ordering Information
- PCIE-H810-R10 - Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Core i7/i5/i3, Pentium and Celeron per Intel H81, DDR3, VGA,
iDP, Dual PCIe GbE, SATA 6Gb/s, mSATA, USB 3.0, RS-232, HD Audio and RoHS
Optional Accessories
- 19800-000051-RS - Dual RS-232 cable, 230 mm, P=2.54
- 19800-000075-RS - PS/2 KB/MS Y-cable with bracket, 220 mm
- 19800-003100-300-RS - USB 2.0 cable, 300 mm, P=2.54
- 19800-010500-200-RS - USB 3.0 cable with bracket, 457 mm
- 32102-000100-200-RS - SATA power cable, MOLEX 5264-4P to SATA15P
- 32200-015100-RS - LPT flat cable, 280 mm
- 32205-003800-300-RS - RS-422/485 cable, 200 mm, P=2.0
- AC-KIT-892HD-R10 - 7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams
- CF-1150SB-R11 - Special cooler kit for LGA1150, high-performance compatible, 65 W
- CF-1150SC-R20 - Special cooler kit for LGA1150, 1U chassis compatible, 65 W
- CF-1150SE-R10 - Special cooler kit for LGA1150, high-performance compatible, 95 W
- CF-1150SF-R10 - Special cooler kit for LGA1150, high-performance compatible, 54 W
- DP-DP-R10 - DisplayPort to DisplayPort converter board (for IEI iDP connector)
- DP-DVI-R10 - DisplayPort to DVI-D converter board (for IEI iDP connector)
- DP-HDMI-R10 - DisplayPort to HDMI converter board (for IEI iDP connector)
- DP-LVDS-R10 - DisplayPort to LVDS converter board (for IEI iDP connector)
- DP-VGA-R10 - DisplayPort to VGA converter board (for IEI iDP connector)
- TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17
Parametry techniczne:
| Standard: | PICMG 1.3 Full-Size |
| Generacja procesora: | 4 |
| Obsługiwane procesory: | Intel® Core™ i7 ,
Intel® Core™ i5 ,
Intel® Core™ i3 ,
Pentium® ,
Celeron® |
| Rodzaj chłodzenia: | Brak |
| Socket: | LGA 1150 |
| Chipset: | Intel® H81 |
| Pamięć RAM: | Niezainstalowana |
| Rodzaj pamięci RAM: | DDR3 DIMM ,
DDR3L DIMM |
| Maksymalna pamięć RAM: | 16GB |
| Ilość slotów RAM: | 2 |
| Szeroki zakres zasilania wejściowego: | Nie |
| Zasilanie: | 5V/12V ,
AT/ATX |
| Zakres temperatur pracy: | Rozszerzony |
| Temperatura pracy: | -20ºC ~ 60ºC |
| Funkcje dodatkowe: | Watchdog Timer |
| Sygnał dla złącz rozszerzeń (przez plater): | PCIe x16 ,
PCIe x4 |
Złącza | |
| Porty COM: | 3 |
| Porty USB: | 13 |
| RS-232: | 2 |
| RS-422/485: | 1 |
| USB 2.0: | 11 |
| USB 3.0: | 2 |
| LAN: | 2 |
| VGA: | 1 |
| iDP: | 1 |
| SATA III: | 2 |
| SATA II: | 2 |
| PCIe Mini: | 1 |
| KB/MS: | 1 |
| LPT: | 1 |
| Infrared Interface: | 1 |
| Digital I/O: | 8-bit digital I/O |
| Audio: | 1 |
| SMBus: | 1 |
| I²C: | 1 |
| TPM: | 1 |
Inne | |
| Waga netto(kg): | 0.42 |
| Waga brutto(kg): | 1 |
