Features

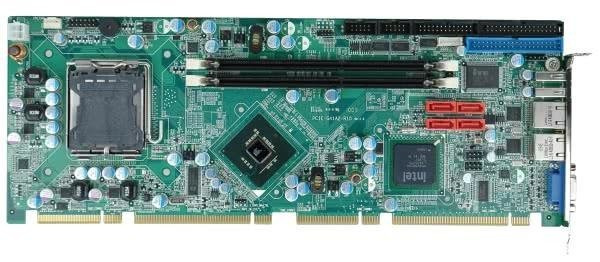

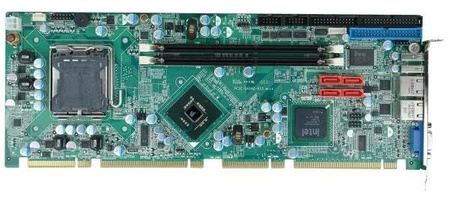

- PICMG 1.3 form factor
- LGA775 Intel Core2 Extreme/Quad/Duo and Celeron processor supports up to 1333 MHz FSB
- Dual channel DDR3 800/1066MHz supports up to 8 GB
- High performance PCI Express gigabit Ethernet controller
- Four SATA II with Intel Matrix Storage Manager support Raid 0,1,5 and 10
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA775 45nm Intel Core2 Quad, Core2 Duo, Pentium D, Celeron at FSB 800/1066/1333 MHz processors
- System Chipset: Intel G41+ ICH7R
- BIOS: AMI BIOS
- System Memory: Two 240-pin 4 GB (max.) 800/1066 MHz dual-channel DDR3 SDRAM DIMM supported (System max. 8 GB)
- Ethernet: Dual PCIe Realtek 8111CP GbE controller
- I/O Interface:
2 x RS-232
1 x IDE
1 x LPT
1 x FDD
1 x KB/MS by 6-pin header
4 x SATA II with Intel RAID 0,1,5 and 10
8 x USB 2.0 (2 on bracket, 4 by pin header, 2 to backplane via golden finger) - Digital I/O: 8-bit digital I/O, 4-bit input /4-bit output
- Infrared Interface: 1 x Infrared by 5-pin pin header
- Super I/O: ITE IT8718F
- Display Interface: Intel GMA X4500
VGA display output up to 2048x1536 - Audio:
5.1 channel audio kit with Realtek ALC655 AC'97 codec
7.1 channel HD audio kit with Realtek ALC888 codec supports dual audio streams - Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Power Supply: ATX Power
- Power Consumption: 3.3 V@0.53 A, 5 V@6.2 A, 12 V@0.11 A, Vcore_12 V@2.91 A
(Intel Core2 Duo E8500 3.16 GHz at FSB 1333 MHz CPU with 2x2 GB DDR3 1333 MHz) - Temperature: Operation: -10 ~ +60°C
- Humidity: Operation: 5% ~ 95% non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1100g
- PCIE-G41A2-R10 - Full-size PICMG 1.3 CPU card supports LGA775 Intel Core2 Quad processor, DDR3 with VGA, Dual PCIe GbE, SATA II, Audio, COM and USB 2.0, RoHS
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 support dual audio streams
- AC-KIT08R-R10 - 5.1 channel AC'97 audio kit with Realtek ALC655
- 19800-000075-RS - 6-pin wafer to PS/2 connector cable for keyboard and mouse
- 19800-000100-200-RS - 4 ports USB cable with bracket
- CF-775A-RS - CPU cooler for 130 W
- CF-520-RS-R11 - CPU cooler for 115 W
- CF-775B-RS - 1U CPU cooler for 90 W
- 32102-000100-200-RS - SATA power cable
- 32200-000017-RS - FDD cable
- 19800-000400-100-RS - LPT cable
- 32200-000052-RS - ATA66 IDE flat cable
Parametry techniczne:
| End of Life: | Tak |
