Features
- PICMG1.3 and RoHS compliant
- Intel Q35 & ICH9-DO Platform
- Supports 45nm LGA775 Intel Core2 Duo and Core2 Quad processors
- Six SATAII Ports with Intel Matrix storage technology supported
- Dual Intel PCIe GbE
- TPM1.2 IT security solution supported
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA 775 Intel Core2 Quad, Core2 Duo, Celeron processors with a 800 MHz, 1066 MHz, and 1333 MHz FSB
- System Chipset: Intel Q35 + ICH9-DO
- BIOS: AMI BIOS
- System Memory: Four 240-pin 2 GB (max.) 800 MHz, 667 MHz dual-channel DDR2 SDRAM DIMM supported (system max. 8 GB)
- Ethernet: Dual GbE
LAN1: Intel 82566DM GbE controller with iAMT support
LAN2: Intel 82573L GbE controller - IO Interface:
2 x RS-232
6 x SATA II (RAID 0, 1, 5, 10)
1 x Keyboard and mouse connector
12 x USB 2.0 (2 on bracket, six on SBC, four on backplane by pin header) - Super IO: ITE 8718F
- Digital I/O: 16-bit Digital I/O, 8-bit input / 8-bit output
- Infrared interface: 1 x Infrared by pin header
- Audio: 10-pin on-board header connects to the IEI AC-KIT-888HD 7.1 channel HD audio kit
- Graphics:
Analog VGA output - TPM1.2: 1 x 20-pin on-board header for TPM (Trusted Platrom Module)
- Watchdog Timer: Software programmable supports 1~255sec. system reset
- Power Supply: ATX
- Power Consumption: 3.3 V@3.0 A, 5 V@5.1 A, 5 Vsb@0.28 A, 12 V@4.23 A
(Intel Core 2 Duo E6700 2.66 GHz at FSB 1066, 8 GB DDR2 667 MHz, 3DMark 2001) - Temperature: Operation: 0 ~ +60ºC (32 ~ 140ºF)
- Humidity: Operation: 5% ~ 95% non-condensing
- Dimensions: 338 x 126 mm
- Weight: GW: 1.1 kg

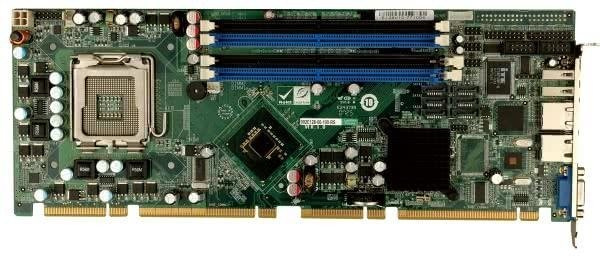

- PCIE-Q350-R13 - PICMG1.3 CPU card supports Intel 45nm LGA 775 Core2 Duo/Quad CPU at FSB800/1066/1333 MHz, Intel Q35 & ICH9DO platform, Dual Intel GbE, SATA II with RAID, USB
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams
- CF-520-RS-R11 - High performance CPU cooler (115mm x 115mm x 67mm, 115 W)
- CF-775A-RS - High performance CPU cooler (92 mm x 92 mm x 73 mm,130 W)
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
- SDVO-100VGA-R10 - PCIe x16 VGA output SDVO card supports dual display (IEI CPU board only)
- SDVO-100DVI-R10 - PCIe x16 DVI output SDVO card supports dual display (IEI CPU board only)
- 19800-000075-RS - KB/MS cable with bracket
Parametry techniczne:
| End of Life: | Tak |
