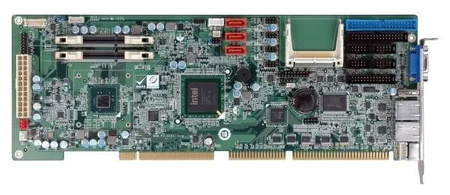

WSB-PV-D5251 (End of Life)

  • Karta PICMG 1.0 SBC z procesorem Intel Dual-Core Atom D525 1,80 GHz/1 MB L2 cache, VGA/LVDS, 2 x GbE, 4 x RS-232, 7 x USB 2.0, 3 x SATA-2 i audio; temp. pracy -20 ~ +70°C
  • WSB-PV-D5251 (End of Life)
Features
  • PICMG 1.0 form factor and RoHS compliant
  • Support Intel Atom D525 1.80 GHz processor
  • Support 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB
  • Dual PCIe Ethernet, three SATA II, and four RS-232 serial port connectors
  • VGA and 18-bit single channel LVDS for dual independent display support
  • TPM V1.2 hardware security function supported by TPM module
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
  • CPU: Intel Atom D525 dual-core processor (1.80GHz/1MB L2 cache)
  • System Chipset: ICH8M
  • BIOS: UEFI BIOS
  • System Memory: Two 204-pin 800 MHz DDR3 SDRAM SO-DIMMs supported (System max. 4 GB)
  • Graphics Engine: GMA 3150
    Gen3.5 DX9, 400 MHz
  • Ethernet: Dual PCIe Realtek RTL8111E GbE controller,
    LAN1 with ASF2.0 support
  • Display Interface:
    Analog CRT up to 2048x1536
    Supports CRT hot plug
    18-bit single channel LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768
  • I/O Interface:
    4 x RS-232
    3 x SATA II
    1 x IDE
    1 x FDD
    1 x CF Type II
    1 x 5-pin on-board header for KB
    1 x LPT
    1 x PS/2 connector for KB/MS
    7 x USB 2.0 (1 on bracket, 6 on board by pin header)
  • TPM: 2 x 10-pin header
  • SMBus: 1 x 4-pin wafer connector
  • Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output
  • Infrared Interface: 1 x 5-pin infrared by pin header
  • Super I/O: Fintek F81865
  • Audio: 1 x 10-pin on-board header connects to the IEI audio kit
  • Watchdog Timer: Software programmable supports 1~255 sec. system reset
  • Power Supply: AT/ATX power
  • Power Consumption: 5 V@ 5.16 A, 12 V@ 0.55 A
    (Intel Dual Core Atom D525 1.80 GHz with 1066 MHz DDR3 2 GB x 2 Memory)
  • Temperature:
    -20 ~ +60°C with free air,
    -20 ~ +70°C with force air
  • Humidity: Operation: 5% ~ 95% non-condensing
  • Dimensions: 338 x 122 mm
  • Weight: GW: 1100 g
Ordering Information
  • WSB-PV-D5251-R10 - Full-size PICMG 1.0 CPU card with Intel Dual Core Atom D525 1.80GHz/1MB L2 cache, DDR3, VGA/LVDS, Dual PCIe GbE, SATA II, COM, USB 2.0 and audio, RoHS
Optional Accessories
  • AC-KIT-888HD-R10 - 7.1 channel HD Audio kit with Realtek ALC888 support dual audio streams

  • CB-USB14-RS - 4 ports USB cable

  • 32006-000300-100-RS - KB/MS Y cable

  • 32200-000052-RS - ATA 66 flat cable

  • 32102-000100-200-RS - SATA power cable

  • 19800-000400-100-RS - LPT cable

  • 2200-000017-RS - FDD cable

  • 19FTS00032100-000001-RS - CPU Fan

  • TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17



Parametry techniczne:
End of Life:
Tak
