Features
- PICMG 1.0 form factor and RoHS compliant
- Support Intel Atom D425 1.80 GHz processor
- Support 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB
- Dual PCIe Ethernet, three SATA II, and four RS-232 serial port connectors
- VGA and 18-bit single channel LVDS for dual independent display support
- TPM V1.2 hardware security function supported by TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom D425 single-core processor (1.80 GHz/512 KB L2 cache)
- System Chipset: ICH8M
- BIOS: UEFI BIOS
- System Memory: Two 204-pin 800 MHz DDR3 SDRAM SO-DIMMs supported (System max. 4 GB)
- Graphics Engine: GMA 3150
Gen3.5 DX9, 400 MHz - Ethernet: Dual PCIe Realtek RTL8111E GbE controller,
LAN1 with ASF2.0 support - Display Interface:
Analog CRT up to 2048x1536
Supports CRT hot plug
18-bit single channel LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768 - I/O Interface:
4 x RS-232
3 x SATA II
1 x IDE
1 x FDD
1 x CF Type II
1 x 5-pin on-board header for KB
1 x LPT
1 x PS/2 connector for KB/MS
7 x USB 2.0 (1 on bracket, 6 on board by pin header) - TPM: 2 x 10-pin header
- SMBus: 1 x 4-pin wafer connector
- Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output
- Infrared Interface: 1 x 5-pin infrared by pin header
- Super I/O: Fintek F81865
- Audio: 1 x 10-pin on-board header connects to the IEI audio kit
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Power Supply: AT/ATX power
- Power Consumption: 5 V@ 5.16 A, 12 V@ 0.55 A
(Intel Dual Core Atom D525 1.80 GHz with 1066 MHz DDR3 2 GB x 2 Memory) - Temperature:
-20 ~ +65°C with free air,
-20 ~ +70°C with force air - Humidity: Operation: 5% ~ 95% non-condensing
- Dimensions: 338 x 122 mm
- Weight: GW: 1100 g

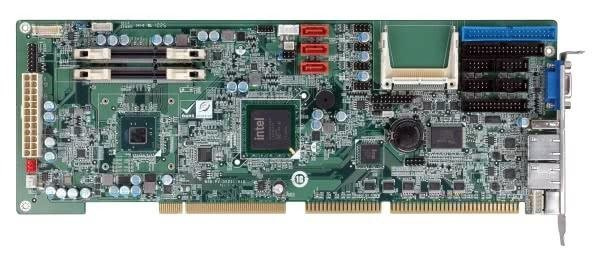

- WSB-PV-D4251-R10 - Full-size PICMG 1.0 CPU card with Intel Single Core Atom D425 1.80GHz/512KB L2 cache, DDR3, VGA/LVDS, Dual PCIe GbE, SATA II, COM, USB 2.0 and audio, RoHS
- AC-KIT-888HD-R10 - 7.1 channel HD Audio kit with Realtek ALC888 support dual audio streams
- CB-USB14-RS - 4 ports USB cable
- 32006-000300-100-RS - KB/MS Y cable
- 32200-000052-RS - ATA 66 flat cable
- 32102-000100-200-RS - SATA power cable
- 19800-000400-100-RS - LPT cable
- 2200-000017-RS - FDD cable
- 19FTS00032100-000001-RS - CPU Fan
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
Parametry techniczne:
| End of Life: | Tak |
