Features
- PICMG 1.0 form factor
- Support Intel LGA775 Core 2 Quad processor up to 1333 MHz FSB
- Dual channel DDR3 800/1066 MHz supports up to 8 GB
- Dual Intel GbE Ethernet, four SATA II, and two RS-232 serial port connectors
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA775 45nm Intel Core2 Quad, Core2 Duo, Pentium D, Celeron at FSB 800/1066/1333MHz processors
- System Chipset: Intel G41+ ICH7
- BIOS: AMI BIOS
- System Memory: Two 240-pin 4 GB (max.) 800/1066 MHz dual-channel DDR3 SDRAM DIMM supported (System max. 8 GB)
- Ethernet: Dual PCIe Intel 82583V GbE controller
- I/O Interface:
2 x RS-232
7 x USB 2.0 (1 on bracket, 6 on board by pin header)
4 x SATA II
1 x IDE
1 x FDD
1 x LPT
1 x Keyboard and mouse (PS/2)
1 x 5-pin on-board header for KB - Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output
- Infrared Interface: 1 x Infrared by pin header
- Super I/O: ITE IT8718F
- Display Interface:
VGA Integrated in Intel G41
- Audio: 10-pin on-board header connects to the IEI audio kit
- Watchdog Timer: Software programmable supports 1 ~255 sec. system reset
- Power Supply: AT/ATX power
- Power Consumption: 5 V @ 7.13 A, 12 V @ 0.27 A, 5 VBS@0.11 A, Vcore@3.02 A
running 3D Mark2001SE with Intel Core2 Duo E8500 3.16 GHz, DDR3 2 GB x 2 - Temperature: Operation: -10ºC~ 60ºC
- Humidity: Operation: 5% ~95 non-condensing
- Dimensions: 338 x 122 mm
- Weight: GW: 1100 g

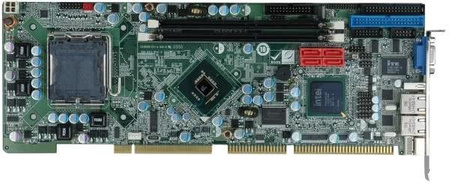

- WSB-G41A-R11 - PICMG 1.0 with Intel G41 support LGA775 Intel Core 2 Quad CPU Card With VGA,DDR3,Dual PCIe GbE,SATAII,COM,USB 2.0,RoHS
- AC-KIT-888HD-R10 - 7.1 channel HD Audio kit with Realtek ALC888 support dual audio streams
- AC-KIT08R-R10 - 5.1 channel AC'97 audio kit with Realtek ALC655
- 19800-000100-200-RS - 4-port USB cable with bracket
- CF-775A-RS - CPU cooler for 130 W
- CF-520-RS-R11 - CPU cooler for 115 W
- CF-775B-RS - 1U CPU cooler for 90 W
- 32200-000052-RS - ATA 66 flat cable
- 32102-000100-200-RS - SATA power cable
- 19800-000400-100-RS - LPT cable
- 32200-000017-RS - FDD cable
Parametry techniczne:
| End of Life: | Tak |
