Features
- PICMG1.0 and RoHS compliant
- Supports Intel LGA775 Core2 Duo processor in 45 nm Process (Wofldale) at FSB 1333/1066/800 MHz
- Intel Q35 & ICH9R Platform
- 6 SATA II with Intel Matrix storage technology supported
- Dual Broadcom PCIe GbE
- TPM1.2 IT security solution supported
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA775 45nm Intel Core2 Quad (Yorkfield), Core2 Duo (Wolfdale), Celeron at FSB800/1066/1333 MHz processors
- System Chipset: Intel Q35 + ICH9R
- BIOS: AMI BIOS
- System Memory: 4 x 240 pin DIMM socket dual channel DDRII at 800/667 MHz up to 8 GB
- Ethernet: Dual Realtek RTL8111E GbE with ASF 2.0
- IO Interface:
2 x RS-232
7 x USB2.0 (1 on bracket, 6 on board by pin header)
6 x SATA II support RAID 0, 1, 10, 5
1 x IDE
1 x FDD
1 x LPT
1 x Keyboard and mouse (PS/2)
1 x 5-pin on-board header for KB - Digital I/O: 8-bit Digital I/O, 4-bit input / 4-bit output
- Infrared Interface: 1 x Infrared by pin header
- Audio: 10-pin on-board header supports 7.1 channel HD Audio by IEI AC-KIT-888HD-R10
- Graphic:
Analog VGA output - TPM1.2: 1 x 20-pin on-board header for TPM (Trusted Platrom Module)
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Power Supply: ATX
- Power Consumption: 5 V@5.97 A, 5 Vsb@0.07 A, 12 V@0.29 A, Vcore@2.97 A
(Intel Core 2 Duo E8500 3.16 GHz, DDR2 800 MHz 2 GB x 4 running 3DMark 2001SE) - Temperature: Operation: 0 ~ +60°C (32 ~ 140°F)
- Humidity: Operation: 5% ~ 95% non-condensing
- Dimensions: 338 x 122 mm
- Weight: GW: 1.1 kg

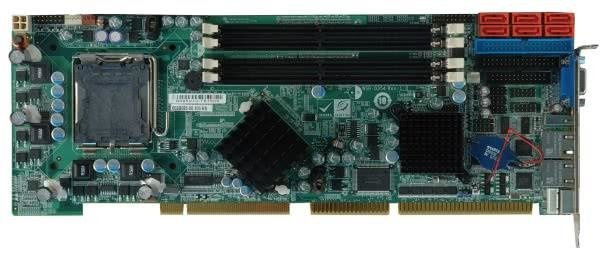

- WSB-Q354-R41 - PICMG 1.0 CPU Card supports Intel LGA 775 Core2 Duo CPU in 45 nm process at FSB800/1066/1333 MHz, Intel Q35 & ICH9R, VGA, Dual PCIe GbE, Six SATA II with RAID, IDE, FDD, LPT, USB2.0
- AC-KIT-888HD-R10 - 7.1 Channel HD audio kit with Realtek ALC888 supports dual audio streams
- CF-775A-RS - High Performance CPU cooler (92 x 92 x 73 mm, 130 W)
- CF-520-RS-R11 - High Performance CPU cooler (115 x 115 x 67 mm, 115 W)
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
- 32200-000052-RS - IDE flat cable
Parametry techniczne:
End of Life: | Tak |
