Features
- PCIe CPU card supports four PCIe x1 or one PCIe x4 and four PCI expansions
- Intel Atom D525 processor
- 1GB of DDR3 800 MHz SDRAM on board and one expansion SO-DIMM slot support
- Support VGA and 18-bit single channel LVDS with dual display support
- I/O include three RS-232, one RS-232/422/485, seven USB 2.0 and three SATA II
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom Dual Core D525 Processor (1.80 GHz with 1 MB L2 cache)
- System Chipset: ICH8M
- BIOS: UEFI BIOS
- Memory:
One 204-pin 800 MHz DDR3 SDRAM SO-DIMM supported (System max. 2 GB)
On-board 1 GB DDR3 800 MHz memory - Graphic Engine: GMA 3150
Gen3.5 DX9, 400 MHz - Ethernet: Dual PCIe GbE by Realtek RT8111E,
LAN1 with ASF2.0 support - Display Interface:
Analog CRT up to 2048x1536
Support CRT hot plug
Single Channel 18-bit LVDS support resolution up to XGA (1024x768) - I/O Interfaces:
3 x RS-232
1 x RS-232/422/485 with Auto Flow control
1 x LPT
1 x PS/2 for KB/MS
1 x CF Type II
1 x 6-pin wafer header for KB/MS
3 x SATA II
7 x USB 2.0 (6 by header, 1 on rear side) - Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit output
- Super IO: Fintek F81865
- Infrared Interface: 1 x 5-pin header
- TPM: -
- SMBus: 1 x 4-pin wafer connector
- Fan Connector: 1 x 4-pin Fan Connector
- Expansion:
4 x PCI
4 x PCIe x1 or 1 x PCIe x4 - Audio: Support 7.1 channel HD audio by IEI AC-KIT-888HD-R10 kit
- Watchdog Timer: Software programmable support 1~255 sec. system reset
- Power Consumption: 5 V@3.38 A, 12 V@0.54 A
(Intel Dual Core Atom D525 1.80 GHz with 1 GB DDR3 800 MHz Memory on board)
- Power Supply: 5 V/12 V, AT/ATX support
- Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air - Humidity: Operation: 5% ~ 95%, non-condensing
- Dimensions: 185 x 122 mm
- Weight: GW: 1000 g / NW: 250 g

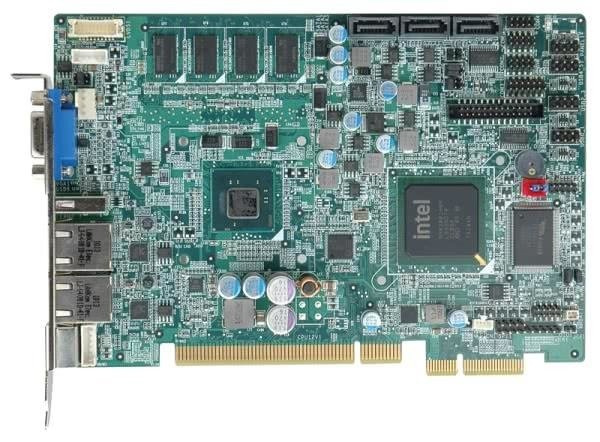

- PICOe-PV-D5251-R11 - Half-size PCIe CPU Card with Intel Atom Dual Core D525 1.80GHz/1MB L2, 1GB Memory on board, VGA/LVDS, Dual PCIe GbE, USB 2.0, SATA II and audio, RoHS
- AC-KIT-888HD-R10 - 7.1 channel HD Audio kit with Realtek ALC888 support dual audio streams
- 19800-000075-RS - KB/MS cable with bracket
- 32102-000100-200-RS - SATA power cable
- 32200-015100-RS - LPT cable
- 19FTS00032100-000001-RS - CPU fan
Parametry techniczne:
| End of Life: | Tak |
