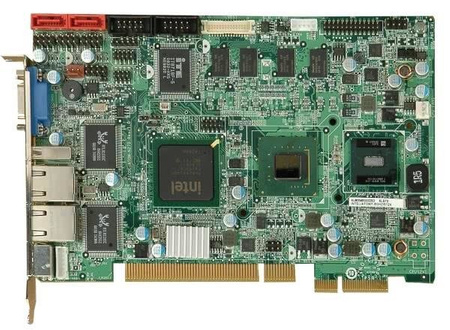

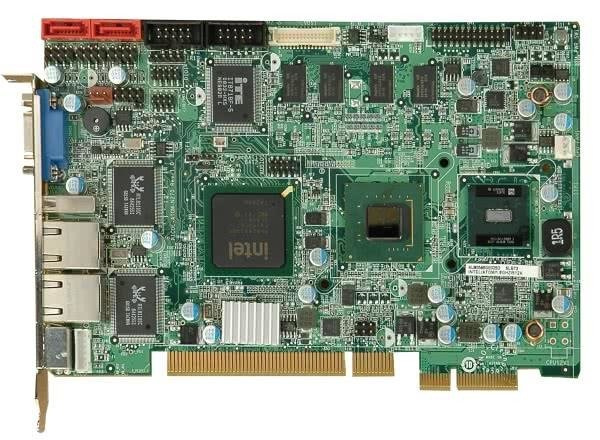

Features
- PCIe CPU card supports four PCIe x1 or one PCIe x4 and 4 x PCI expansions
- Intel Atom processor N270 at 1.6GHz core speed with a 533 MHz FSB and 512 KB L2 cache
- 512 MB of 533 MHz DDR2 SDRAM on board
- Support VGA, HDTV-out (up to 1080i) and 18-bit dual-channel LVDS with dual-display support
- I/O includes two RS-232, seven USB 2.0 and two SATA
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: On board Intel Atom N270 processor 1.6 GHz 512 KB L2 cache with a 533MHz FSB
- System Chipset: Intel 945GSE + ICH7M
- BIOS: AMI BIOS
- System Memory:
On board 512 MB DDR2 533 MHz memory and
One 200-pin 533/400 MHz DDR2 SDRAM SO-DIMM supported (system max. 2GB) - Ethernet: Dual PCI Realtek 8110SC GbE
- I/O Interface:
2 x RS-232
2 x SATA
1 x LPT
1 x CF type I/II
1 x PS/2 connector for KB/MS
7 x USB 2.0 (1 on bracket, 6 on board by pin header) - Digital I/O: 8-bit digital I/O, 4-bit input/ 4-bit output
- Infrared Interface: 1 x Infrared by pin header
- Super I/O: ITE IT8718F
- Display Interface:
VGA Intgrated in Intel 945GSE
HDTV/TV support NTSC/PAL and HDTV resolution up to 1080i
18-bit dual-channel LVDS - Audio: Support 7.1 channel HD audio or 5.1 channel AC-97 audio by IEI audio kits
- Watchdog Timer: Software programmable supports 1 ~255 sec. System reset
- Power Supply: AT/ATX Power
- Power consumption: 5 V@2.89 A, 12 V@0.22 A
(Intel Atom N270 1.6 GHz / 533 MHz CPU with 1GB DDR2 533 MHz) - Temperature: Operation: 0 ~ +60ºC ( 32 ~ 140ºF)
- Humidity: Operation: 5% ~95% non-condensing
- Dimensions: 185 x 122 mm
- Weight: GW: 1000 g / NW: 250 g
- PICOe-945GSE-N270-512MB-R10 - PCIe CPU Card with Intel Atom N270 1.6 G processor, 512 MB memory on board, VGA/LVDS/HDTV-out, Dual GbE, USB 2.0, SATA
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 support dual audio streams
- AC-KIT08R-R10 - 5.1 channel AC'97 audio kit with Realtek ALC655
- HDTVCABLESET-01 - HDTV cable set with S-Video, composite and component Interfaces
- 32102-000100-200-RS - SATA power cable
- 32200-015100-RS - LPT cable
Parametry techniczne:
| End of Life: | Tak |
