Features
- Compatible with Windows XP, Windows 7 and Linux
- Equipped with one HDMI input port
- Encoding or decoding up to 1080p HD video
- Pass through for transmitting uncompressed video up to 1080p resolution
- Captures or records HD video in H.264 format
- Playbacks the recordings on HDMI display
- SDK available for customer to create customized applications
Specifications
- Interface
- Video Input: 1 channel
- Video Input type: HDMI
- Audio Input: 1 channel
- Audio Input Type: HDMI
- Video Output: 1 channel
- Video Output Type: HDMI
- Audio Output: 1 channel
- Audio Output Type: HDMI
- Bus Interface: PCIe x1
- Loop Through: 1 channel
- Video Processing
- Video Compression: H.264/AVC High Profile Level 4.2
- Input Resolution & Frame Rate:
1920 x 1080 x 60p / 59.94p / 50p
1920 x 1080 x 60i / 59.94i / 50i
1280 x 720 x 60p / 59.94p / 50p
720 x 480 x 60i / 59.94i
720 x 576 x 50i - Record Resolution / Frame Rate / Bit Rate:
1920 x 1080 x 60p / 59.94p / 50p, encoding video bit rate from 6 to 20 Mbps
1920 x 1080 x 60i / 59.94i / 50i, encoding video bit rate from 6 to 20 Mbps
1280 x 720 x 60p / 59.94p / 50p, encoding video bit rate from 4 to 20 Mbps
720 x 480 x 60i / 59.94i, encoding video bit rate from 2 to 10 Mbps
720 x 576 x 50i, encoding video bit rate from 2 to 10 Mbps - Audio Processing
- Audio Compression: MPEG-1 Audio Layer 2
- Bit Rate: 256k
- Functionality
- Multiple Card Support: No
- HDCP Compliant: Yes
- System Requirement
- System:
x86 PC compatible computer, Intel Pentium 4 2.0 GHz or above for video record
Recommends using a DXVA or CUDA capable graphics card for real-time video playback - Memory: 1 GB or more
- OS Environment:
Microsoft Windows XP Service Pack 2 (SP2) (32-bit version)
Microsoft DirectX 9.0c (32-bit)
Microsoft .NET Framework 2.0 (32-bit version)
Linux: Fedora 10 (Kernel 2.6.27) - Software Support
- Device Driver: Compatible with Windows XP, Windows 7, Linux Kernel 2.6.27
- SDK:
Windows: Provides SDK and demo program with sample source code in C#
Linux: Provides SDK and driver/demo program with sample source code in C - Others
- Dimensions: 168 x 69 mm
- Operating Temperature: 0 ~ +65°C, non-condensing
- Power Consumption: 6.07 W (12 V@0.3 A, 3.3 V@0.72 A)
Ordering Information

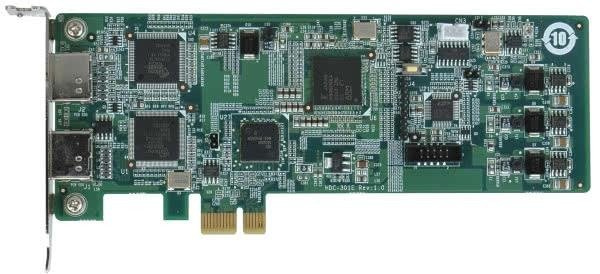

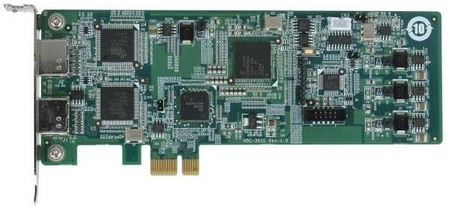

- HDC-301E-R10 - PCI Express video/audio capture card with one HDMI input channel and one HDMI output channel, 1920x1080@60p, and H.264 Hardware Codec
