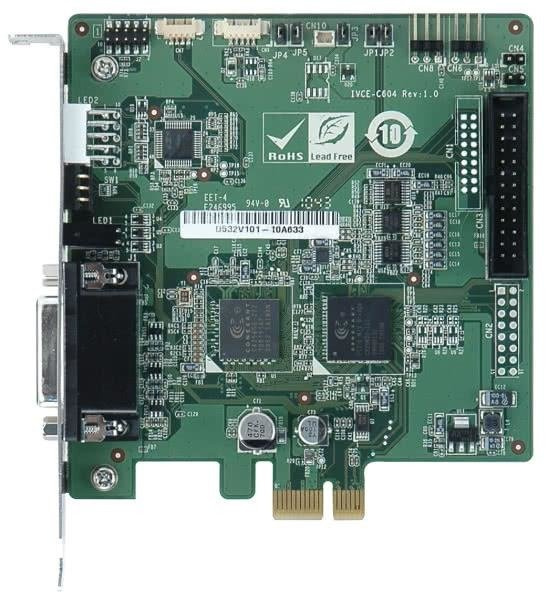

IVCE-C604

Features

• Single card 4-channel solution
• PCI Express interface provides higher bandwidth and great performance
• Compatible with Linux, Windows XP and Windows 7 (32-bit and 64-bit)
• Total 120fps @ D1 for 4 channels (NTSC)
• Supports multiple cards up to 64 channels video/ audio input
• External GPIO daughter board with 4 inputs and 4 outputs (optional)
• SDK available for customer to create customized applications
• Supports 4 channels video/audio input and 2 channels video output

Specifications

• Interface


• Video Input: 4 channels composite video NTSC/PAL auto sensing
• Video Input Type: BNC (BNC+RCA to DB-26 cable included)
• Audio Input: 4 channels
• Audio Input Type: RCA (BNC+RCA to DB-26 cable included)
• Video Output: 2 channels
• Video Output Type: BNC (BNC+RCA to DB-26 cable included)
• Bus Interface: PCIe x1
• Alarm I/O: Yes
• Card ID: Rotary switch selectable with LED for ID indication
• LED Indicator:
  Red LED for system
  Green LED for AP running
  Yellow LED for watchdog


• Video Processing


• Video Compression: Software compression
• Video Engine: 1 x Conexant CX25850
• Resolution:
  NTSC: 720 x 576, 720 x 480, 720 x 288, 720 x 240, 352 x 240, 320 x 240, 160 x 120
  PAL: 720 x 576, 720 x 480, 720 x 288, 720 x 248, 352 x 288, 352 x 240, 320 x 240, 160 x 120
• Frame Rate:
  NTSC: Total 120 fps @ D1 for 4 channels
  PAL: Total 100 fps @ D1 for 4 channels


• Audio Processing


• Audio Compression: Software compression
• Sampling Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz (hardware spec.)
• Quantization: 24-bit (hardware spec.)


• Functionality


• Video Loss Detection: Yes
• On-screen Display: Yes
• Motion Detection: Yes (hardware spec.)


• System Requirement


• System: x86 PC compatible computer, PCI Express 1 lane,
  compatible with 1, 4, 8 and 16 lane PCIe slots
• Memory: 512 MB or above


• Others


• Dimensions: 111.23 x 102.39 mm
• Operating Temperature: -5 ~ +65°C, non-condensing
• Power Consumption: 3.51 W (3.3 V@0.9 A, 12 V@0.045 A)

Ordering Information

• IVCE-C604-R10 - PCIe video/audio vapture card with 4-channel video/ audio input, total 120fps@D1 for 4 channels (NTSC)

Optional Accessories

• VIOCARD-GPIO-RS-R10 - 8 GPIO channels (4 digital inputs and 4 relay outputs)


• 32225-002200-100-RS - GPIO card to IVC capture card connection cable
