Specifications
- Interface
- Video Input: 4 channels composite video, NTSC, PAL and SECAM auto sensing
- Video Input Type: BNC
- PCI Interface: PCI Rev 2.1 compliance
- CARD ID: DIP switch selectable with LED for ID indication
- Alarm I/O: GPIO daughter board with 4 inputs and 4 outputs
- Software support
- Device Driver: Windows 98 SE, ME, 2000, XP / Linux kernel 2.4
- SDK: Provide SDK and demo program with sample source code in C++
- Video Processing
- Video Engine: 4 x Conexant Fusion BT878A
- Resolution:
NTSC: 720 x 480, 720 x 288, 720 x 240, 640 x 480, 640 x 288, 640 x 240,
352 x 288, 352 x 240
PAL / SECAM: 720 x 576, 720 x 480, 720 x 288, 720 x 240, 704 x 576, 640 x 480,
640 x 288, 640 x 240, 352 x 288 - Frame Rate:
NTSC: up to 120 fps per channel
PAL /SECAM: up to 100 fps per channel - Multiple Card Support
- System Requirement
- System: x86 compatible computer
- Graphic: DirectX compatible VGA card supporting YUV overlay mode
- Functionality
- Video Loss Detection: Yes
- Multi-screen Support: Yes
- Others
- Dimensions: 119.91 x 106.68 mm
- Operation Temperature: 0 ~ +60°C (32 ~ 140°F ), non-condensing
- Power Consumption 15 W, 3 A@5 V (with relay)
Card | Video Port | Audio Port | Support max. Channel/ Resolution | Total Frame (NTSC/PAL) |
1 | 4 | N/A | 4 channels, D1(720 x 480) | 120/100 fps |
4 | 16 | N/A | 16 channels, QVGA(320 x 240) | 480/400 fps |
Ordering Information

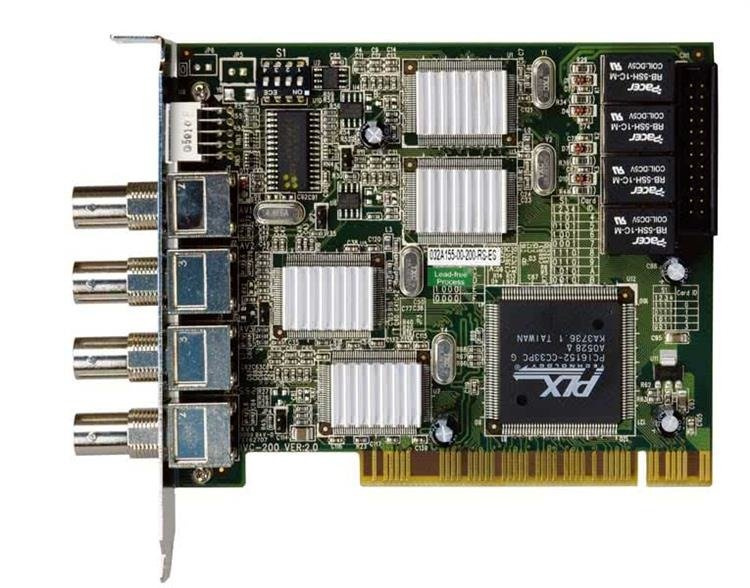

- IVC-200G-RS-R20 - PCI video capture card with four video input channels, total 120 fps@720x480 (NTSC), and GPIO daughter board
