Specifications
- Interface
- Video Input: 4 channels composite video NTSC, PAL and SECAM auto sensing
- Connector: BNC
- Audio Input: 4 channel analog audio
- Connector: DB9 to 3.5 mm phone jack audio cable
- PCIe Interface: PCI 2.1 compliance
- Card ID: Selectable with LED for ID indication
- Alarm I/O: External GPIO daughter board with 4 inputs and 4 outputs (optional)
- Software support
- Device Driver: Windows 2000, XP, Linux Kernel 2.4
- SDK: Provide SDK and demo program with sample source code in C++
- Video Processing
- Video Engine: 1 x Conexant Fusion BT878A
- Resolution:
NTSC: 720 x 480, 720 x 288, 720 x 240, 640 x 480, 640 x 288, 640 x 240
PAL / SECAM: 720 x 576, 720 x 480, 720 x 288, 720 x 240, 704 x 576, 640 x 480 - Frame Rate:
NTSC: Total 30 fps @D1 for 4 channels
PAL/SECAM: 25 fps @D1 for 4 channels - Multiple Card Support
- System Requirement
- System: x86 compatible computer
- Graphic: DirectX Compatible VGA card with YUV overlay mode supporting
- Functionality
- Video / Audio synchronization: Yes
- Video Loss Detection: Yes
- Motion Detection: Hardware Build-in
- Watermarking: 128-bit secrete key, adjustable length
- Others
- Dimensions: 95.89 x 90.17 mm
- Operation Temperature: 0 ~ +60°C, non-condensing
- Power Consumption: 3.5 W@5 V (with relay)
Card | Video Port | Audio Port | Support max Channel/Resolution | Total Frame (NSTC/PAL) |
1 | 4 | N/A | 4 channels, D1(720 x 480) | 30/25 fps |
4 | 16 | N/A | 16 channels, D1(720 x 480) | 120/100 fps |

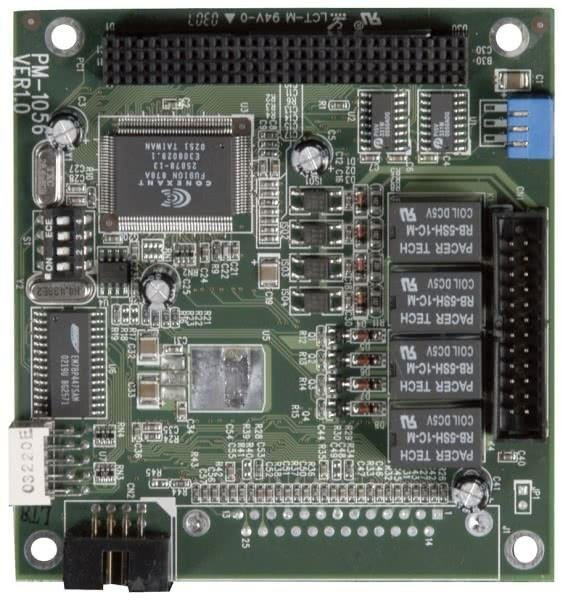

- PM-1056-4PB-RS-R21 - PCI-104 video capture card with four video input channels, total 30 fps@720x480 (NTSC), and VIN-KIT-01
