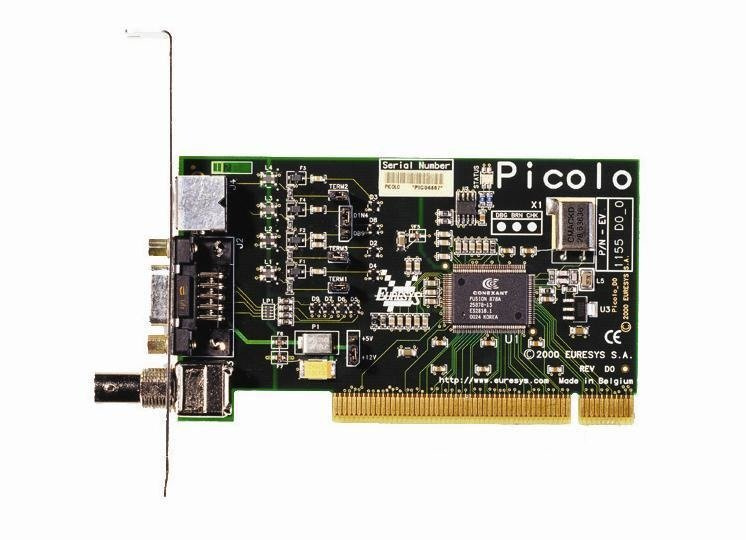

Picolo - tania karta PCI akwizycji obrazu (framegrabber) do kamer z interfejsem analogowym
Picolo is a very low-cost PCI capture board optimized for single camera applications. It supports the acquisition and the real-time transfer of full resolution color images or sequences of images to the PC memory. Picolo captures one or two composite video signals and one S-Video signal. The square-pixel resolution (640 x 480 or 768 x 576) is achieved at full frame rate (30 or 25 fps). Picolo is the ideal capture board for cost-sensitive applications in the fields of machine vision, access control, x-ray inspection.
Video Capture Boards: PICOLO Picolo series general features
Up to three cameras can be connected. Picolo acquires images from any one of them. This table shows the allowed multiple cameras configurations.
TTL I/O lines
Four TTL-compatible input / output lines are available on the female DB9 connector. One line can be configured as an external acquisition trigger.
Characteristics
PCI: 32 bits, 33 MHz, 5 V
Size: 121 mm x 70 mm / 4.76 in x 2.76 in
Typical power consumption: 1 W (200 mA @ 5 V)
Certification: FCC class B and CE
Picolo is a very low-cost PCI capture board optimized for single camera applications. It supports the acquisition and the real-time transfer of full resolution color images or sequences of images to the PC memory. Picolo captures one or two composite video signals and one S-Video signal. The square-pixel resolution (640 x 480 or 768 x 576) is achieved at full frame rate (30 or 25 fps). Picolo is the ideal capture board for cost-sensitive applications in the fields of machine vision, access control, x-ray inspection.
Video Capture Boards: PICOLO Picolo series general features
- Suitable for single camera systems
- Low-cost
- Industrial and video surveillance applications
- Software support:
- DirectShow filters
- MultiCam drivers for Microsoft WindowsR and Linux
Up to three cameras can be connected. Picolo acquires images from any one of them. This table shows the allowed multiple cameras configurations.
| CONNECTOR | Configuration 1 | Configuration 2 | Configuration 3 |
| S-Video | 1 S-Video | - | 1 S-Video |
| DB9 | 1 composite | 2 composite | - |
| BNC | 1 composite | 1 composite | 1 composite |
TTL I/O lines
Four TTL-compatible input / output lines are available on the female DB9 connector. One line can be configured as an external acquisition trigger.
Characteristics
PCI: 32 bits, 33 MHz, 5 V
Size: 121 mm x 70 mm / 4.76 in x 2.76 in
Typical power consumption: 1 W (200 mA @ 5 V)
Certification: FCC class B and CE
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
