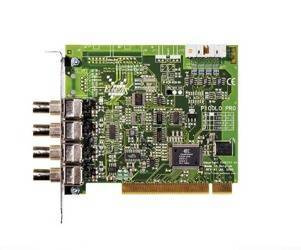

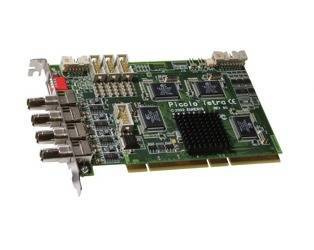

Rozszerzenie I/O do Pro3 i Tetra

MIO jest jednym z elementów modularnej architektury serii PICOLO. Dołączony do kart PICOLO Pro 3 oraz PICOLO Tetra rozszerza ich funkcje o dodatkowe konfigurowalne izolowane logiczne wejścia i wyjścia.

Features:

• Picolo series general features
• 4 input and 4 output isolated lines
• Alarm or Watchdog signaling features
• Removable screw-terminal block
• Monitoring LEDs
• MultiCam drivers for Microsoft WindowsR and Linux

4 input and 4 output isolated lines
MIO offers four opto-isolated input and four reed relay output lines. They are natively supported by the MultiCam driver. Each input line is interrupt-capable, with independent edge sensitivity control. The status of the lines is monitored by eight dedicated LEDs.

MIO Module - alarm or watchdog signaling features
The fourth relay output can be configured as an alarm, a watchdog or a standard output. In alarm mode, as long as the application is not started, the relay remains open. Once operating correctly, the application closes the relay. In watchdog mode, as long as the application is not started, the relay remains open. Once operating correctly, the application resets regularly the watchdog timer. If a watchdog time out occurs, the relay is closed.

Removable screw-terminal block
Each line is available as a pair of electrical wires on the removable sixteen-terminal block.



Characteristics
Size 58 mm x 107 mm / 2.28 in x 4.21 in
Typical power consumption 1.8 W (150 mA @ +12 V)
Certification FCC class B and CE
