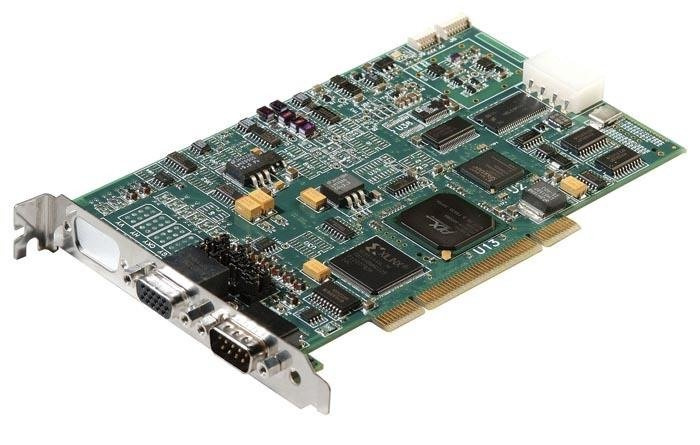

Domino Iota - wysokiej klasy, oszczędna analogowa karta PCI akwizycji obrazów (framegrabber) dla jednej kamery - idealna do zastosowań przy inspekcji szybko poruszających się obiektów.
The Domino Iota is a high-quality and cost-effective board with one camera connector. It acquires images from a monochrome analog camera. This single-camera frame grabber is an ideal solution for cost-sensitive applications inspecting fast moving objects.
Features:
The Domino Iota is equipped with an 8-bit A/D converter. The maximum sampling rate of 32 MHz allows the board to support double-speed cameras. This Domino frame grabber offers one 8-bit input look-up table and a programmable input filter (20, 10 or 5 MHz). The controls of the gain and offset are also programmable.
Camera and I/O connectors
The Domino Iota bracket offers:
Camera support
Beside standard CCIR and RS170 cameras, the Domino Iota supports any kind of single tap analog camera: with progressive or interlaced scanning, synchronous timing or asynchronous reset, shutter control or strobe control. The high-resolution capability of the board is compatible with top-notch analog cameras (mega-pixel cameras are supported). A multi-mode synchronization system is available and includes the pixel clock and PLL locking. The Domino series boards interface a wide range of cameras from many manufacturers. An up-to-date list is available on the Interfacing Cameras pages.
32-bit 33 MHz PCI bus
The Domino Iota is 32-bit, 33 MHz PCI bus frame grabbers with 3V or 5V signaling. Direct Memory Access and PCI bus mastering are supported.
The Domino Iota is a high-quality and cost-effective board with one camera connector. It acquires images from a monochrome analog camera. This single-camera frame grabber is an ideal solution for cost-sensitive applications inspecting fast moving objects.
Features:
- Domino series general features
- One camera connector for:
- One single-tap camera
- Multi-mode synchronization system, including pixel clock and PLL locking
- One 8-bit 32 MHz A/D converter
- PCI bus: 32 bits, 33 MHz, 3 V or 5 V signaling
- MultiCam drivers for Microsoft WindowsR and Linux
The Domino Iota is equipped with an 8-bit A/D converter. The maximum sampling rate of 32 MHz allows the board to support double-speed cameras. This Domino frame grabber offers one 8-bit input look-up table and a programmable input filter (20, 10 or 5 MHz). The controls of the gain and offset are also programmable.
Camera and I/O connectors
The Domino Iota bracket offers:
- one HD15 video connector
- one DB9 connector
Camera support
Beside standard CCIR and RS170 cameras, the Domino Iota supports any kind of single tap analog camera: with progressive or interlaced scanning, synchronous timing or asynchronous reset, shutter control or strobe control. The high-resolution capability of the board is compatible with top-notch analog cameras (mega-pixel cameras are supported). A multi-mode synchronization system is available and includes the pixel clock and PLL locking. The Domino series boards interface a wide range of cameras from many manufacturers. An up-to-date list is available on the Interfacing Cameras pages.
32-bit 33 MHz PCI bus
The Domino Iota is 32-bit, 33 MHz PCI bus frame grabbers with 3V or 5V signaling. Direct Memory Access and PCI bus mastering are supported.
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
