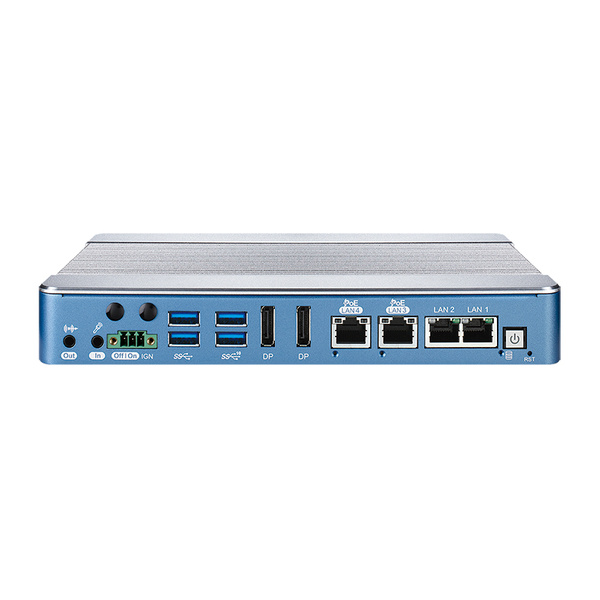

ABP-3000 AI is powered by 8th Gen Intel® Core™ U-series processor delivering up to 40% greater productivity than the former generation. ABP-3000 AI features a fanless and cable-less design making it ideal for space-limited environments. Incorporating with AI accelerator to support up to 26 Tera-Operations Per Second (TOPS), ABP-3000 AI provides high-performance computing capability to fulfil the needs of AI applications. In addition, ABP-3000 AI is packed full of interfaces including dual independent DisplayPorts display up to 4K resolution, 4 port USB 3.1, 4 GigE LAN with 2 PoE+ and 4 COM port. Featuring an extended operating temperature range of 0°C to 60°C and 9V to 50V power input make APB-3000 AI a trusted solution for Machine Vision, In-vehicle Computing, ARM/AGV and Intelligent Control applications, or any Industry 4.0/AIoT applications.
Cechy
- 8th Generation Intel® Core™ U-series processor (Whiskey Lake) supports up to 40% greater productivity than former generation
- Ultra-slim and cableless design supports wide range temperature of 0°C to 60°C with fanless operation
- Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W
- 2 DDR4 2400MHz memory, up to 64GB
- 4-port USB 3.1 support up to 10Gbps data transfer
- 4 Independent GigE LAN with 2 IEEE 802.3at PoE+
- SIM Socket for 5G/WiFi/4G/3G/LTE/GPRS/UMTS
- 4 COM RS-232/422/485, 16 Isolated DIO
- 9V to 50V DC wide range Power Input
- Ignition Power Control, TPM 2.0
- Expansion : M.2 Key B, M.2 Key E and Mini PCIe
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Modele
- ABP-3000-8665U - Core i7-8665UE
- ABP-3000 AI-8665U - Core i7-8665UE + Akcelerator AI Hailo-8
- ABP-3000-8145U - Core i3-8145UE
- ABP-3000 AI-8145U - Core i3-8145UE + Akcelerator AI Hailo-8
Akcesoria
- DDR4 32G - Certified DDR4 32GB 2666MHz RAM
- DDR4 16G - Certified DDR4 16GB 2666/2400/2133 MHz RAM
- DDR4 8G - Certified DDR4 8GB 2666/2400/2133 MHz RAM
- DDR4 4G - Certified DDR4 4GB 2666/2400/2133 MHz RAM
- PWA-120WM4P - 120W, 24V, 90V AC to 264V AC Power Adapter with 4-pin Mini-DIN Connector
- M.2 Storage Module - M.2 Key M/Key B PCIe Storage Module
- TMK2-20P-100 - Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm
- TMK2-20P-500 - Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm
- TMB-TMBK-20P - Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting
- 5G Module - 5G Module with Antenna
- 4G Module - 4G/GPS Module with Antenna
- WiFi & Bluetooth - WiFi & Bluetooth Module with Antenna
Specyfikacja
| System | |
| Processor | Quad Core Intel® Core™ i7-8665UE/i3-8145UE Processor (Whiskey Lake) |
| Chipset | Intel® SoC (Cannon Lake) |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2400MHz SO-DIMM, up to 64GB |
| AI Accelerator | |
| Processor | Hailo-8™ AI Processor, up to 26 TOPS |
| Framework | TensorFlow, ONNX |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8kV) |
| USB | 4 USB 3.1 (External) |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| LED | HDD, PoE+ |
| SIM Card | 2 Internal SIM Card Socket |
| Expansion | |
| M.2 |
-1 M.2 Key E Socket (PCIe x1)
-1 M.2 Key B Socket (PCIe x2/USB 3.1)
|
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card |
| Graphics | |
| Graphics Processor | Intel® UHD Graphics 620 |
| Interface | 2 DisplayPort : Up to 4096 x 2304 @60Hz |
| Storage | |
| M.2 | 1 M.2 Key B Socket (PCIe x2/SATA) |
| Audio | |
| Audio Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | GigE LAN by Intel® Ethernet Controller I350 |
| LAN 2 | GigE LAN by Intel® Ethernet Controller I350 |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 with Power On/Off Control |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I350 with Power On/Off Control |
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | Mini DIN |
| Ignition Control | 16 Mode |
| Remote Switch | 3-pin Terminal Block : On, Off, IGN |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension (W x L x H) | 224.0mm x 149.0mm x 32.6mm (8.82" x 5.87" x 1.28") |
| Weight | 1.4 kg (3.09 lb) |
| Environment | |
| Operating Temperature | 0°C to 60°C (-32°F to 140°F) |
| Storage Temperature | 0°C to 70°C (-32°F to 158°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @60°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
