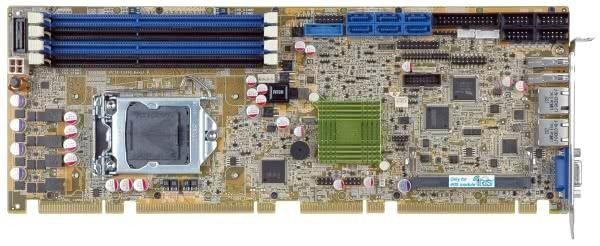

Karta procesorowa PICMG 1.3 - SPCIE-C2260-i2

  • Karta PICMG 1.3 SBC z podstawką LGA1150 dla procesorów 22 nm Intel Xeon E3, Core i3, VGA/iDP, 2 x GbE, 4 x RS-232, 1 x 422/485, 4 x USB 3.0, 8 x USB 2.0, 6 x SATA-3 z RAID i HD-audio
  • Karta procesorowa PICMG 1.3 - SPCIE-C2260-i2
Karta PICMG 1.3 SBC z podstawką LGA1150 dla procesorów 22 nm Intel Xeon E3, Core i3, VGA/iDP, 2 x GbE, 4 x RS-232, 1 x 422/485, 4 x USB 3.0, 8 x USB 2.0, 6 x SATA-3 z RAID i HD-audio



Features
  • PICMG 1.3 full-size server grade solution
  • LGA1150 Intel Xeon E3, Core i3, Pentium or Celeron processor supported
  • Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB
  • Supports dual independent display by VGA and iDP interface
  • Supports PCIe Mini devices and mSATA via PCIe Mini socket
  • Intel PCIe GbE with Intel AMT 9.0 support
  • Supports RAID function via SATA 6 Gb/s
  • TPM V1.2 hardware security function supported by TPM module
  • Stiffener bars
  • IEI jumper-less function
  • Support IPMI 2.0 via iRIS-2400 module
Specifications
  • CPU: LGA1150 Intel Xeon E3, Core i3, Pentium or Celeron processor supported
  • System Chipset: Intel C226
  • Memory: Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC unbuffered DIMMs support up to 32 GB memory
  • BIOS: UEFI BIOS
  • Graphics Engine:
    • Intel HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2
    • Full MPEG2, VC1, AVC Decode
  • Display Output:
    • VGA (up to 1920x1200 @ 60 Hz)
    • iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
  • Ethernet:
    • GbE1: Intel I217LM with Intel AMT 9.0 support
    • GbE2: Intel I210-AT PCIe controller with NCSI support
  • Super I/O: Fintek F81866
  • I/O Interface:
    • 4 x RS-232
    • 1 x RS-422/485
    • 1 x LPT
    • 4 x USB 3.0 (2 by rear IO, 2 by pin header)
  • • 8 x USB 2.0 (4 by pin header, 4 by backplane pin header)
    • 6 x SATA 6 GB/s (RAID 0, 1, 5, 10 supported)
    • 1 x 6-pin wafer for KB/MS
    • 1 x mSATA (colay SATA port 6) (support SATA 6 GB/s signal only)
  • Front Panel: 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
  • LAN LED: 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
  • Audio: Supported by IEI AC-KIT-892HD Audio Kit
  • TPM: 1 x 20-pin (2x10) header
  • SMBus: 1 x 4-pin wafer
  • I2C: 1 x 4-pin wafer
  • Infrared Interface: 1 x 5-pin header
  • iRIS Remote Management Module: 1 x iRIS-2400 slot
  • Expansion:
    • PCIe signal and PCI signal via golden finger
    • PCI signal by ITE IT 8892 (PCIe to PCI bridge)
    • 1 x Full-size PCIe Mini card slot (colay mSATA)
  • Watchdog Timer: Software programmable, support 1~255 sec. system reset
  • Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
  • Fan Connector:
    • 1 x 4-pin smart fan connector (CPU fan)
    • 1 x 4-pin smart fan connector (system fan)
  • Power Supply: 5 V/12 V, AT/ATX support
  • Power Consumption: 5 V@3.55 A, 12 V@0.37 A, Vcore_12 V@7.61 A, 3.3 V@1.55 A, 5 Vsb@0.13 A
    (Intel E3-1240 v3 3.4 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
  • Operating Temperature: -20 ~ +60°C
  • Operating Humidity: 5 ~ 95%, non-condensing
  • Dimensions: 338 x 126 mm
  • Weight: GW 1200 g / NW: 420 g
Ordering Information
  • SPCIE-C2260-i2-R10 - Full-size PICMG 1.3 CPU card supports LGA1150 Intel Xeon E3, Core i3, Pentium and Celeron per Intel C226, DDR3, VGA, iDP, Dual Intel PCIe GbE, SATA 6 Gb/s, mSATA, RS-232, PCIe Mini, HD Audio, iRIS-2400 and RoHS
Optional Accessories
  • iRIS-2400-R10 - IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface

  • 32200-074800-RS - RS-422/485 cable, 200 mm

  • 19800-010500-100-RS - USB 3.0 cable 457 mm with bracket

  • 19800-000075-RS - KB/MS cable with bracket

  • 32102-000100-200-RS - SATA power cable, MOLEX 5264-4P to SATA15P

  • 32200-015100-RS - LPT cable

  • CF-1150SB-R10 - Special cooler kit for LGA1150, high-performance compatible, 65 W

  • CF-1150SC-R10 - Special cooler kit for LGA1150, 1U chassis compatible, 65 W

  • CF-1150SE-R10 - Special cooler kit for LGA1150, high-performance compatible, 95 W

  • DP-DVI-R10 - DisplayPort to DVI-D converter board (for IEI iDP connector)

  • DP-HDMI-R10 - DisplayPort to HDMI converter board (for IEI iDP connector)

  • DP-LVDS-R10 - DisplayPort to LVDS converter board (for IEI iDP connector)

  • DP-VGA-R10 - DisplayPort to VGA converter board (for IEI iDP connector)

  • DP-DP-R10 - DisplayPort to DisplayPort converter board (for IEI iDP connector)

  • AC-KIT-892HD-R10 - 7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams

  • TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17



Parametry techniczne:
Standard:
PICMG 1.3 Full-Size
Generacja procesora:
4
Obsługiwane procesory:
Intel® Xeon® E3
,
Intel® Core™ i3
,
Pentium®
,
Celeron®
Rodzaj chłodzenia:
Brak
Socket:
LGA 1150
Chipset:
Intel® C226
Pamięć RAM:
Niezainstalowana
Rodzaj pamięci RAM:
DDR3 DIMM
,
DDR3L DIMM
Maksymalna pamięć RAM:
32GB
Ilość slotów RAM:
4
Szeroki zakres zasilania wejściowego:
Nie
Zasilanie:
5V/12V
,
AT/ATX
Zakres temperatur pracy:
Rozszerzony
Temperatura pracy:
-20ºC ~ 60ºC
Funkcje dodatkowe:
Watchdog Timer
,
RAID 0/1/5/10
,
Intel® Active Management (iAMT)
Sygnał dla złącz rozszerzeń (przez plater):
PCIe x16
,
PCIe x4
,
4x PCI
Złącza
Porty COM:
5
Porty USB:
12
RS-232:
4
RS-422/485:
1
USB 3.0:
4
USB 2.0:
8
LAN:
2
VGA:
1
iDP:
1
SATA III:
6
PCIe Mini:
1
KB/MS:
1
Audio:
1
LPT:
1
Infrared Interface:
1
Digital I/O:
8-bit digital I/O
SMBus:
1
I²C:
1
TPM:
1
Inne
iRIS-2400:
Opcjonalnie
Waga netto(kg):
0.42
Waga brutto(kg):
1.2

Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
