Features
- 4-channel Analog Output
- 4 kV ESD Protection
- 3 V/m Radiated Protection
- Dual Watchdog
- Power On Value Setting
- Safe Value Setting
- 3000 Vdc Intra-Module Isolation, Field to Logic
- A Wide Range of Operating Temperature: -25 ~ +75 °C
- RoHS Compliance
- Analog Output
- Output Channels: 4
- Output Type:
0 ~ +5 V, +/- 5 V, 0 ~ +10 V, +/- 10 V,
0 ~ +20 mA, +4 ~ +20 mA - Resolution: 14-bit
- Accuracy: +/- 0.1% of FSR
- Zero Drift:
Voltage: +/-30 μV/ °C
Current: +/-0.2 μA/ °C - Span Drift: +/- 20 ppm/°C
- DA Output Response Time: 10 ms per channel
- Programmable Output Slope:
0.125 to 2048 mA/ second
0.0625 to 1024 V/ second - Voltage Output Capability: 10 V@20 mA
- Current Load Resistance:
External +24 V: 1050 Ohms - Power-Up and Safe Value: Yes
- Intra-module Isolation, Field to Logic: 3000 Vdc
- Watchdog
- Dual Watchdog: Yes, Module (1.6 sec) and Communication (Programable)
- Safe Value (When Host Fail or Communication Fail): Yes
- Power ON Preset Value: Yes
- LED Display
- 1 LED as Power/Communication Indicator
- Power
- Power Consumption:
Typical: 1.1 W
Maximum: 3.2 W (4 Channels output 20 mA at 10 V) - EMS Protection
- ESD (IEC 61000-4-2): 4 kV contact for each channel
- RS (IEC 61000-4-3): 5V/m, 80 MHz ~ 1 GHz
- Environment
- Operating Temperature: -25 ~ +75 °C
- Storage Temperature: -40 ~ +85 °C
- Humidity: 10 ~ 90% RH, non-condensing
- Dimensions (W x L x H)
- 30 x 102 x 115 mm

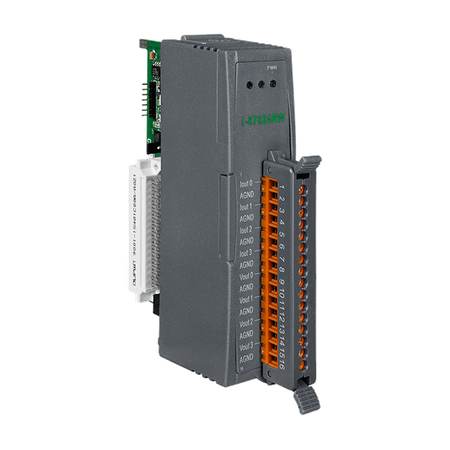

- I-87024RW-G CR – 4-channel 14-bit analog output module with RF Immunity (Gray Cover) (RoHS)
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
