Features
- Source Type Digital Outputs
- Photo Couple Isolation
- 4 kV ESD Protection
- Dual Watchdog
- Power On Value Setting
- Safe Value Setting
- Short Circuit Protection
- 3750 Vdc Intra-Module Isolation
- Wide Operating Temperature Range: -25 ~ +75 °C
- RoHS Compliance
- Digital Output
- Output Channels: 16
- Type: Open Emitter (Source/PNP)
- Max Load Current: 700 mA per channel
- Load Voltage: +10 ~ +40 Vdc
- Overvoltage Protection: 47 Vdc
- Overload Protection: Yes
- Short Circuit Protection: Yes
- Power-on Value: Yes, Programmable
- Safe Value: Yes, Programmable
- Interface
- Interface: RS-485
- Format: N, 8, 1
- Baud Rate: 1200 ~ 115200 bps
- Watchdog
- Dual Watchdog: Yes, Module (1.6 seconds) and Communication (Programable)
- LED Display
- 1 LED as Power/Communication indicator
- 16 LEDs as Digital Input Indicators
- Power
- Power Consumption: 0.41 W
- Environment
- Operating Temperature: -25 ~ +75 °C
- Storage Temperature: -40 ~ +85 °C
- Humidity: 10 ~ 90% RH, Non-condensing
- Dimensions (W x L x H)
- 30 x 102 x 115mm

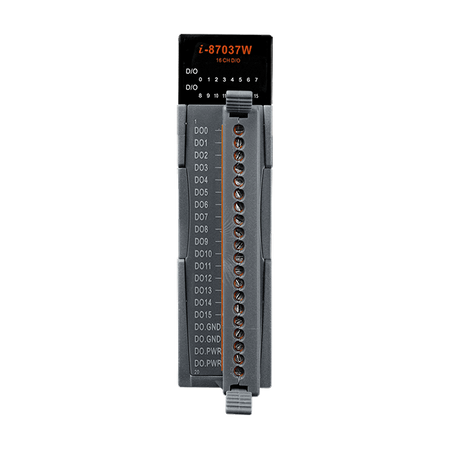

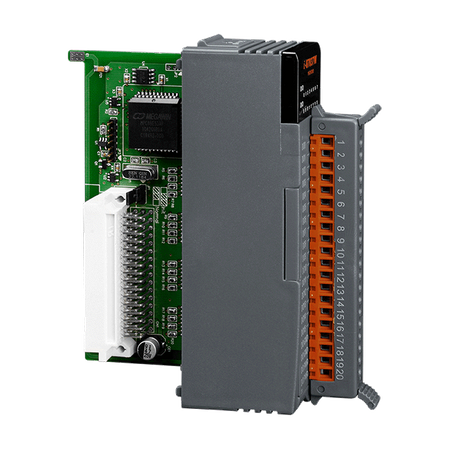

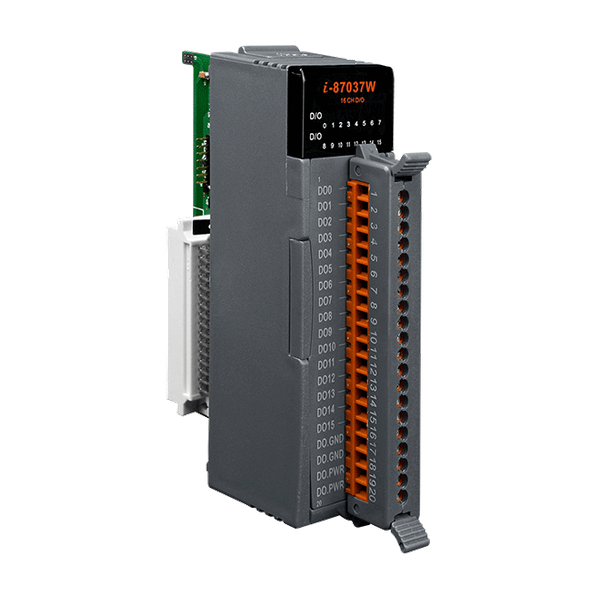

- I-87037W CR – 16-channel source type Isolated Digital Output Module(RoHS)
