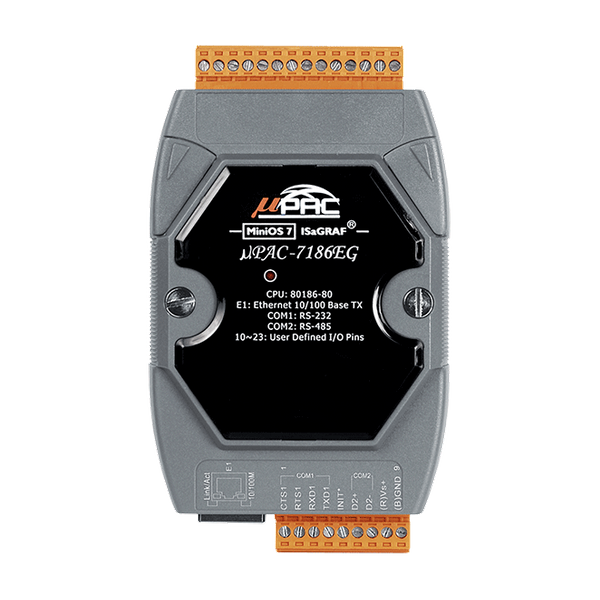

The uPAC-7186EG Series (uPAC-7186EG, uPAC-7186EGD) is a palm-size PAC and includes ISaGRAF SoftLogic. It has one 10/100 Base-TX Ethernet port, one RS-232 port, and one RS-485 port. The user can choose an I/O expansion board, X-Board, to expand the I/Os or memories of uPAC. uPAC-7186EG support Modbus Serial protocol, Modbus TCP/IP protocol, Modbus Master protocol, Remote I/O, Fbus, Ebus, SMS: Short Message Service, modem link, MMICON/LCD, ZigBee wireless communication, GPS application, FRnet, CAN remote I/O connection and user-defined protocol.
Parametry techniczne:
OS: | MiniOS7 |
Protokół: | NET ID ,
Modbus TCP/IP Slave ,
Modbus RTU/ASCII Master ,
Modbus RTU Slave ,
DCON Protocol ,
User-defined Protocol ,
I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O ,
Send Email ,
Fbus ,
Ebus ,
SMS ,
CAN/CANopen |
Development: | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
CPU: | 80186, 80 MHz |
64-bit Hardware Serial Number: | Yes |
EEPROM: | 16 KB |
Flash: | 512 KB |
NVRAM: | 31 Bytes |
SRAM: | 640 KB |
Real Time Clock: | Provide seconds, minutes, hours, dates, day of week, month, year |
Watchdog Timer: | Yes |
Status: | 1x System ,
1x PoE |
I/O Type: | X-board |
Porty: | 1x RS-232, Non-isolated ,
1x RS-485, Non-isolated ,
1x RJ-45, 10/100 Base-TX |
Szybkość transmisji: | 115200 bps Max. |
Input Range: | +10 ~ 30 VDC |
Konsumpcja: | 2.0 W |
Wymiary (mm): | 72x 123x 35 (Wx Hx D) |
Installation: | DIN-Rail Mounting |
Temperatura pracy: | -25 ~ +75°C |
Temperatura przechowywania: | -40 ~ +80 °C |
Wilgotność: | 5 ~ 90 % RH, Non-condensing |
