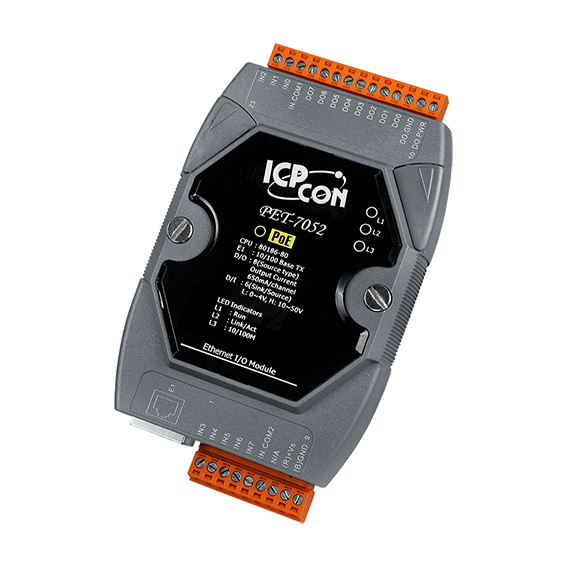

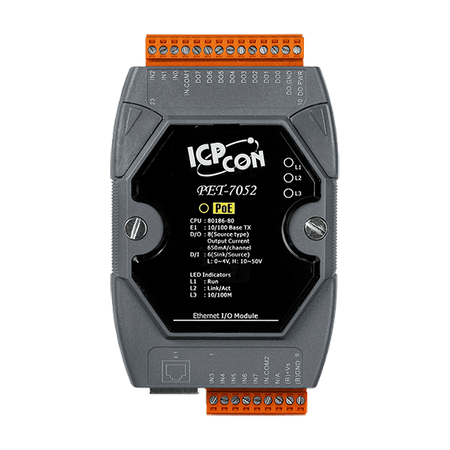

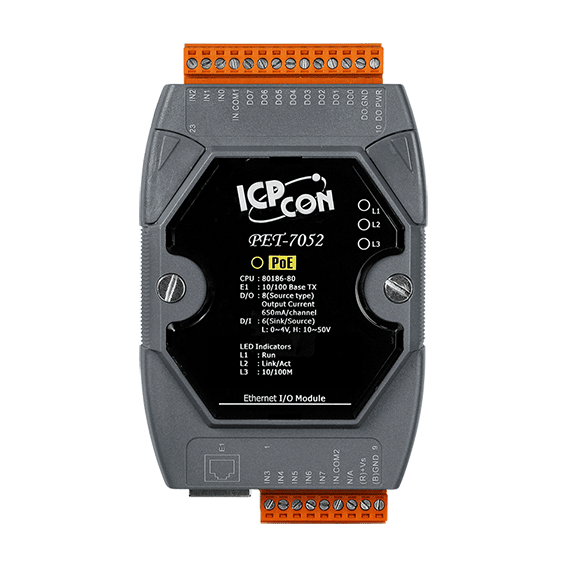

PET-7052

PET-7052 to przemysłowy moduł I/O z interfejsem komunikacyjnym Ethernet z możliwością zasilania PoE. Posiada 8 izolowanych wejść cyfrowych z 32-bitowymi licznikami i 8 izolowanych wyjść cyfrowych. Do komunikacji wykorzystuje protokół Modbus TCP / UDP, posiada także wbudowany serwer www, webHMI

• PoE and Regular Ethernet Options
• Built-In Web Server
• Web HMI
• Modbus/TCP, Modbus/UDP Protocol
• Communication Security
• Dual Watchdog
• Operating Temperature: -25 ~ +75°C
• I/O Pair Connection
• Built-In I/O:
  DI/Counter: 8 Channels
  DO: 8 Channels

• Software


• Built-In Web Server: Yes
• Web HMI: Yes
• I/O Pair Connection: Yes


• Digital Input/Counter


• Input Channels: 8
• Type: Wet Contact (Sink, Source)
• On Voltage Level: +10 ~ +50 Vdc
• Off Voltage Level: +4 Vdc max.
• Input Impedance: 10 kΩ
• Counters:
  Max. Count: 4,294,967,285 (32 bits)
  Max. Input Frequency: 500 Hz
  Min. Pulse Width: 1 ms
• Overvoltage Protection: +70 Vdc


• Digital Output


• Output Channels: 8
• Type: Open Collector (Source)
• Max. Load Current: 650 mA/channel at 25 °C
• Load Voltage: +10 ~ +40 Vdc
• Overvoltage Protection: 47 Vdc
• Overload Protection: -
• Short-circuit Protection: Yes
• Power On Value: Yes, Programmable
• Safe Value: Yes, Programmable


• Communication


• Ethernet Port: 10/100 Base-TX with Auto MDI/MDI-X
• Protocol: Modbus/TCP, Modbus/UDP
• Security: ID, Password and IP Filter
• Dual Watchdog: Yes, Module (0.8 second), Communication (Programmable)


• LED Indicators


• L1 (System Running): Yes
• L2 (Ethernet Link/Act): Yes
• L3 (Ethernet 10/100 M Speed): Yes
• PoE Power: Yes


• 2 Way Isolation


• Ethernet: -
• I/O: 3750 Vrms


• EMS Protection


• ESD (IEC 61000-4-2): 4 kV Contact for each terminal
• EFT (IEC 61000-4-4): +/-2 kV for Power


• Power Requirements


• Reverse Polarity Protection: Yes
• Powered from terminal block: Yes, 12 ~ 48 Vdc
• Powered from PoE: Yes, IEEE 802.3af, Class1
• Consumption: 4.3 W


• Mechanical


• Dimensions (W x L x D): 72 x 123 x 35 mm
• Installation: DIN-Rail or Wall mounting


• Environment


• Operating Temperature: -25 ~ +75°C
• Storage Temperature: -30 ~ +80°C
• Humidity: 10 ~ 90% RH, non-condensing

• PET-7052 CR – 8-channel DI and 8-channel DO with 32-bit Counters Module PoE Module (RoHS)
