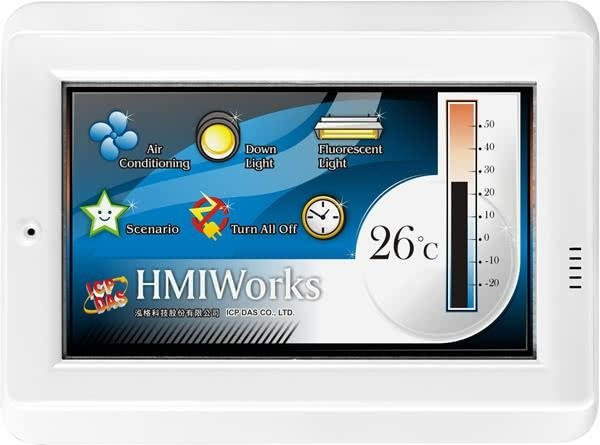

TPD-430-EU

  • Panel operatorski 4,3" 480x272x16 400 cd/m2 z ekranem dotykowym, RTC, 16 MB RAM, 8 MB Flash, RS-485 i USB 1.1; do montażu w europejskich puszkach instalacyjnych 86 x 86 mm
  • TPD-430-EU
Features
  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • RS-485 (including Self-Tuner)
  • RTC (Real Time Clock)
  • Speaker
  • WYSIWYG (What You See Is What You Get) GUI design
  • Free HMIWorks development tool
  • Supports the popular C programming language
  • Supports Ladder Designer
  • ESD Protection: 4 kV
  • Operating temperature: -20 ~ +70°C
Specifications
  • CPU Module

    • CPU: 32-bit RISC CPU
    • Memory Expansion: 16 MB SDRAM/8 MB Flash
      The external (expanded) 8 MB flash is used only for firmware storage.
    • Real Time Clock (RTC): Yes
    • Speaker: Yes
    • Rotary Switch (0~9): Yes

  • Communication Interface

    • Serial Port: RS-485 (including Self-Tuner)
    • USB 1.1 Client: Firmware updates only

  • MMI (Main Machine Interface)

    • LCD: 4.3" TFT(Resolution 480 X 272 X 16), defective pixels <= 3
    • Backlight Life: 20,000 hours
    • Brightness: 400 cd/m2
    • Touch Panel: Yes
    • LED Indicator: Yes
    • Reset Button: Yes

  • Electrical

    • Power Input Range: +10 ~ +30 Vdc
    • Power Consumption: 2.5 W (104 mA @ 24 Vdc)

  • Mechanical

    • Dimensions (W x L x H): 126 x 82 x 24 mm 126 x 92 x 29 mm
    • Installation: Wall Mounting
      (Suitable for the European 86 x 86 mm outlet box)
    • Ingress Protection: Front Panel: IP40

  • Environmental

    • Operating Temperature: -20 ~ +70°C
    • Storage Temperature: -30 ~ +80°C
    • Ambient Relative Humidity: 10 ~ 90% RH, non-condensing
Ordering Information
  • TPD-430-EU CR – 4.3" Touch HMI device with RS-485, USB, RTC, Suitable for the European 86 x 86 mm Outlet Box (RoHS)
Optional Accessories
  • 4PCD-001 – TouchPAD Accessory Package -Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m cable), 1C016 (2.4 mm Screw driver), a software CD; supported models: TPD-280U, TPD-430, TPD-430-EU

  • CA-USB10 – USB to 5P Mini-USB, 28AWG, 1.5 m cable

  • 1C016 – 2.4 mm Screw driver
