Features
- PoE (Power over Ethernet)
- Modbus TCP, Modbus RTU and DCON protocol
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- RTC (Real Time Clock)
- Speaker or buzzer
- Free HMIWorks development tool
- Supports the popular C programming language
- Supports Ladder Designer
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 70°C
- CPU Module
- CPU: 32-bit RISC CPU
- Memory Expansion: 16 MB SDRAM / 8 MB Flash
- Real Time Clock (RTC): Yes
- Buzzer: Yes
- Rotary Switch (0~9): Yes
- Communication Interface
- Serial Port: RS-485 (including Self-Tuner)
- Ethernet: Yes (RJ-45 x 1, 10/100 Base-TX)
- USB 1.1 Client: Firmware updates only
- MMI (Main Machine Interface)
- LCD: 4.3" TFT(Resolution 480 X 272 X 16), defective pixels <= 3
- Backlight Life: 20,000 hours
- Brightness: 400 cd/m2
- Touch Panel: Yes
- LED Indicator: Yes
- Reset Button: Yes
- Electrical
- Power Input Range: +10 ~ 30 Vdc or PoE (Power over Ethernet)
- Power Consumption: 2.5 W (104 mA @ 24 Vdc) or IEEE 802.3af, Class 1
- Mechanical
- Dimensions (W x L x H): 126 x 92 x 29 mm
- Installation: Wall Mount (Suitable for the European 86mm x 86mm outlet box)
- Environmental
- Operating Temperature: -20 ~ +70°C
- Storage Temperature:-30 ~ +80°C
- Ambient Relative Humidity: 10 ~ 90% RH, non-condensing

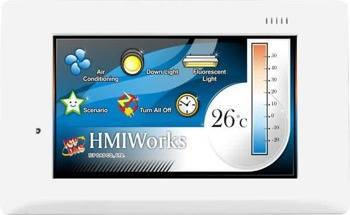

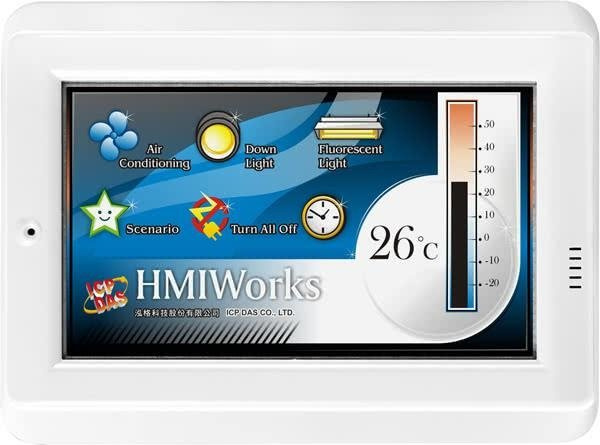

- TPD-433-EU CR – 4.3" Touch HMI device with Ethernet, RS-485, USB, RTC, Suitable for the European 86 x 86 mm Outlet Box (RoHS)
- 4PCD-001 – TouchPAD Accessory Package. Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD. Supported models: TPD-28xU series, TPD-43x series, TPD-43xF series, VPD-13x series.
- CA-USB10 – USB to 5P Mini-USB, 28AWG, 1.5 m
- 1C016 – 2.4 mm Screw driver
- MDR-60-24 CR – 24 Vdc/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
- DIN-KA52F CR – 24 Vdc/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
- LC-103 – Lighting Control Module with RS-485
