Features
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RTC (Real Time Clock)
- Multiple serial communication interfaces
- Rubber Keypad
- GUI design
- Free HMIWorks development tool
- Supports the popular C programming language
- Supports Ladder Designer
- ESD Protection: 4 kV
- Front Panel: IP65 Waterproof
- Supports XV Board
- Supports Ethernet
- Operating temperature: -20 ~ 70°C
- CPU Module
- CPU: 32-bit RISC CPU
- Memory Expansion: 16 MB SDRAM / 8 MB Flash
- Real Time Clock (RTC): Yes
- Buzzer: Yes
- Rotary Switch (0~9): Yes
- Communication Interface
- COM1: RS-485 (including Self-Tuner) +RS-232 (3-pin)
- COM2: RS-485 (including Self-Tuner)
- USB 1.1 Client: Firmware updates only
- Ethernet: RJ-45 x 1, 10/100 Base-TX
- I/O Expansion
- I/O Expansion Bus: Yes, XV-board
- MMI (Main Machine Interface)
- LCD: 3.5" TFT (Resolution 240 x 320 x 16), defective pixels <= 3
- Backlight Life: 20,000 hours
- Brightness: 270 cd/m2
- LED Indicator: Yes
- Touch Panel: Yes
- Reset Button: Yes
- Rubber Keypad: 5 keys (Programmable)
- Electrical
- Power Input Range: +12 ~ +48 Vdc
- Power Consumption: 2 W (83 mA @ 24 Vdc)
- Mechanical
- Dimensions (W x L x H): 103 x 103 x 53 mm
- Ingress Protection: Front Panel: IP65
- Installation: DIN-Rail Mounting and Panel Mounting
- Environmental
- Operating Temperature: -20 ~ +70°C
- Storage Temperature: -30 ~ +80°C
- Ambient Relative Humidity: 10 ~ 90% RH, non-condensing

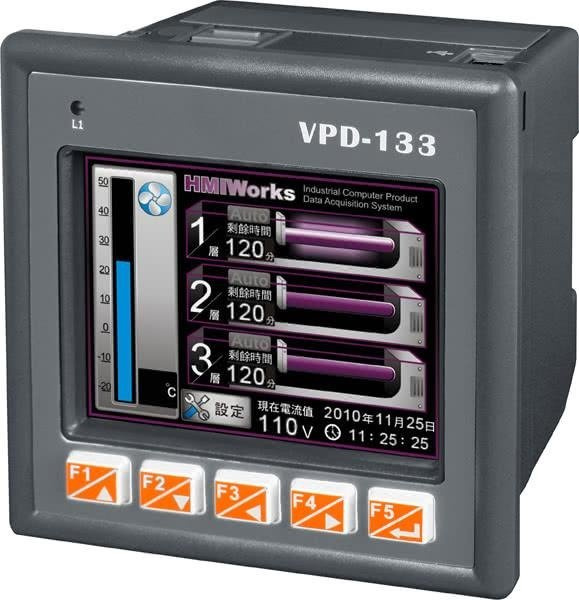

- VPD-133 CR – 3.5" Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
- CA-USB10 – USB to 5P Mini-USB, 28AWG, 1.5 m
- MDR-60-24 CR – 24 Vdc/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
- DIN-KA52F CR – 24 Vdc/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
