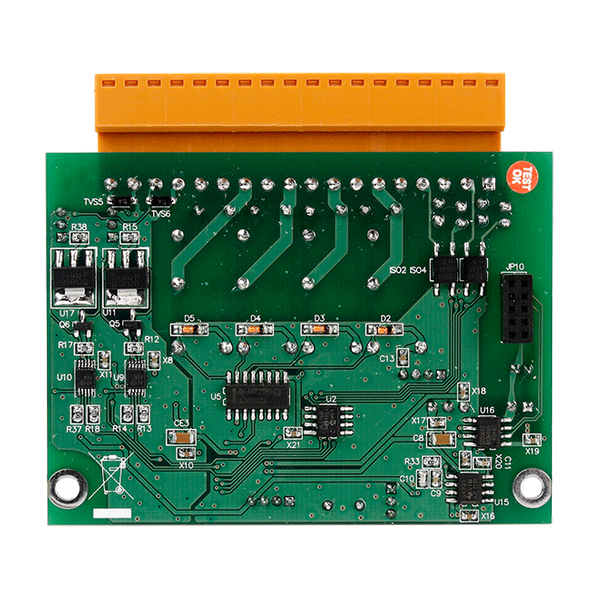

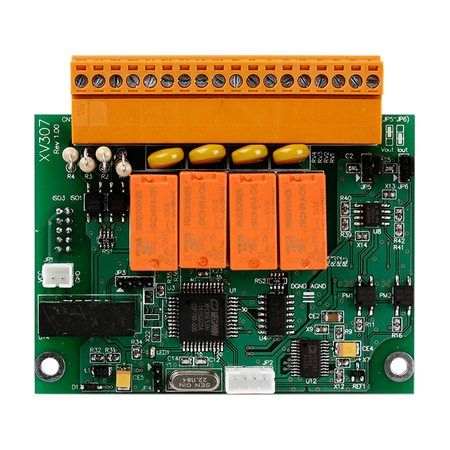

Karta rozszerzająca XV – 2 wyjścia analogowe 12-bitowe, 4 wejścia cyfrowe Wet (Sink/Source) z 32-bitowymi licznikami i 4 wyjścia przekaźników mocy
Features
- Multifunction (2 AO, 4 DI, 4 Relay)
- Individual Channel Configuration for Analog Output
- Jumper Selectable Voltage or Current Output
- Open Wire Detection for Current Output
- Configurable Power-on Value Settings
- 70 Vdc Overvoltage Protection for Digital Input
Specifications
- Analog Output
- Channels: 2
- Type: 0 ~ +5 V, ±5 V, 0 ~ +10 V, ±10 V, 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
- Resolution: 12-bit
- Accuracy: ±0.1%
- Voltage Ouput Capability 10 V @ 20 mA
- Current Load Resistance: 500 Ω
- Power-on Value: Yes
- Digital Input/Counter
- Input Channels: 4
- Type:
Dry Contact: -
Wet Contact: Sink/Source - ON Voltage Level:
Dry Contact: -
Wet Contact: +3.5 ~ +50 Vdc - OFF Voltage Level:
Dry Contact: -
Wet Contact: +1 Vdc Max. - Input Impedance: 10 KΩ, 0.5 W
- Counters:
Channels: 4
Max. Count: 32-bit (0 ~ 4, 294, 967, 285)
Max. Input Frequency: 50 Hz
Min. Pulse Width: 10 ms - Overvoltage Protection: 70 Vdc
- Relay Output
- Channels: 4
- Type: Power Form A Relay
- Contact Rating:
6 A @ 35 Vdc
6 A @ 240 Vac - Min. Contact Load: 100 mA @ ≧12 V
- Contact Material: Silver Cadmium Alloy
- Operate Time: 5 ms (typical)
- Release Time: 1 ms (typical)
- Mechanical Endurance: 30 x 10^6 ops.
- Electrical Endurance: 1 x 10^5 ops.
- Power-on Value: Yes
- Communication
- Interface: RS-232/TTL
- Format: N, 8, 1
- Baud Rate: 115200 bps
- Protocol: Modbus/RTU
- Isolation
- Intra-module Isolation, Field-to-Logic: 2000 Vdc
- EMS Protection
- ESD (IEC 61000-4-2):
±4 kV Contact for each Terminal
±8 kV Air For Random Terminal - Power
- Power from Terminal Block: 5 Vdc
- Consumption: 1.6 W Max.
- Mechanical
- Dimensions (L x W x H): 82 x 59 x 13 mm
- Environment
- Operating Temperature: -25 to +75°C
- Storage Temperature: -30 to +80°C
- Humidity: 10 to 90% RH, Non-condensing
Ordering Information
- XV307 CR – Multifunction Expansion Board (RoHS)
